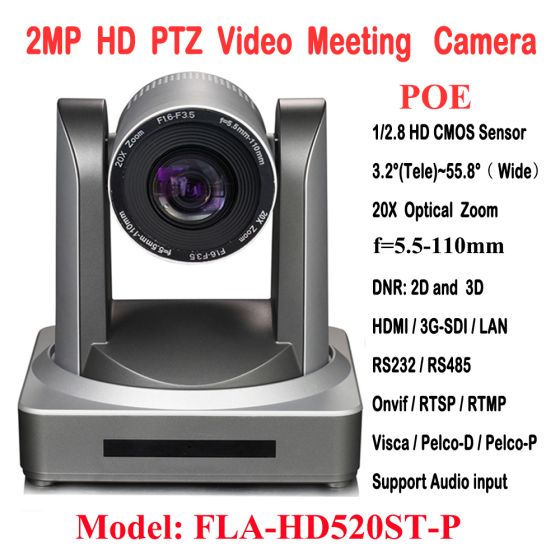

2MP 1080P60/50 PTZ IP Streaming Onvif POE Camera Visca Pelco 20X Optical Zoom Tripod with Simultaneo

SKU
32885114345
Special Price US$816.03 Regular Price US$906.70
In stock
Overview

2MP 1080P60/50 PTZ IP Streaming Onvif POE Camera Visca Pelco 20X Optical Zoom Tripod with Simultaneous HDMI and 3G-SDI Outputs ...

2MP 1080P60/50 PTZ IP Streaming Onvif POE Camera Visca Pelco 20X Optical Zoom Tripod with Simultaneous HDMI and 3G-SDI Outputs

HD520ST-P 171800822

520

3specification

Full HD, Wide View Angle, Multi-protocols,Multiple Video Interfaces

This series camera offers perfect functions, superior performance and rich interfaces.The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution,and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.



4main features

It employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 ,Multiple lens 20×Zoom



support HDMI, 3G-SDI, IP interface. (DC12V/POE Supported)



Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.



Low noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.



Support 16000, 32000, 44100, 48000 sampling frequency and support AAC, MP3, PCM audio coding.



By adopting step driving motor mechanism, camera works extremely quiet and moves smoothly.



Support H.264/H.264+ video compression



Support AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920x1080 with frame up to 60 fps and 2 channels 1920x1080 with 30 fps compression.



Support ONVIF, RTSP, RTMP protocols and RTMP push mode, easy to link streaming media server (Wowza, FMS)



Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency Command Systems.



Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.



5 technical parameter

 Model number  FLA-HD520ST-P
 Camera  Parameter
 Optical Zoom  20X   f=5.5~110mm
 Sensor  1/2.8  inch  high  quality   HD CMOS  sensor
 Effective Pixels  16: 9,    2.07 Megapixel
 1080P Video Format   1080P60/50/30/25/59.94
 1080i Video Format  1080I60/50/59.94
 720P Video  Format  720P60/50/30/25/59.94
 View Angle  3.3°(tele)--54.7°(wide)
 Aperture  F1.6--F3.5
 Digital Zoom  10X   Digital  Zoom
 Minimum Illumination  0.5Lux (F1.8, AGC ON)
 DNR  2D & 3D DNR
 White Balance  Auto / Manual / One Push / 3000K / 4000K / 5000K / 6500K
 Focus  Auto / Manual
 Aperture  Auto / Manual
 Electronic Shutter  Auto / Manual
 BLC  ON / OFF
 WDR  OFF/ Dynamic level adjustment
 Video Adjustment  brightness, color, saturation, contrast, sharpness, B/W mode
 SNR  >55dB
 Input / Output interface
 Video Interface  HDMI / 3G–SDI / LAN
 Image Code Stream  Dual streams output
 Video Compression   H.265 / H.264
 Control Signal Interface  RS-232 (Ring through RS232 output), RS485
 Control Protocol  VISCA / PELCO-D / PELCO-P
 Baud Rate  115200 / 9600 / 4800 / 2400bps
 Audio Input Interface  Dual track 3.5mm linear input
 Audio Compression   AAC / MP3 / PCM  Audio  Compression
 IP Interface  100M IP port (10/100BASE-TX); 5G WiFi  ( Optional )
 Visca  Protocol  Support VISCA protocol control through IP port.
 Network Protocol  RTSP, RTMP, ONVIF
 Power Interface  HEC3800 outlet (DC12V)
 PTZ  Parameter
 Pan Rotation  ±170°
 Tilt Rotation  -30° ~ +90°
 Pan Control Speed  0.1 ~ 60 degree /sec
 Tilt Control Speed  0.1~ 30°/sec
 Preset Speed  Pan: 60°/sec, Tilt: 30°/sec
 Preset Number  255 presets (10 presets by remote controller)
 Other Parameter
 Supply Adapter  AC110V-AC220V to DC12V/1.5A
 Input Voltage  DC12V±10% / POE
 Input Current  1A(max)
 Consumption  12W (max)
 Store Temperature  -10℃ to +60℃
 Store Humidity  20% --95%
 Working Temperature  -10℃ to +50℃
 Working Humidity  20%--80%
 Remote Operation   remote upgrade, remote reboot and remote reset
 Accessory  power supply,RS232 control cable,remoter, user manual, warranty card
 Optional Accessory  Installation Bracket
 Product Dimension  150mmX150mmX167.5mm
 Net weight  1.4kg
 Packed Dimension  270x250x240MM
 Gross Weight  4.5KG

2-MR

YOUTUBE



6 application occasions

960



7

12425103HD520ST33

9



10

125681117



User Manual0A0B0C123456789101112131415161718192021222324252627282930313233343536
