RFID UHF 4 Port Reader Station long range passive Impinj R2000 EPC 96-bit 860-960mhz TCP/IP+RS232

SKU
HY406
Special Price US$504.00 Regular Price US$560.00
In stock
Overview

4 port uhf rfid reader long range passive rfid fixed epc gen2 reader with multiple tag 840-960mhz TCP/IP RJ45/Ethernet rs232

Model Number

impinj uhf rfid long range reader

Model

S8600

Read range

3-35M

Chip

INDY Impinj R2000

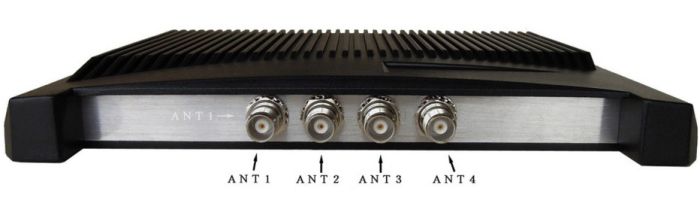

Antenna connector

4 port with 12dbi /9dbi antenna

Size

230 mm  x  160 mm  x  28 mm

Weight

1.8 KG

Shell Material

Cast aluminum

Operating temperature

- 20 °C  -  + 55  °C

Storage temperature

- 20 °C  -  + 85  °C

Humidity

< 95% ( + 25 °C)

Air Interface

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C

ISO 18000 -6B

operating frequency

860Mhz – 960Mhz









Supported regions

US, Canada and other regions following FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China

Japan

Korea

Malaysia

Taiwan

RF Connector

TNC

Channel Isolation

> 30dB

Output Power

30dBm

Output Power Precision

+/- 1dB

Output Power Flatness

+/- 0.2dB

Receive Sensitivity

< -85 dBm

Peak inventory speed

> 500 tags/sec

Tag Buffer Size

800 tags @ 96 bit EPC

Tag RSSI

Supported

Antenna Detector

Supported

Ambient Temp Monitor

Supported

Working Mode

Single/DRM



Host Communication

Ethernet: 10/100 Base-T Ethernet (RJ45)

Serial: RS-232 Console (DB9)

Serial: RS-485 (Optional)

GPIO

2 inputs, 2 outputs ,optical isolated

Power Source

+12VDC @ 2A

Power Consumption

< 6W @ 30dBm RF output

Heat Dissipation

Air cooling







2, Reader  Feature :





passive 860Mhz-960Mhz channel UHF RFID Reader



1,The best performance in RFID industry Powered by INDY Impinj R2000 chip



2,Outstanding anti-collision ability.



3,ISO 18000-6C and ISO 18000-6B compatible.



4,Excellent sensitivity.



5,Robust and refined industrial design.



6,Cast aluminum body, good heat dissipation.



7,Low power consumption.



8,Optimized firmware, highest efficiency and easy to be Integrated.



9,Multi layer electrical protection.



10,Hardware system halt detection: Run for 24hours X 365 days without system halt.



11,provide free SDK.



FCC certified UHF RFID Sports Timing System

More Information
Description

Model Number

impinj uhf rfid long range reader

Model

S8600

Read range

3-35M

Chip

INDY Impinj R2000

Antenna connector

4 port with 12dbi /9dbi antenna

Size

230 mm  x  160 mm  x  28 mm

Weight

1.8 KG

Shell Material

Cast aluminum

Operating temperature

- 20 °C  -  + 55  °C

Storage temperature

- 20 °C  -  + 85  °C

Humidity

< 95% ( + 25 °C)

Air Interface

Protocol

EPC global UHF Class 1 Gen 2 / ISO 18000-6C

ISO 18000 -6B

operating frequency

860Mhz – 960Mhz









Supported regions

US, Canada and other regions following FCC

Europe and other regions following ETSI EN 302 208 with & without LBT regulations

Mainland China

Japan

Korea

Malaysia

Taiwan

RF Connector

TNC

Channel Isolation

> 30dB

Output Power

30dBm

Output Power Precision

+/- 1dB

Output Power Flatness

+/- 0.2dB

Receive Sensitivity

< -85 dBm

Peak inventory speed

> 500 tags/sec

Tag Buffer Size

800 tags @ 96 bit EPC

Tag RSSI

Supported

Antenna Detector

Supported

Ambient Temp Monitor

Supported

Working Mode

Single/DRM



Host Communication

Ethernet: 10/100 Base-T Ethernet (RJ45)

Serial: RS-232 Console (DB9)

Serial: RS-485 (Optional)

GPIO

2 inputs, 2 outputs ,optical isolated

Power Source

+12VDC @ 2A

Power Consumption

< 6W @ 30dBm RF output

Heat Dissipation

Air cooling







2, Reader  Feature :





passive 860Mhz-960Mhz channel UHF RFID Reader



1,The best performance in RFID industry Powered by INDY Impinj R2000 chip



2,Outstanding anti-collision ability.



3,ISO 18000-6C and ISO 18000-6B compatible.



4,Excellent sensitivity.



5,Robust and refined industrial design.



6,Cast aluminum body, good heat dissipation.



7,Low power consumption.



8,Optimized firmware, highest efficiency and easy to be Integrated.



9,Multi layer electrical protection.



10,Hardware system halt detection: Run for 24hours X 365 days without system halt.



11,provide free SDK.



FCC certified UHF RFID Sports Timing System
