CHAFON RFID UHF 8dBi RFID Circular polarization Antenna 865~868Mhz/ 902~928Mhz for sports timing system

Product Description
Performance Specifications
Model number
CF-RA8001
Frequency
  860~868MHz (EUR standard)/902~928MHz (US standard)
Gain
8dbi
Polarization
HCP
Half-power beam width(°)
Hor: 65  Vert:65
V.S.W.R
≤1.4
Front-to-back ratio(dB)
≥20
Maximum input power(W)
100W
Impedance
50 Ω
Lightning protection way
DC Ground
Mechanical specification
Cable Connector
TNC-male(default)

Antenna Connector
N-female
Connector position
Bottom
Size(mm)
260*260*35mm
Antenna weight(kg)
1.2
Packing weight(kg)
1.35
Wind loading area(㎡)
≤0.2
Rated wind velocity(m/s)
60
Radome material
ABS
Reflector material
Aluminum
Antenna color
White
Operating temperature(℃)
-40~+70
Mounting hardware(mm)
Ф40~50
Detailed Images

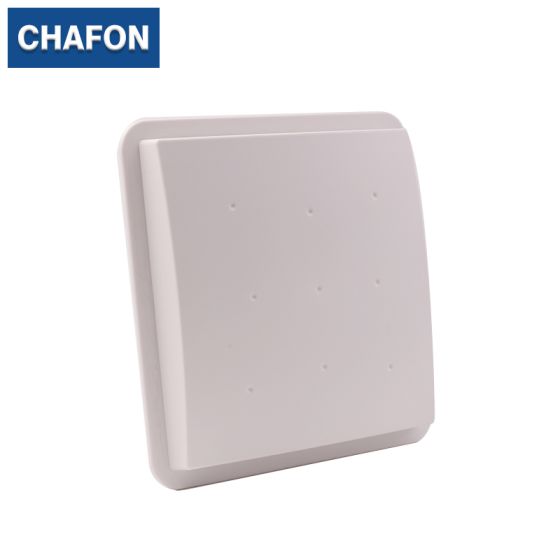

This antenna is with 8dbi gain and circular polarization, made of ABS material, the accessories include foothold and cable,

standard cable length is 3m.We default cable connector is TNC Male connector,if you need other connector,please leave message to us.



902-928 MHz circular 7dBi gain rfid uhf reader antenna (7)

Application

This antenna can connect with the UHF fixed reader, can be used at different kinds sports timing system, such as running race,bicycle race etc.

Related Products



Packing

1pc/carton, carton size is 32*31*12cm, the gross weight is 1.8kg
