RFID Guard Tour Patrol System Torch IP67 Waterproof USB Rugged Free Software
RFID Guard Tour Patrol System Torch IP67 Waterproof USB Rugged Free Software

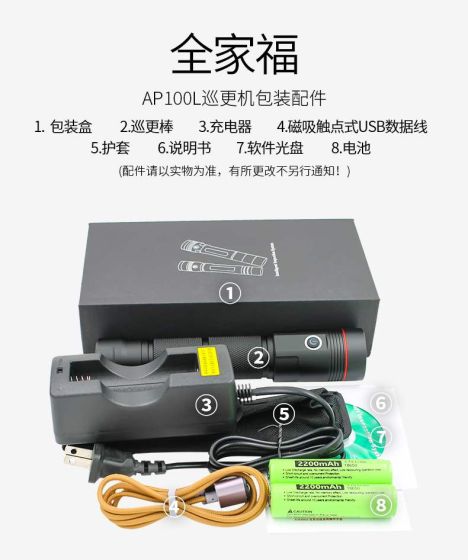

This order :
1X patrol rod(include battery)
1Xusb cable
10X 125KHZ checkpoint
I. Introduction
USB communication dedicated line , patrolling points and software components. Patrol point there is an import lasered 8 hexadecimal encoding information sensing points, each sensing point numbers globally unique. Patrols will be encoded with different points placed at the sensing point inspection equipment or lines , and the coding and the corresponding place in the computer set up . Patrol officers wore patrol stick , stick in the inspection process using patrol near Patrol Point 5-10CM. Vibration and light tips when working , will read the time and place of rods stored in the patrol , officers will patrol the stick into the newsletter dedicated data lines connected to the computer through the computer application software will patrol inspection data stick into the computer archive . Readily available to managers for analysis, processing , statistics, production reports, giving managers a scientific and accurate assessment basis .
Second, the system equipment performance profile
Technical parameters:
Waterproof drop, military grade hard anodized aluminu,
Fully automatic non-contact inductive read point reaction speed RFID 125KHz reader < 0.1 seconds , the reading distance 3-5CM
Key adjust the lighting , sub- strong, medium , SOS distress signal ( also available as flash explosion proof )
Storage record 30,000 , reaching 29,000 flash when prompted
3.6V 18650 high-capacity rechargeable lithium battery, low power consumption
USB direct communication , without cradle
The maximum continuous lighting time 30 hours ( low light ) , the lighting level is low point still sequential read 6000 times
Reader mode : non-contact
Communication : USB
Store records : 30,000
Induction distance : 0 ~ 6cm, no blind spots
Power supply: 3.6V rechargeable lithium battery ( 18650 )
Size : L170 × 29mm
Weight : 180g
Description |
This order :
|
---|---|
SKU | AP100LBR |
Weight | 1.000000 |
selling_potential | 3 |
With Built-in Battery | Yes |
Condition | New |
