Details

Description:

This guard tour reader is with rugged design for the most demanding environments. The metal body and moulded silicone cover case, which protect the internal against various kinds of damages so as to secure the data collected for critical operation.It is also waterproof.

In capacity, it accomodates a maximum of 60000 reads before memory full. It works with the standard RFID EM tag using frequency 12.5KHz. It is a touch-less kind of state-of-art device, tags are automatically read within a reading range. Data is easily downloaded to computer via USB cable bundled. A FREE management software with versatile reporting facilities is bundled.

Features:

Alloy body, moulded with silicone skin cover
Auto-sense, non-contacting reading, no button
Completely water proof
Sabotage absorbent, resistant to electrical shock
Download via USB cable with driver CP2102
Storage capacity 16Mb Flash, 60000 records
Read RFID EM 4100 and compatible tag
Reading distance <=5 cm
Real time internal clock
Low power consumption and long battery life, 270 000 continuous reads

Technical Information:

Physical	Alloy Body, moulded with silicone skin cover, Waterproof, Sabotage absorbent and resistant to electrical shock.

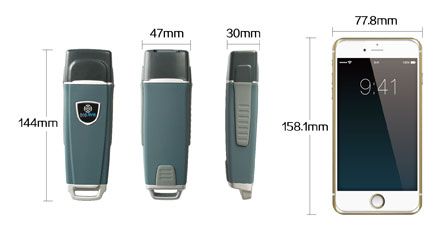

Dimensions	144mm x 47mm x 30mm
Working Frequency	EM 4100 compatible card at 125KHz
Operating Temperature	-45 to +85C
Humidity	10% to 98% non-condensing
Memory	4Mb Flash ROM
Storage Capacity	60000 pieces records
Battery	3.0 V lithium battery, 1200mAh (built-in)
Signal Card Detection	Auto induction card-reading
Card Reading Distance	3cm-5cm
Communication	USB cable, 57600 BPS, 4000 records per minute
Weight	196g

Package:

Reader x 1
USB cable x 1
RFID tags (samples for trial) x 4
Software x 1 ( download from website )
Power Adapter for re-charging x 1

Usage:

1. The patrolling guard takes the reader and read his own Guard ID to identify himself with the system
2. Then the guards go to the checkpoints, the Reader will automatically read each EM signal card and no need touch it. When reading successfully, a flash of the red indicator light accompanied by a "beep" means that a reading has been made. The WM5VP will store the signal card's ID number and time for every station reading.
3. After patrolling are done, use the USB port cable to connect the computer and the Reader directly and have a data analysis and management.

4. Software bundled for free. Administrator password is 999, Operator password is 123. You can modify them.
