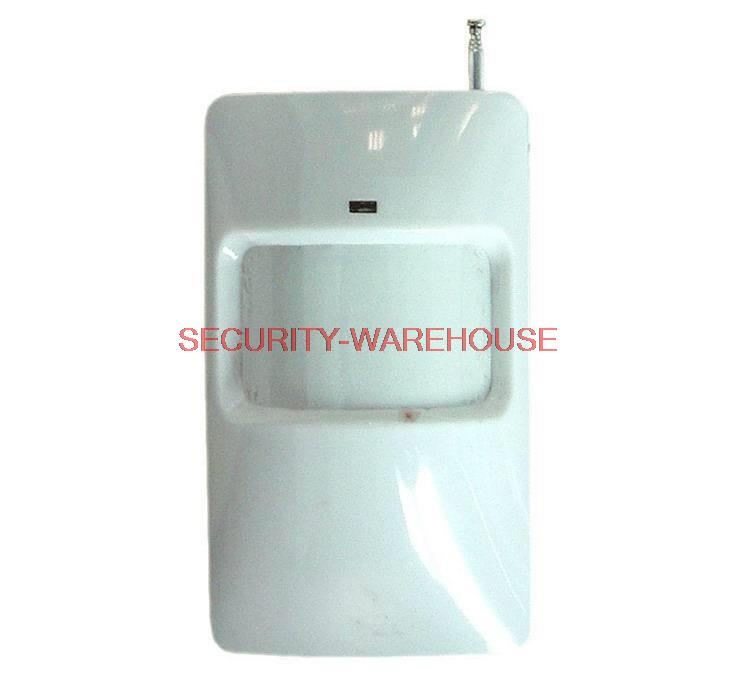

Cheetah fixed code 2262 wireless wide-angle infrared detectors IR alarm alarm jumper cap IR
This product has no valid combination.
- This product is a cheetah in the 315 frequency infrared wife
- Type: Wide-angle infrared
- Operation mode : passive
- Installed by Location : Indoor
The code ( plug -hop cap ) corresponds to the description and specific needs within the original accessory kit ( Another of the infrared frequency is also applicable to other 315 hosts )
Used to detect the warning area within the three-dimensional effective illegal body signals.When installed, the base is fixed with screws to the wall , turn on the switch , then the detector can work properly. The detectors are generally intelligent memory function, enter the zone alarm is triggered ,Recommended mounting height between 2-3 meters;
1Technical indicators
Detection range: 110 ° conical angle of the line , the detection distance 6-8 meters ( ambient temperature of 20 °)
Working environment: temperature -20 ° -55 °, humidity less than 95%
Battery working time: more than 5000 hours of continuous
Battery Type : 9V
Boot delay time: less than 120 seconds
Induction time: less than 0.7 seconds
Work mode: continuous
Weight : 102g
Size : 115mm × 65mm × 48mm
2 phenomenon indicates
* When the ambient temperature is higher than 32 °, the detector sensitivity is lower.
* Body perpendicular to the probe movesMovement detector sensitivity will be lower than the level of the body .
