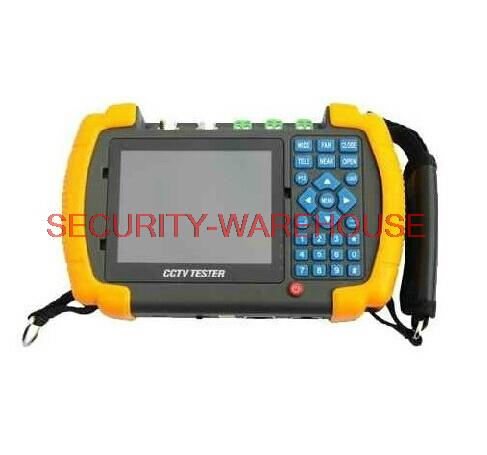

CT700 Series video monitor tester is essential to monitor the project site installation engineer debugging tools , widely used in video surveillance project installation and maintenance, ball machine test , camera test , PTZ PTZ protocol control , video transmission line testing and network cable testing.
CT700Series has a 3.5 inch high-definition big screen , beautiful design, user-friendly interface , graphical menus , digital touch of a button . A machine in hand, complex monitoring system installation and maintenance work will become easy and efficient !
1 Product Features
? English user interface, graphical menus , simple and beautiful
? 3.5Inch TFT-LCD screen , DPI 960 * 240
? Video format PAL / NTSC adaptive
? Support video signal amplitude test
? Image generator , sending a variety of standard color graphics section
? Support address scanning, quickly find RS485 communication address
? Continued support PTZ turn test, the test is normal continuous rotation pan
? Supports baud recognition feature , you can identify 1200-9600 baud
? PTZCapture and display control protocol code
? Support Pelco-D, Pelco-P, SAMSUNG and other control protocols
? Support RS232 and RS485 interface , adjustable rate 1200-19200bps
? Support network cable test function
? Support for audio testing, testing the front audio signal pickup
? DC 12V / 500MAPower output to provide temporary power to the front of the camera
? Battery power real-time graphics display , simple and intuitive
? Standard Mini USB charging port
? Low power consumption, sustainable working hours on a single charge12More hours
? Large-capacity 18650 lithium-ion battery , the battery can be replaced
The main technical parameters
| Product Type |
|
| A ball machine test |
|
| Communication Interface |
Can support RS232 / RS485 bus |
| Communication protocol |
Compatible with Pelco-D / P, Samsung, Yaan other protocols |
| Baud Rate |
1200, 2400,4800,9600,19200bps |
| Second, the video test |
|
| Display |
3.5Inch digital LCD color screen with a resolution of 960 x 240 |
| Video format |
PAL / NTSCAdaptive |
| Video signal |
1.0Vpp |
| Video Input / Output |
1BNC inputs , 1 channel BNC output |
| Video signal measurement |
Measuring the amplitude of the video signal level |
| Audio Test |
Whether one audio signal input , test sound normal |
| Image Generator |
By OUT port , send PAL / NTSC multi-format color graphics of video test signals |
| Third, the data test |
|
| Protocol code capture |
Can receive , display RS485 control equipment issued / RS232 protocol code data |
| Protocol identification |
Recognizable standard protocol, address , baud rate (1200-9600bps) |
| Four , cable testing |
|
| Cable test |
Test any two lines or two lines or more network cables and display cable connection sequence and number |
| Five , 12V power output |
|
| Power Output |
Output DC12V DC voltage power supply for the camera to provide temporary work |
| Six , power supply |
|
| Charging Power |
DC 5V / 1A, The standard Mini USB charging port |
| Battery powered |
Built-in 3.7V lithium battery , the capacity 4400mAH, can be replaced |
| Charging |
Charging 4-6 hours on a single charge can be completed more than 12 hours of normal use |
| Power-saving features |
Low power consumption, automatic standby power-saving features , the battery level icon is displayed in real time |
| Seven , system settings |
|
| Language Settings |
Chinese / English OSD menu , optional |
| Auto Standby |
3-30Min |
| Keyboard sound |
On / Off |
| Eight , the working environment |
|
| Operating Temperature |
-10°--- + 50 ° |
| Humidity |
30% -90 % |
| Dimensions |
166mm×106mm×40mm |
| Total Quality |
320G |
