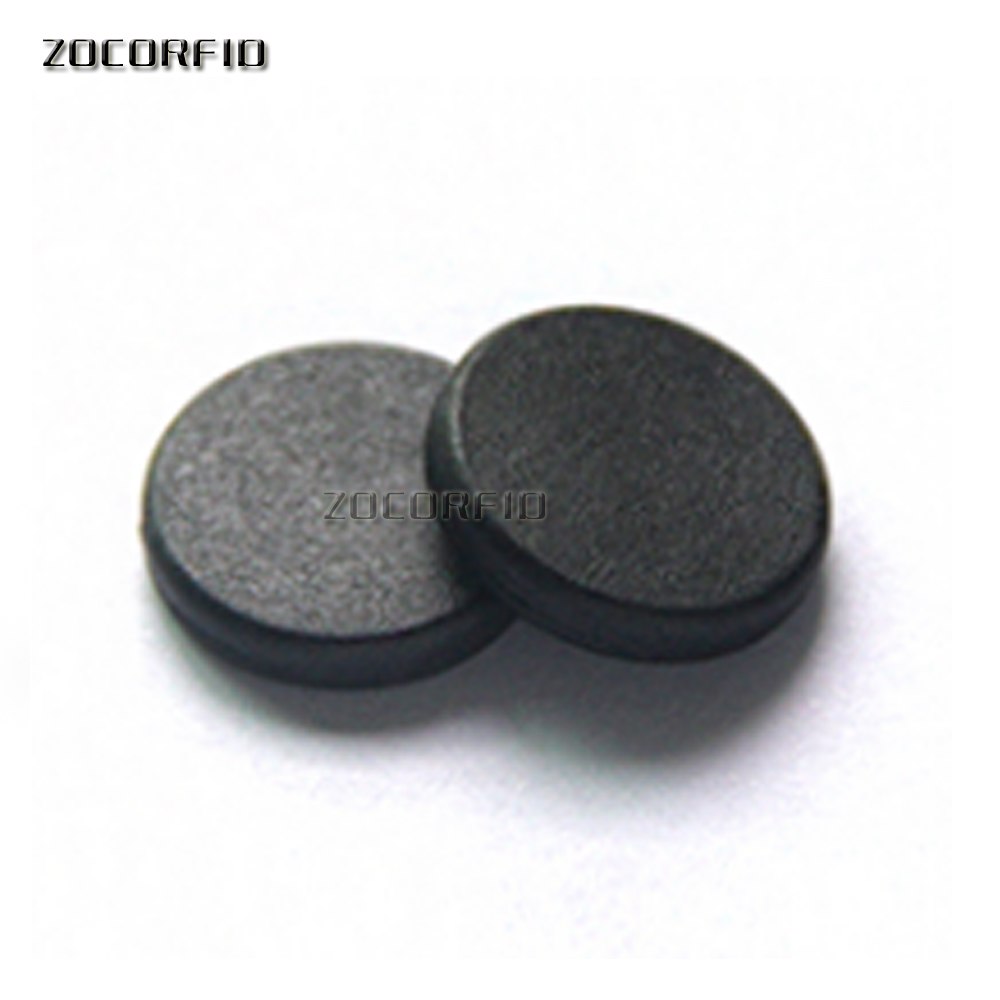

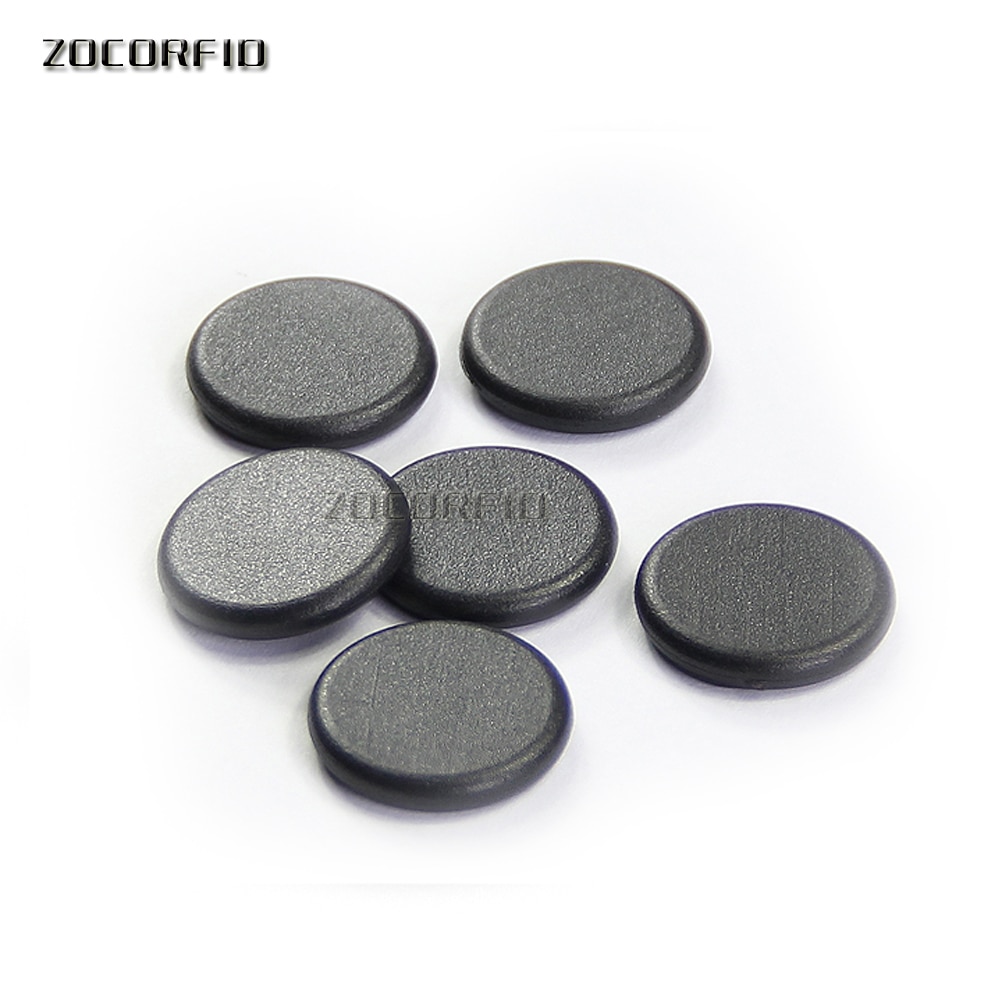

Free shipping 100pcs 125KHZ EM4305 / T5577 RFID laundry tags, RFID high temperature electronic

This order:

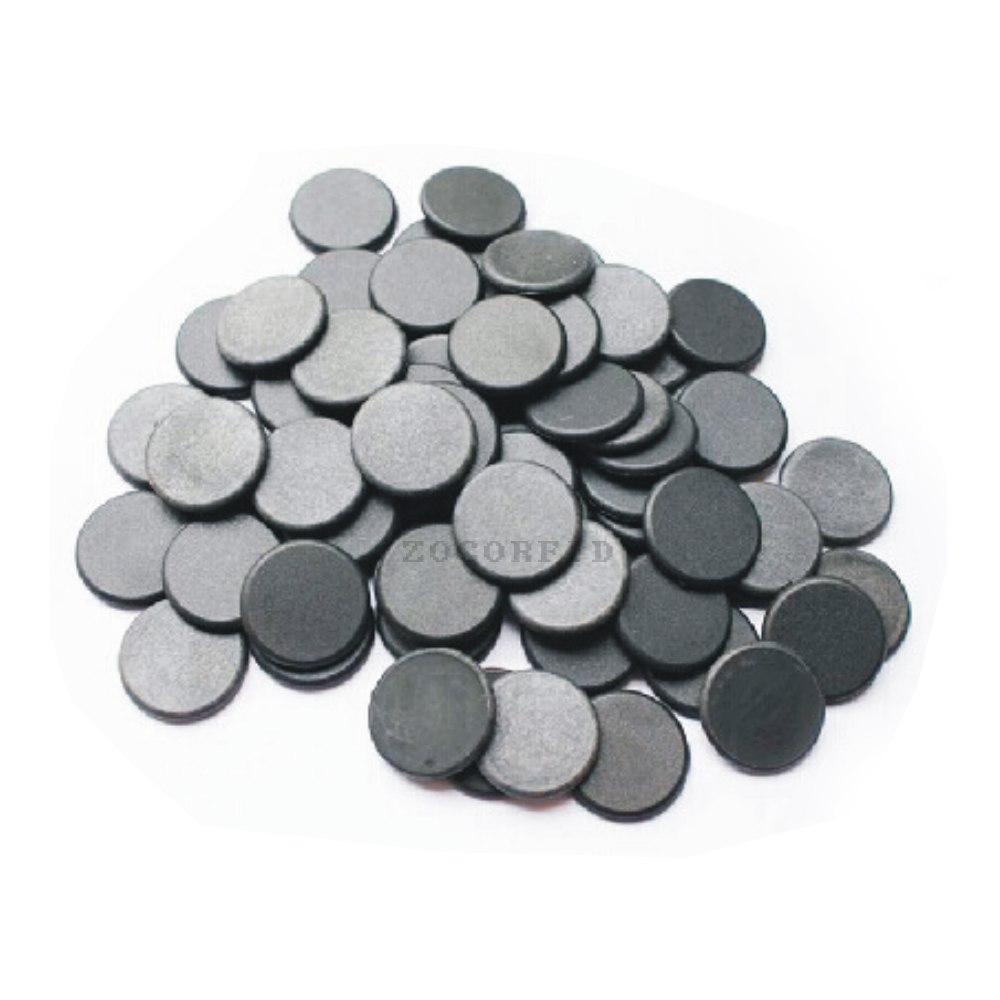

100pcs 125KHZ EM4305 chips (this chip can write)

Do you have writer. if need:19USD

Detailed Description

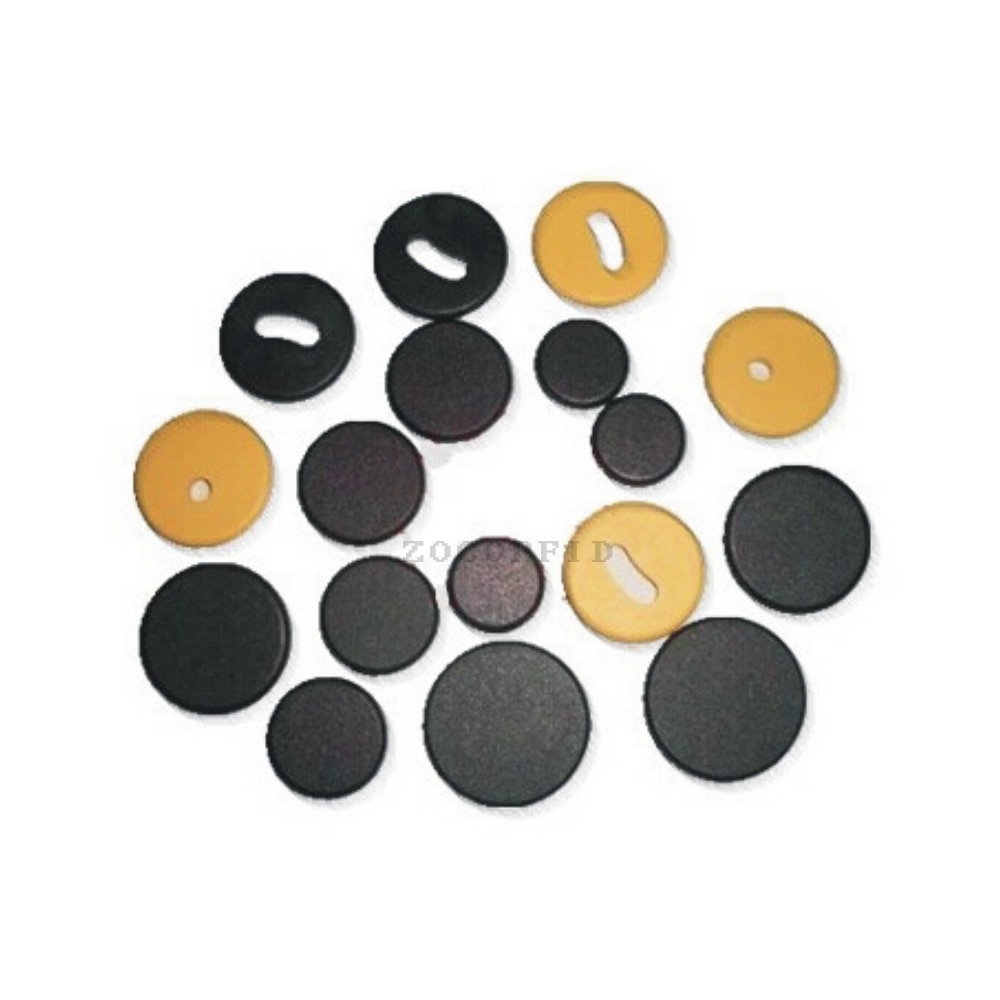

Specifications: ¢ 13,18,20,22,24,26,28 mm
Reading time: 0.01ms
Applications: clothing management, personnel management.
Chip: TK4100, EM4100, TK4100, EM4305 / HITAG-S256 / T5577 / I-Code SLI / M1 S50, Alien H2 / Alien H3 / Impinj M2 / Impinj M3 / NXP XL /

NXP XM / NXP HSL
Read-write type: Read-only card, read and write cards
Storage capacity: 96bit/256bit/512bit/1024bit/2048bits
Carrier Frequency: 125Khz/134.2Khz/13.56Mhz840-960Mhz
Endurance: 100000
Power supply: passive card
Packaging materials: PPS-retardant material
Sensing distance: 2-200cm
Specifications Description:
High temperature resistant clothing labels
Support Agreement
Frequency: 13.56 MHz ± 300 kHz
Read / write magnetic field strength: 112 dBμA / m / 115 dBμA / m
Maximum number of uses:> 100,000 times
Useful life:> 10 years
Weight: 1.6 ± 0.3 grams
Material: PPS, black (can be customized)
Protection class: IP 68
Operating Temperature: -25 ° C to +180 ° C
Storage Temperature: -25 ° C to +90 ° C
+220 ° C 50 hours
+260 ° C 30 seconds
Vibration: ISO / IEC 68.2.6, endurance sweep (10 g, 10 .. 2000 Hz, 3 axis, 2.5 h)
Mechanical Shock: ISO / IEC 68.2.27 (100g, 6ms, 6 axis, 20 times per axis)
Mechanical stability: axial / radial compression strength: 1000N / 500N (10 seconds, static).
Isostatic water pressure: 45 bar (10 hours)
Wash cycle: 200
Chemical resistance: Typical chemicals used in laundry and dry cleaning process
