ZK SF101 Metal Casing Fingerprint Biometric RFID Access Control System Fingerprint Reader USB Client
ZK SF101 Metal Casing Fingerprint Biometric RFID Access Control System Fingerprint Reader USB Client Door Access Controller ...
Introduction:
SF101 is a fingerprint reader produced by ZK Software specifically for Access Control .Its remarkable advantage is that it can match with most of the access controllers on the market ,inland or abroad, SF101 supports Wiegand 26-64 output ,and integrates special access control software which can be upload, download, delete and wiegand products ,all input /output are using anti-jamming protection and over-voltage/circuit protection. The product experiences the strict degradation test before leaving factory to guarantee the high stability.
Specifications:
|
Fingerprint Capacity |
200 Templates |
|
Card Capacity |
500 |
|
Transaction Capacity |
30,000 Transactions |
|
Sensor |
ZK Optical Sensor |
|
Algorithm Version |
ZK Finger VX9.0 |
|
Communication |
RS232/485, USB-host |
|
Access Control Interface |
Access control door sensor, alarm, lock, exit button, wired bell |
|
Wiegand Signal |
Wiegand output 26bit |
| Led |
Red, Green, Blue |
| Power supply | DC12V |
|
Size |
120*120*35mm (W*H*D) |

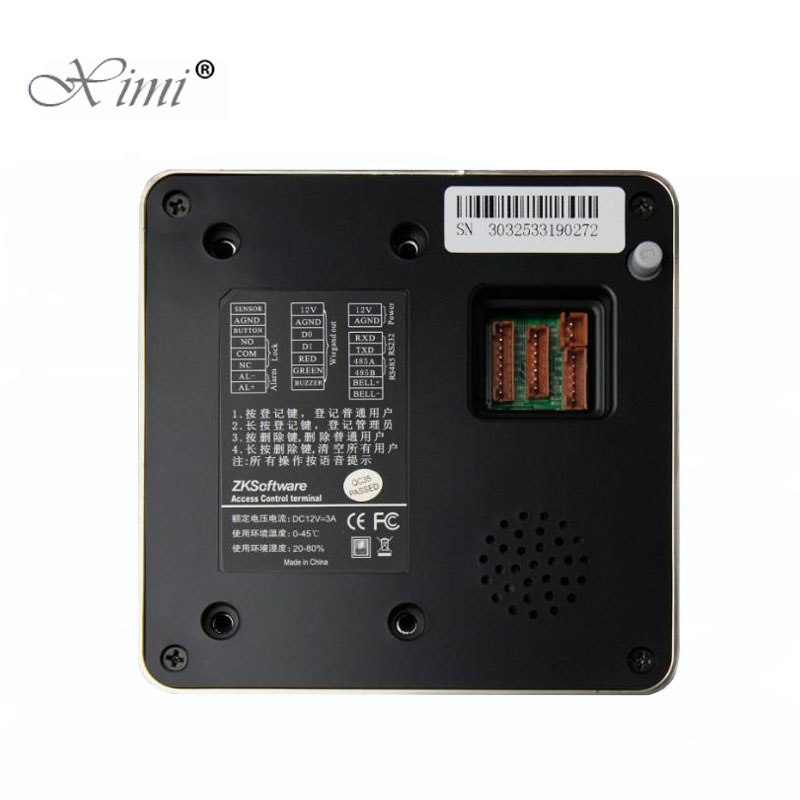

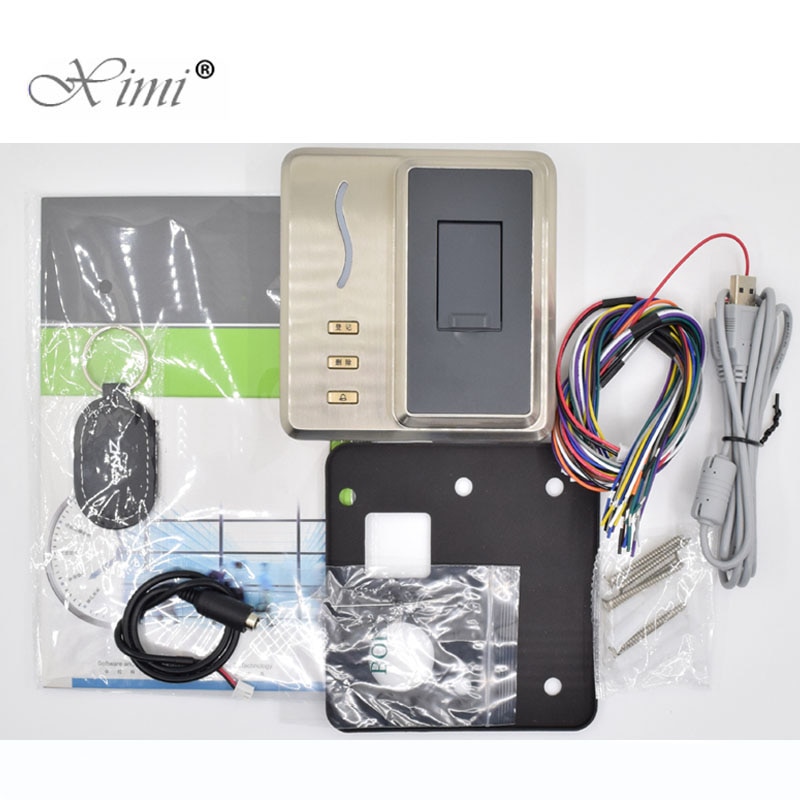

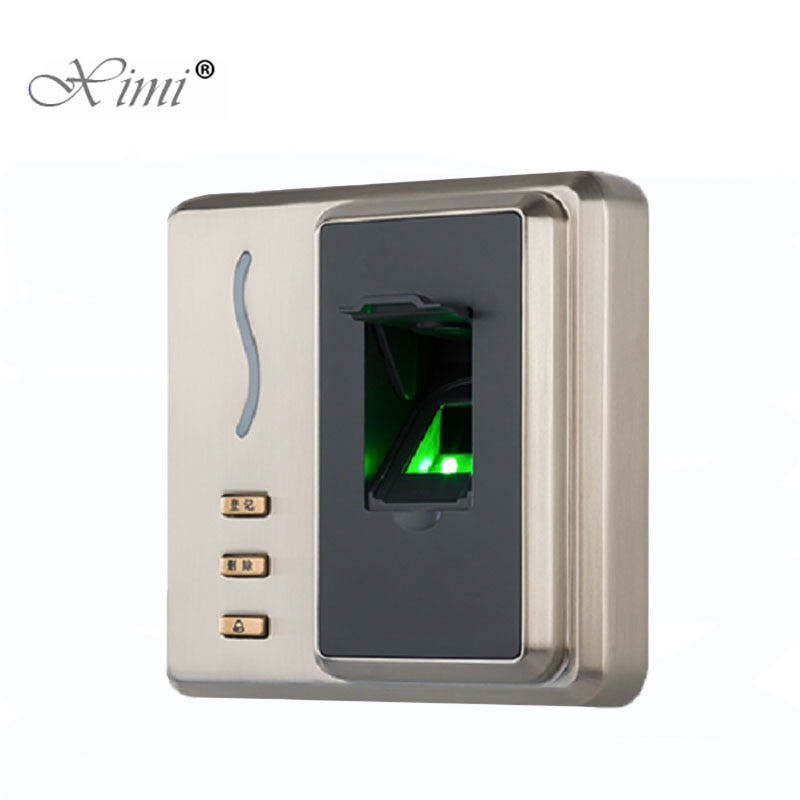

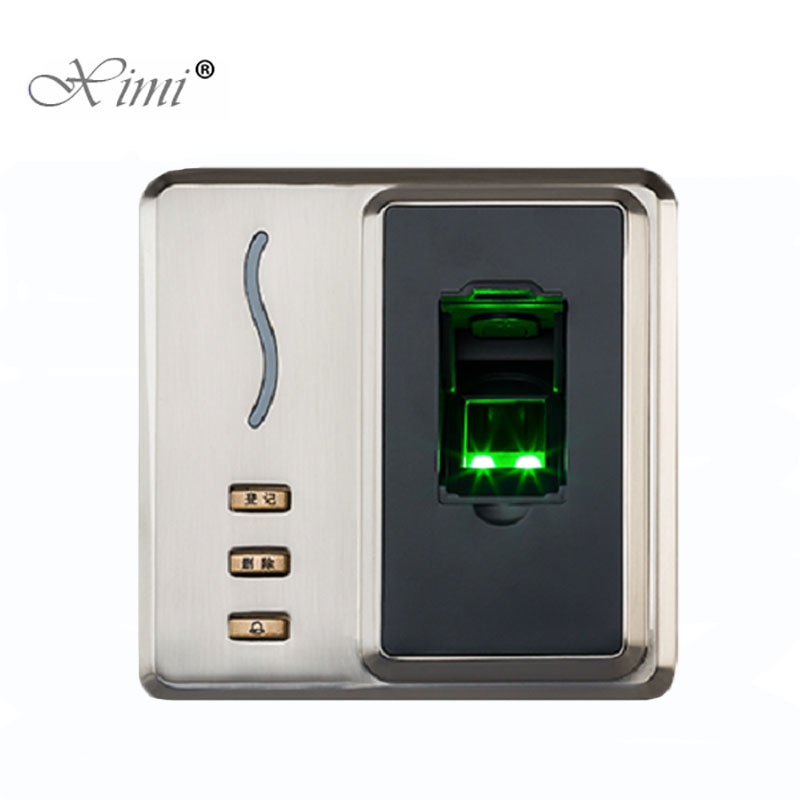

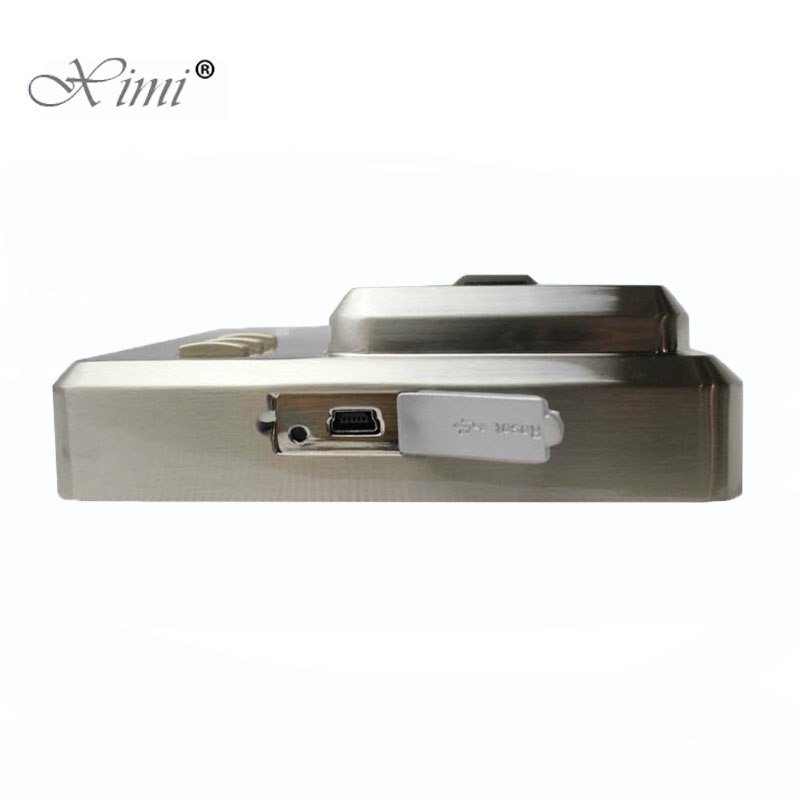

Image:
