2015 GEN 2 UHF Passive RFID Tags for Pigs/Dogs/Sheeps Animal tracking and management
Overview

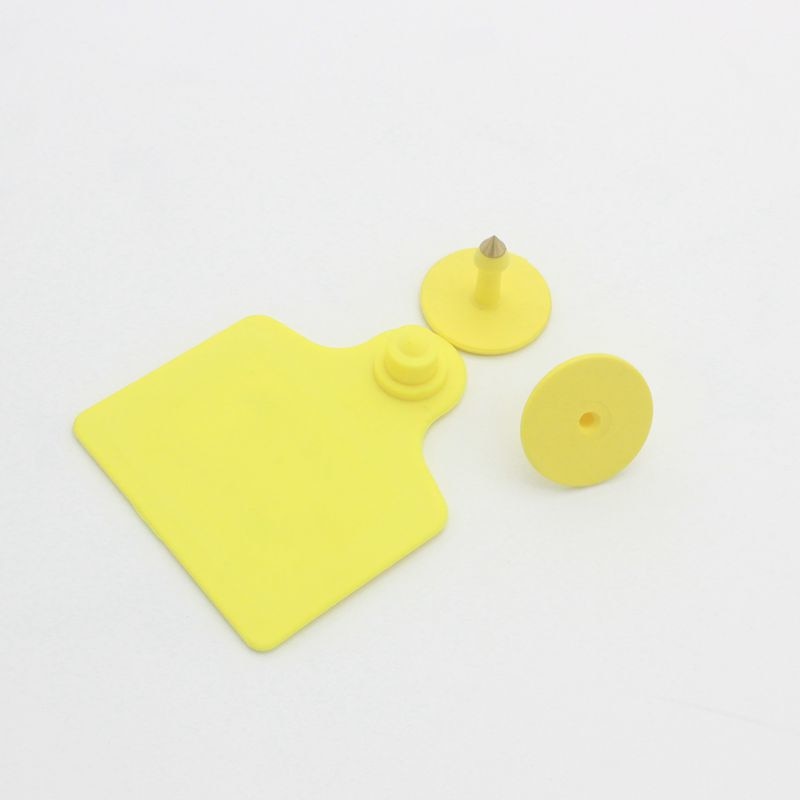

UHF Ear Tag(RS-TA02) is designed for livestock management which is effective to keep tracking of livestock, such as dogs and pigs.
It helps ranchers to manage their pigs easily and time-saving, not only on counting pig numbers, but also record their vaccine, growth, weight and so on.
The intelligent technology will be used widely in the near future.
Main Features
-Compatibility: ISO18000-6C(EPC Class 1 Gen 2) protocol;
-Frequency Band: 860-960Mhz;
-Chipset: Alien Higgs 3;
-Read Range: 1-7m depends on reader and environment;
-Material: PU+AL, soft, environmental friendly and non-toxic;
-Size: 30*20mm, 30*20mm;
Applications
-Livestock animal identification
-Sheep, pits and dog’s tracking
Specifications
|
Model No. |
RS-TA02 |
|
Type |
UHF Ear Tag |
|
Working frequency |
Global 860-960Mhz |
|
Support protocol |
ISO18000-6C/EPC Class 1 Gen2 |
|
Read &Write distance |
1-7m depends on reader and environment; |
|
Memory |
96 bits/ 512 bits |
|
Data retention |
10years |
|
Programming cycles |
Anti-collision algorithm,10,0000 times for repeated delete/write |
|
Unit size |
30mmx20mm, 30mm*20mm |
|
Net weight |
5g |
|
Operating temperature |
-20 ~ +80°C |
|
Humidity |
5%~95%(non-condensing) |
|
Material |
PU+AL |
Customized Printable, Colors optional
