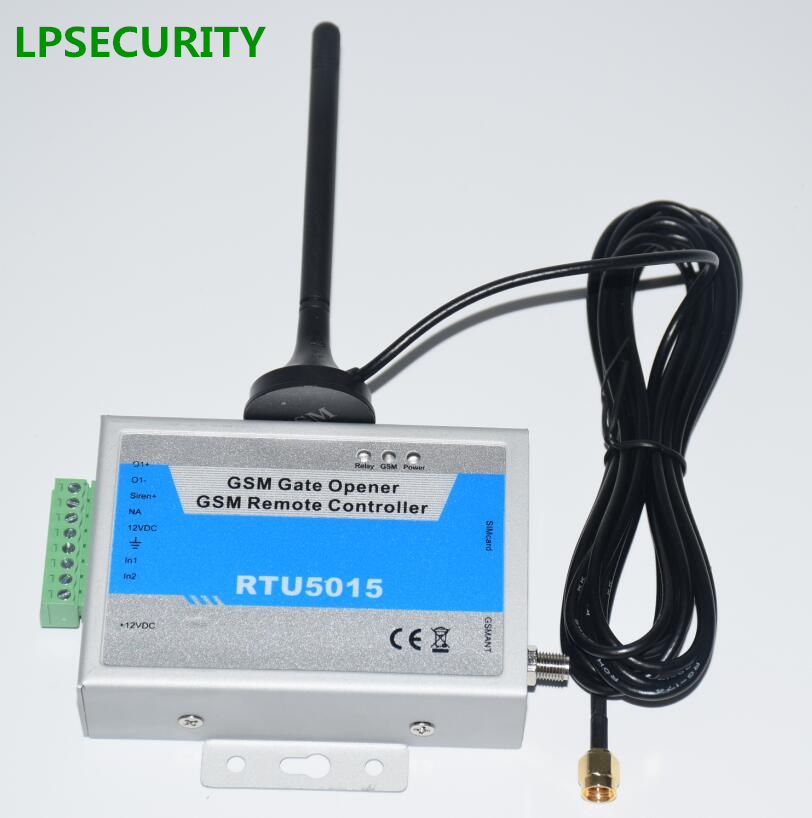

LPSECURITY RTU5015 GSM Gate Door Opener Relay Switch Remote Access Control gate Opener By Free Call
LPSECURITY RTU5015 GSM Gate Door Opener Relay Switch Remote Access Control gate Opener By Free Call App support(no adapter)...
|
Parameter item |
Reference scope |
|
GSM Frequency |
Dual-Band, GSM900/1800, GSM850/1900 |
|
Digital Input |
2, NC/NO, Dry Contact |
|
Relay Output |
Dry Contact,240VAC/3A, Switch ON/OFF by Phone Call |
|
Siren Output |
+12V,Wire Siren(*Optional) |
|
Authorized User |
Up to 64 Phone Numbers *Customization for more. |
|
DC Power supply |
Standard adapter: DC12V/1A |
|
Power consumption |
12V input Max. 50mA/Average 50mA |
|
SIM Card |
Supporting 3V SIM Card |
|
GSM Antenna |
50 Ω SMA Antenna interface |
|
Temperature Range |
-20-+60 °C |
|
Humidity range |
Relative humidity 90% (condensation free) |
|
Relay Rating |
3A/240VAC |
|
Exterior dimension |
110mm*90mm*40mm |
|
Net Weight |
600 g |
