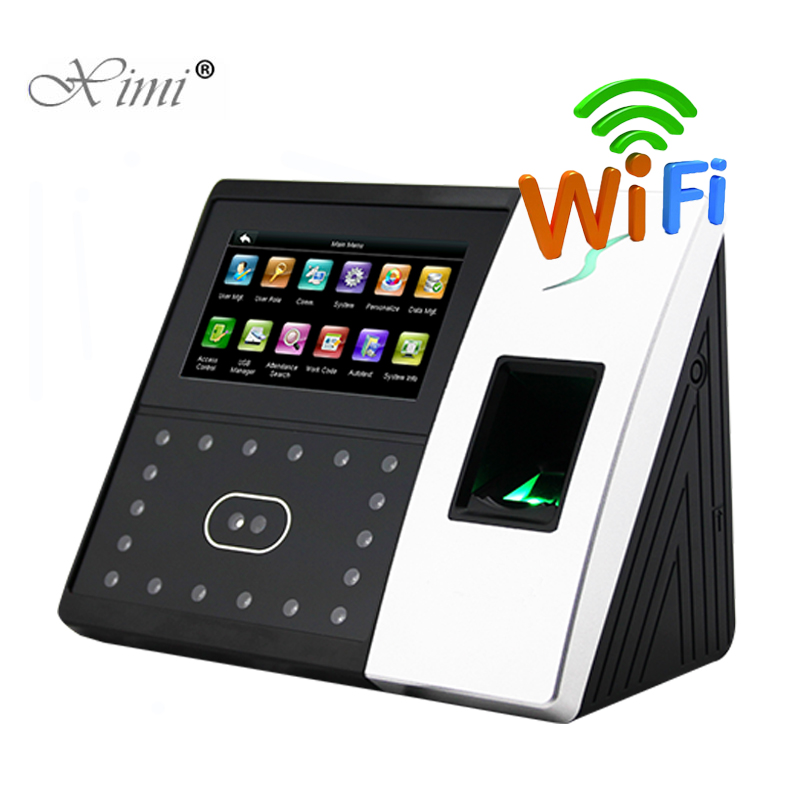

ZK IFACE702 Face And Fingerprint Time Attendance Door Access Control System WIFI TCP/IP

https://www.security-warehouse.com/web/image/product.template/19028/image_1920?unique=c9b0b1d

ZK IFACE702 Face And Fingerprint Time Attendance Door Access Control System WIFI TCP/IP 500 Facial Access Control Time Recorder...

$ 165.12 165.12 HKD $ 165.12

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Introduction:

iFace702 multi-biometric identification time attendance and access control terminal adopts ZK latest ZMM220 platform with ZK Face 7.0 algorithm and large capacity memory. iFace series integrated 630MHz high speed ZK Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of iFace are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP,WIFI, optional GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.




Features:

Identification methods include Face, Fingerprint/RFID and/or Password
Elegant ergonomic design
4.3 TFT touch screen is user-friendly and very intuitive
6 user-defined function keys
Contact relays for door access control (wires to door strike or 3rd party panel)
Web-server management software via IE browser
Optional extendable scheduled-bell
Infra-red optical system enables user-identification in poorly lit environments
Optional built-in battery backup provides approx 4 hours continuous operation.
Optional built-in GPRS for wireless communication
Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell.
Wiegand Output for connections to 3rd party access control panels.




Specification:

CPU

Multi-Bio CPU 630 MHz

Memory

256M Flash, 64M SDRAM

Hardware Platform

ZMM220 Multi-Medium Development Platform

Fingerprint Sensor

Optical Fingerprint Sensor without film

Camera

High Resolution Infrared Camera

Display

4.3 TFT touch screen

Face capacity

500 (1:N)

Fingerprint capacity

2000

Card capacity

10,000(Optional)

Logs capacity

100,000

Algorithm Version

Face 7.0 & Finger 10.0

2000mAh backup battery

Optional

Communication

TCP/IP,RS232/485

USB-HOST

USB-Host

Wireless Wi-Fi

Standard

Time attendance Standard functions

Automatic Status Switch, Self-Service Query, Work Code, T9 input, 9 digit user ID, DLST

Access control interfaces for

3rd party electric lock, door sensor, exit button

Wiegand Signal

Output

Optional functions

serial printer, RFID card, Mifare card, Extendable Scheduled-bell, Short Massage, Web-server, GPRS

Power supply

12V3A

Verification Speed

2 sec

Operating temp

0C- 45 C

Operating Humidity

20%-80%

Dimension

193*165*112.5 mm (Length*Width*Thickness)

Gross Weight

1.9 kg





Image:

T1T5T6T4T9T8ZKtime5.0 Show
