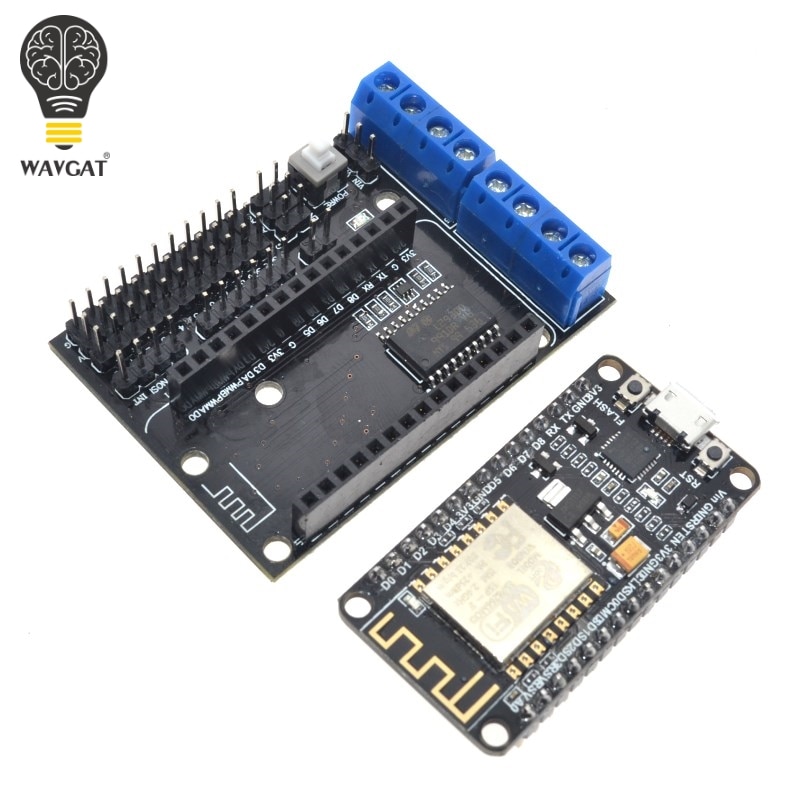

Node MCU Development Kit NodeMCU + Motor Shield Esp Wifi Esp8266 Esp-12e diy rc toy remote control
Node MCU Development Kit NodeMCU + Motor Shield Esp Wifi Esp8266 Esp-12e diy rc toy remote control Lua IoT smart car Esp12e...

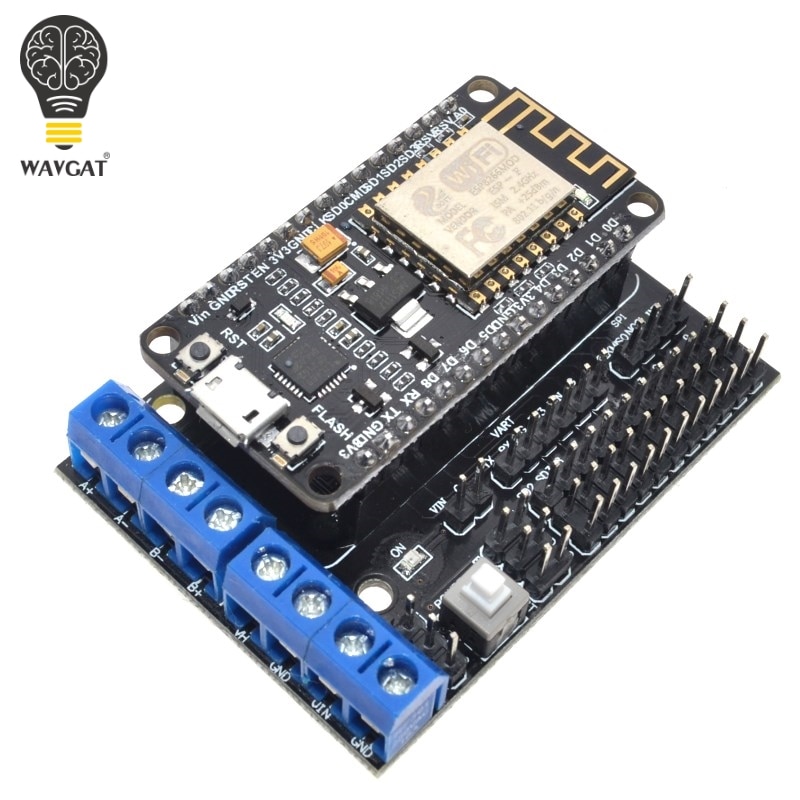

- Based on ESP-12E development kit, it can facilitate the development of WiFi Smart car, free to send Android phone source.

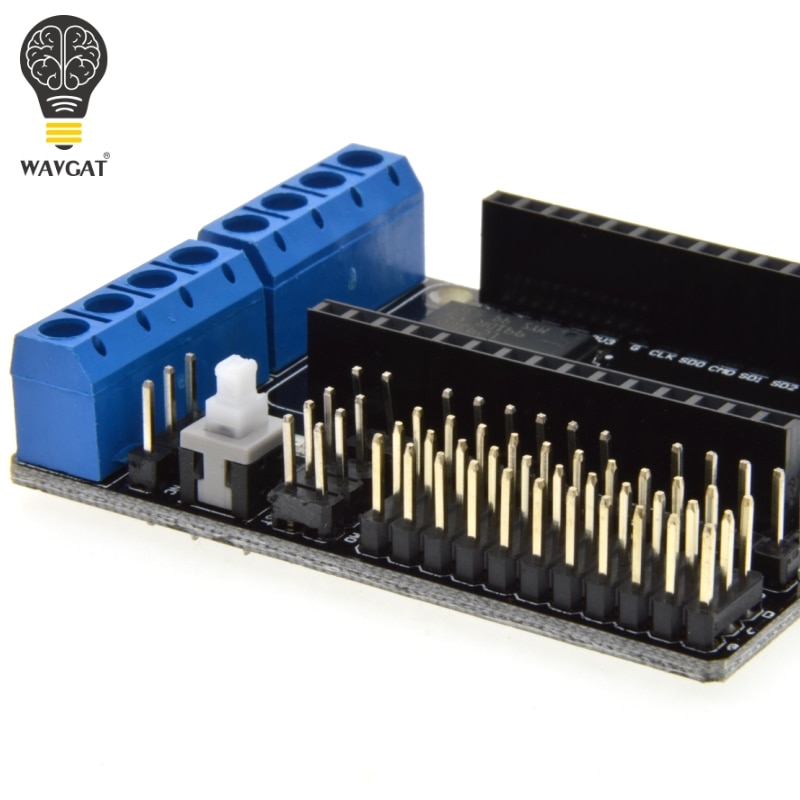

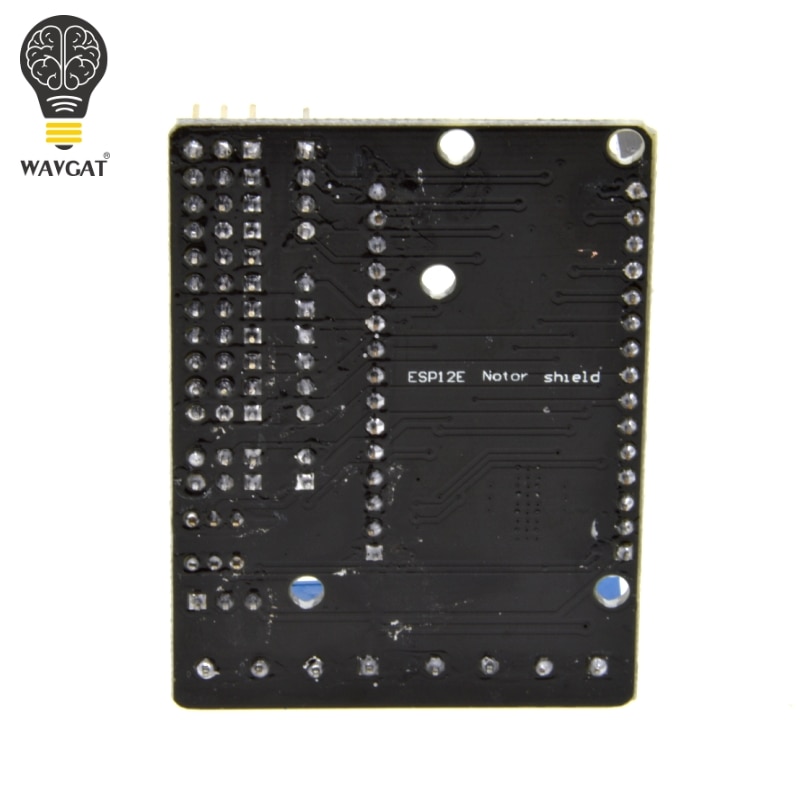

- ESP12 DEV KIT development board expansion module;

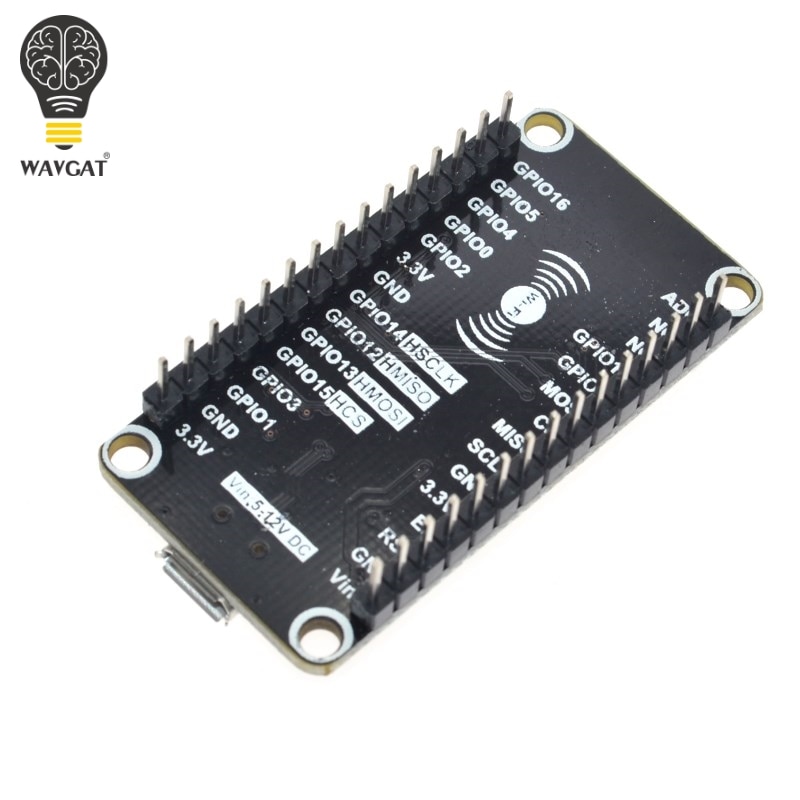

- lead ESP12 DEV KIT All-function pins: SPI, UART, GPIO, AI and 3.3V power connector;
- expand two-way motor-driven, two-way direct drive motor;
- onboard power switch;
- Motor power range: 4.5V ~ 36V;
- Control power range: 4.5V ~ 9V;
- Motor power, control power separation; In the experiment, by short-circuiting block the merger, the VIN and VM short, while power supply to the motor and the control board.
- Precautions

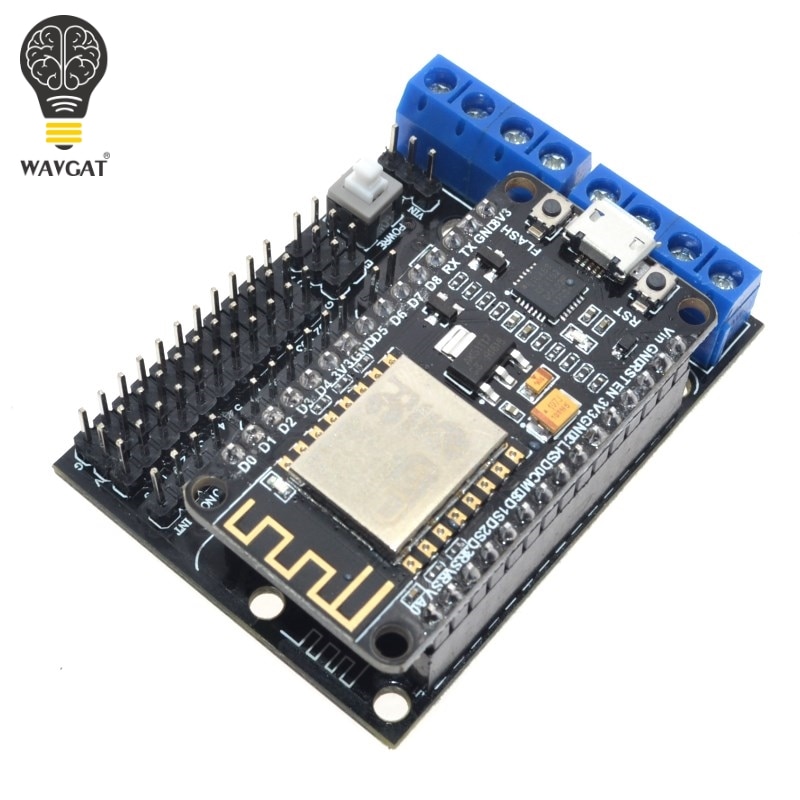

- When l insert ESP-12E module, please note the direction consistent with an expansion board antenna;
- use of short modules that can simultaneously control board and motor.
- Related Documentation: http: //nodemcu-motor.doit.am/
