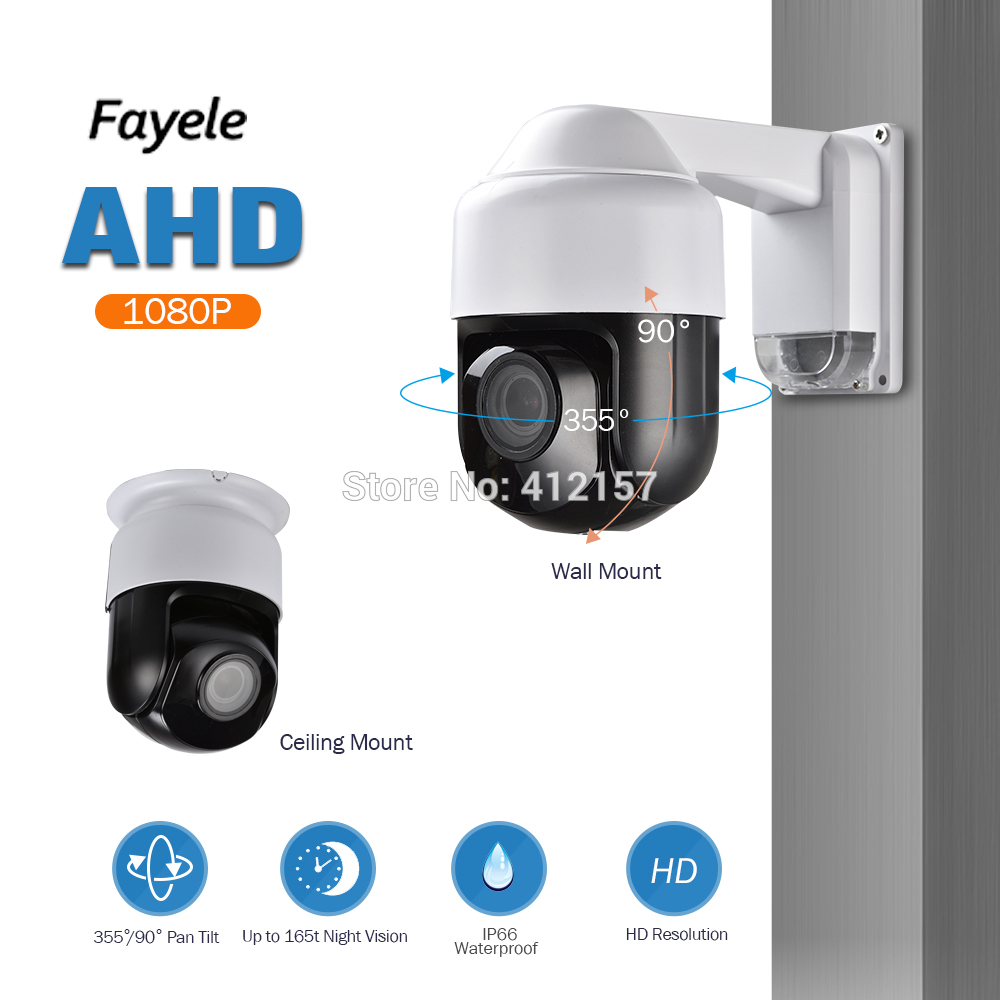

Outdoor CCTV Security AHD 1080P PTZ Camera Full HD 2MP 3" Mini Size 4X ZOOM 2.8-12mm IR Auto Focus
Outdoor CCTV Security AHD 1080P PTZ Camera Full HD 2MP 3" Mini Size 4X ZOOM 2.8-12mm IR Auto Focus UTC Coaxial RS485 PTZ Control...
|
3" 4X Zoom AHD 1080P PTZ Camera
 Product Description
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Model |
HDR-305-S104A |
|
Camera |
|
|
Image Sensor |
1/3" CMOS |
|
Resolution |
1920 x 1080 |
|
Video Format |
PAL/NTSC |
|
Minimum Illumination |
Color: 0.1Lux B/W: 0.01Lux |
|
Video Out |
CVBS/AHDH(1Vp-p 75ohm) |
|
S/N Ratio |
≥50DB |
|
White Balance |
Auto |
|
Day&Night mode |
Built-in IR-CUT Auto/Day/Night optional |
|
Lens |
|
|
Focus Length |
2.8 - 12mm |
|
ZOOM |
4X ZOOM |
|
Function |
|
|
IR control |
Variable with focus length |
|

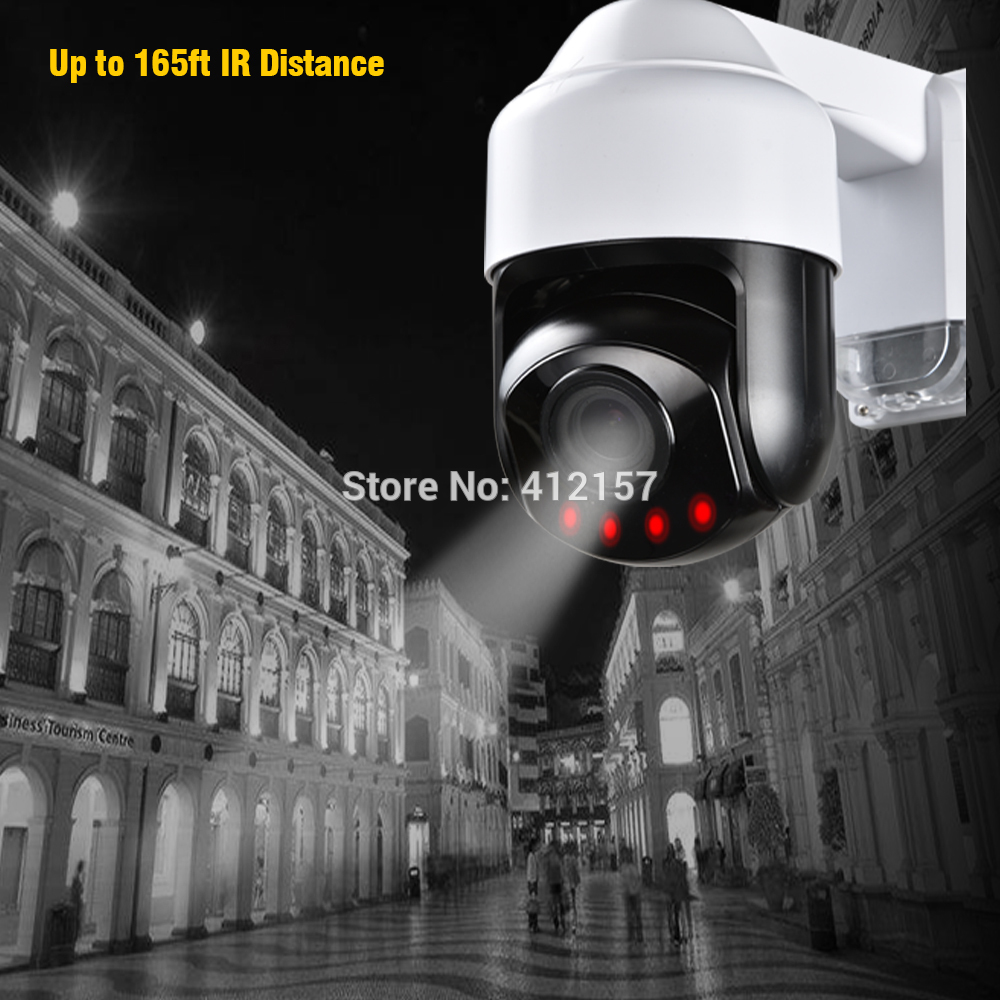

IR Distance |
50M |
|

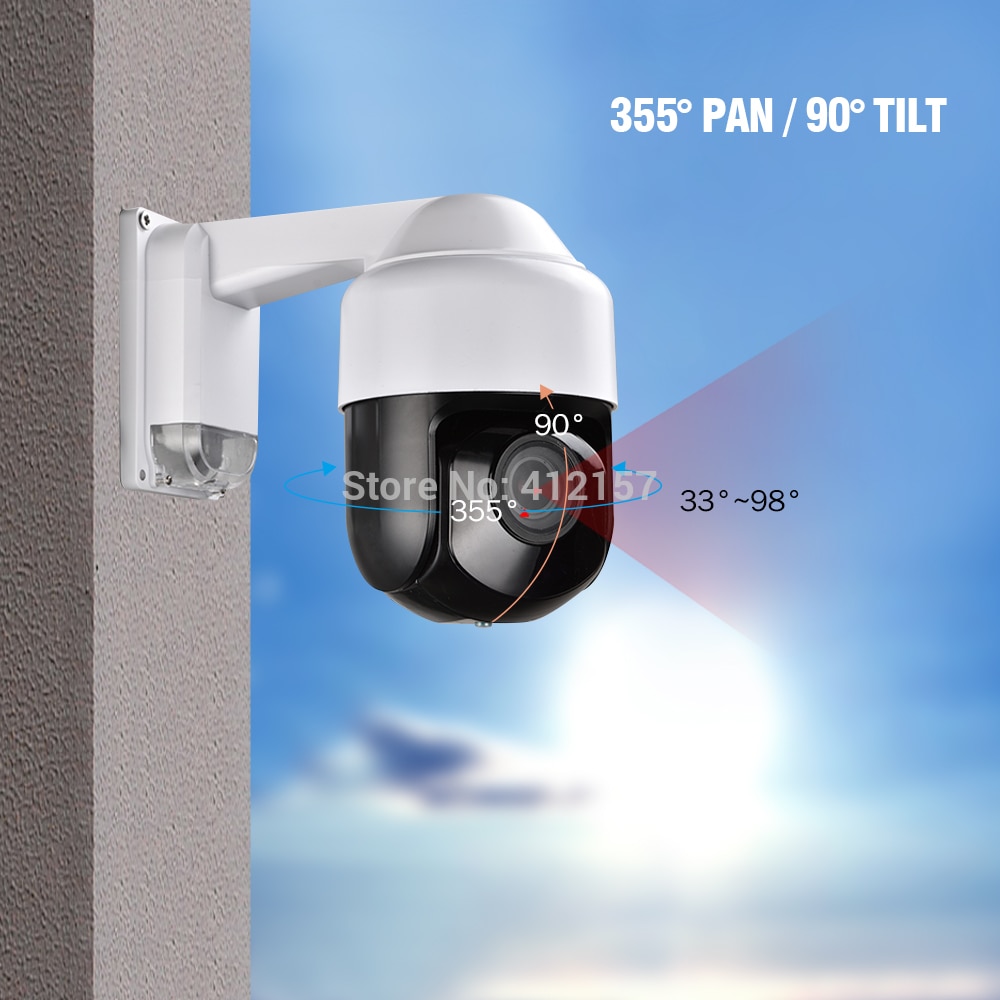

Rotate Range |
Horizontal: 0°~355° Vertical: -15°~90° |
|
Rotate Speed |
Horizontal 0.1°~60°/s; Vertical 0.1°~60°/s HIGH Speed Dome |
|
Preset |
55 |
|
Patrol Track |
4 path, each path can add 10 presets |
|
Automatic scan |
1 path |
|
360°track |
1 path |
|
Watch |
Preset / Patrol Track / zone track / horizontal track |
|
Video In/Out |
|
|
Video Out |
1.0Vpp/75Ω,NTSC/PAL,BNC Port |
|
Pan/Tilt Control |
PTZ Control via RS485 (If buy with our DVR it\'s with Coaxial PTZ control) |
|
Other |
|
|
Power |
DC12V |
|
Consumption |
15W MAX |
|
Working Environment |
Temprture-40~60 degrees; Humidity<90% |
|

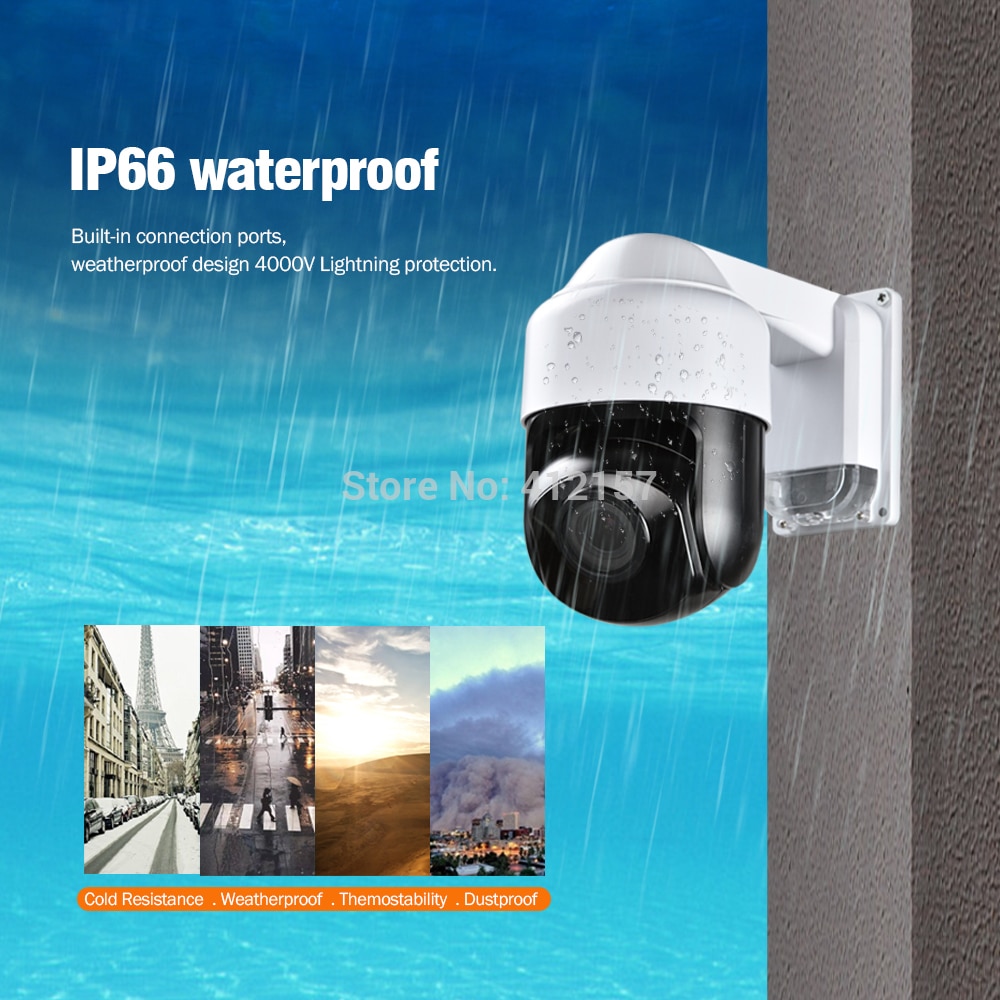

Protection grade |
IP65 waterproof, 4000V Lightning protection, against-surge |
|
Material |
Plastic |
|
|
|
|
Packing Size |
26*22*13cm |
|
Weight |
1.3kg |
|

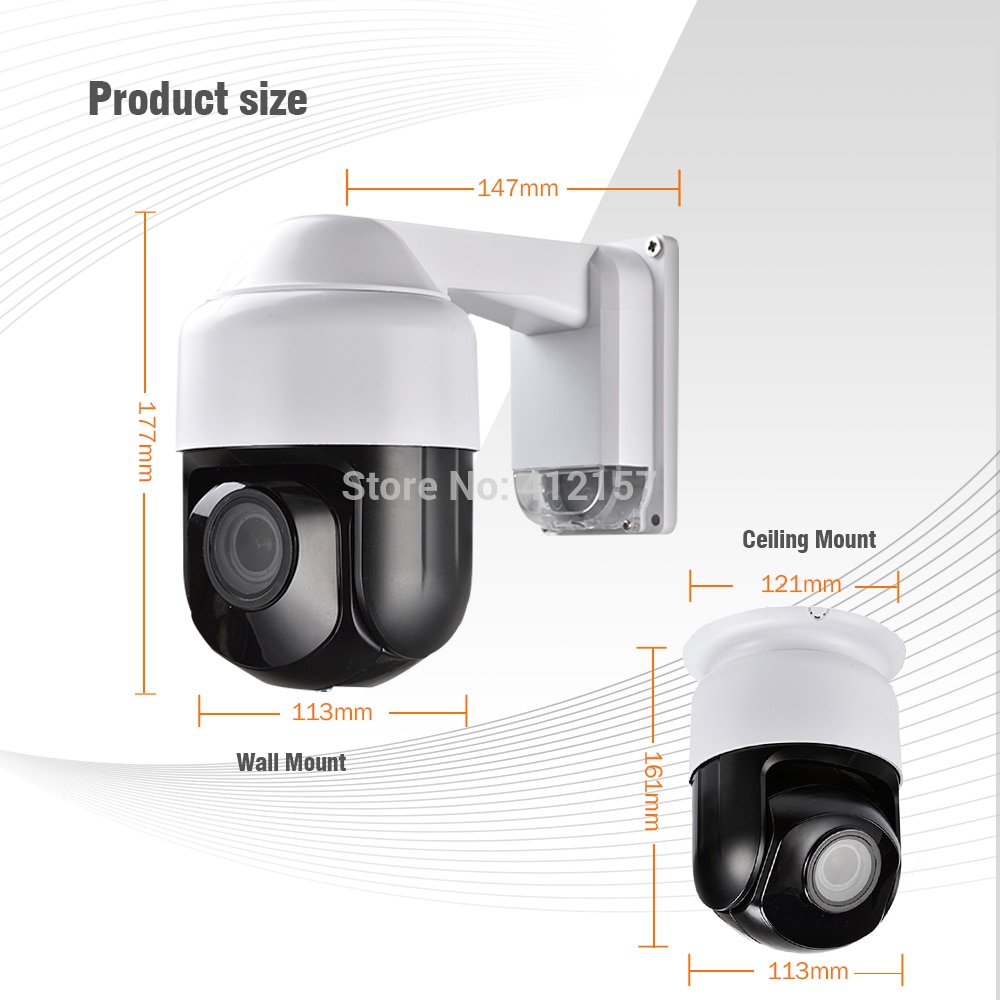

Bracket |
Wall mount |

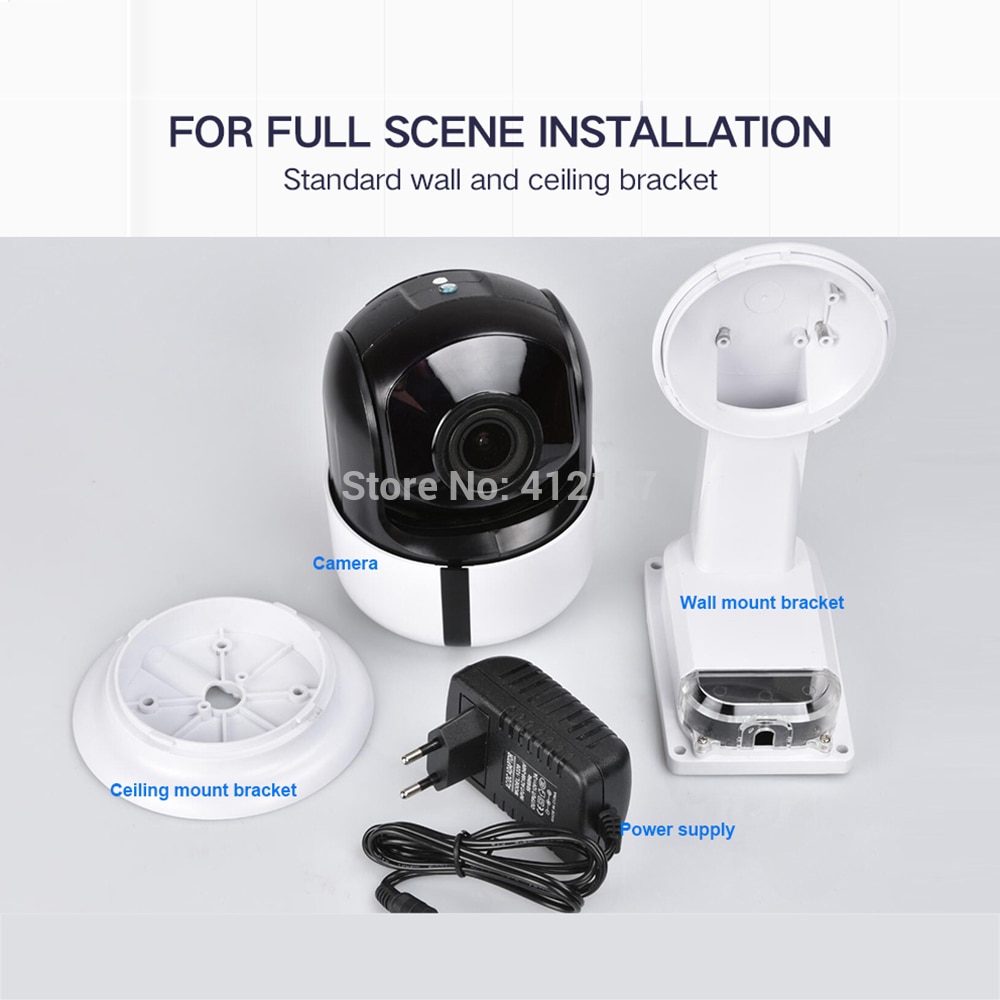

Package Contents
- 1 x 3" 4X Zoom PTZ Camera AHD 1080P
- 1 x Wall Mount Bracket
- 1 x Ceiling mount bracke
- 1 x Power supply
- 1 x User Manual
