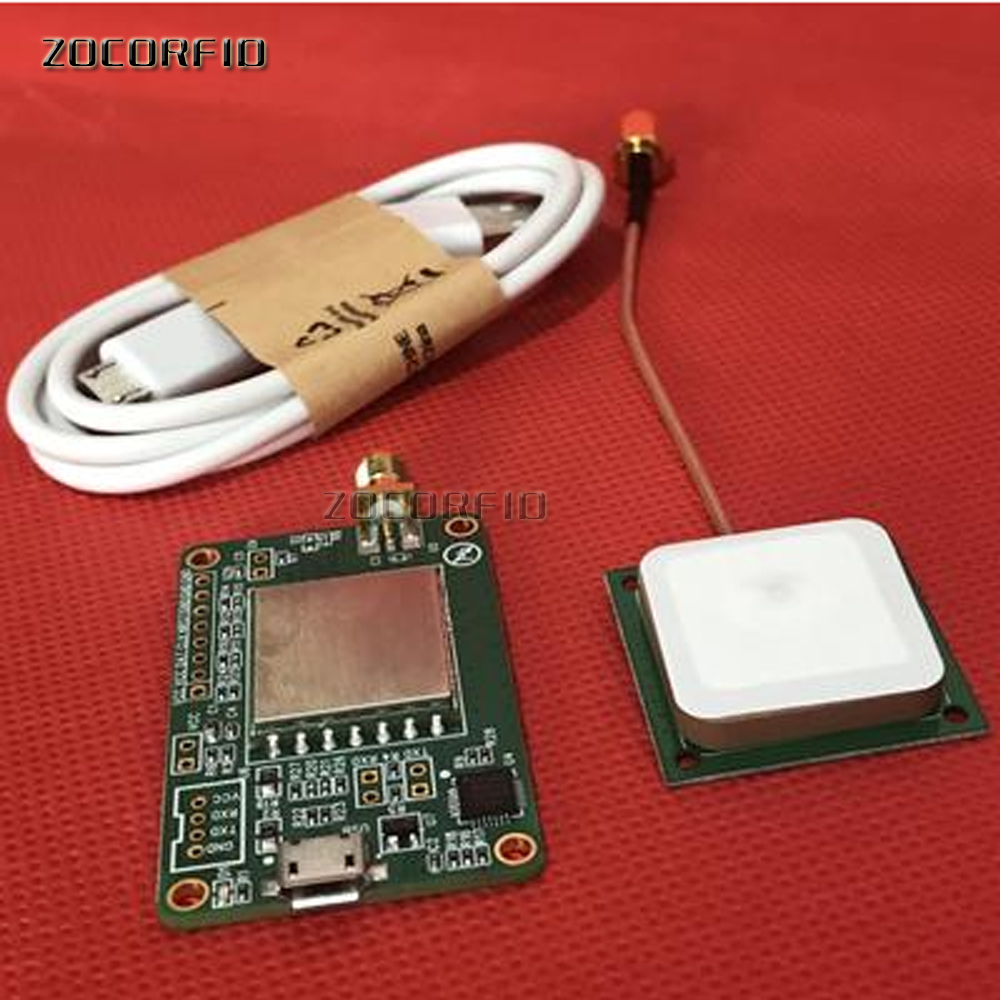

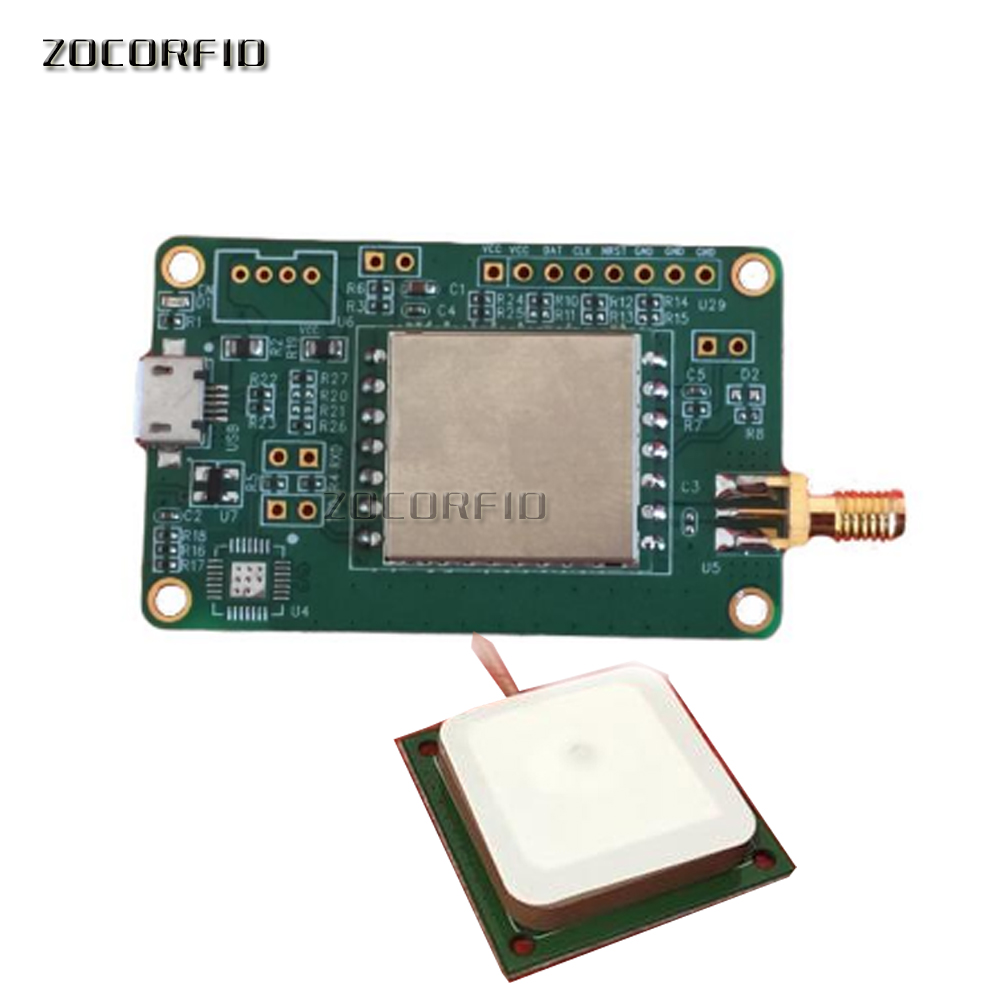

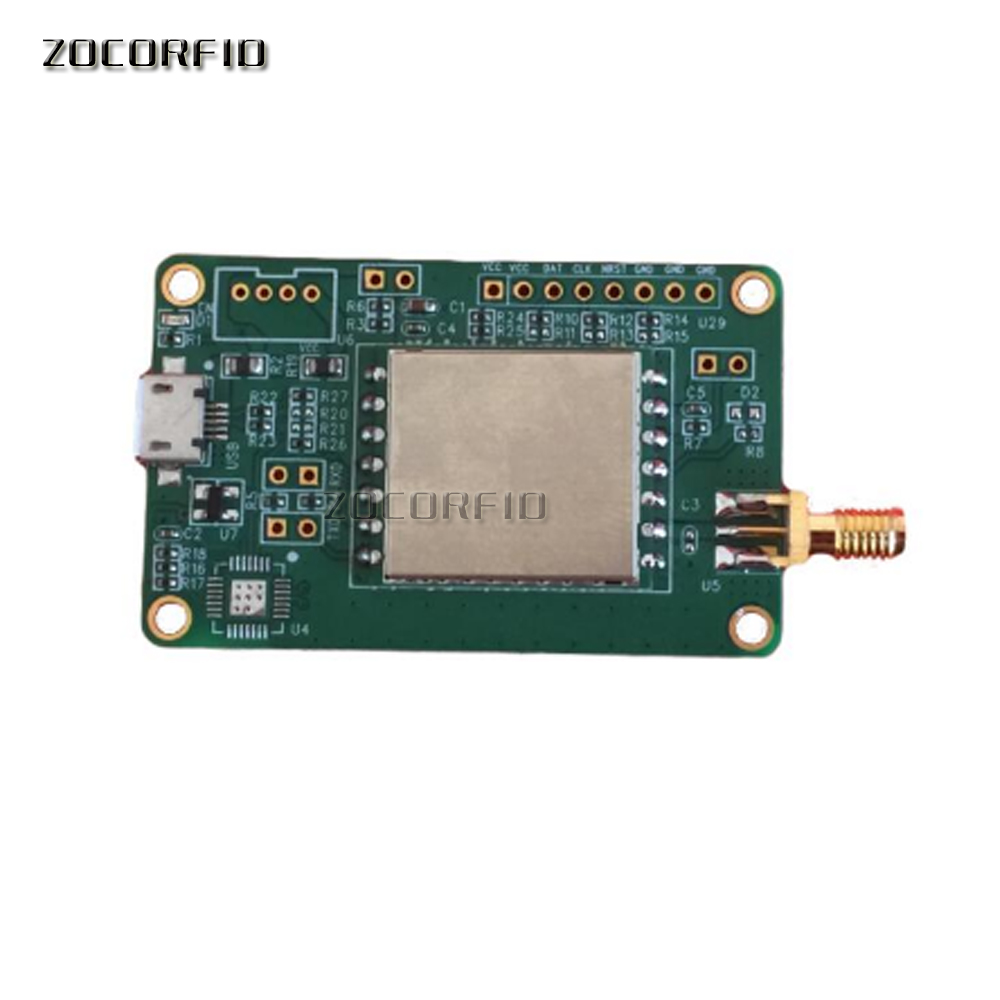

Free shipping UHF RFID reader module USB interface with uart UHF Passive 6C UHF reader module SDK+ME
Free shipping UHF RFID reader module USB interface with uart UHF Passive 6C UHF reader module SDK+MEDO+Documentation+Antenna...
1.Product description

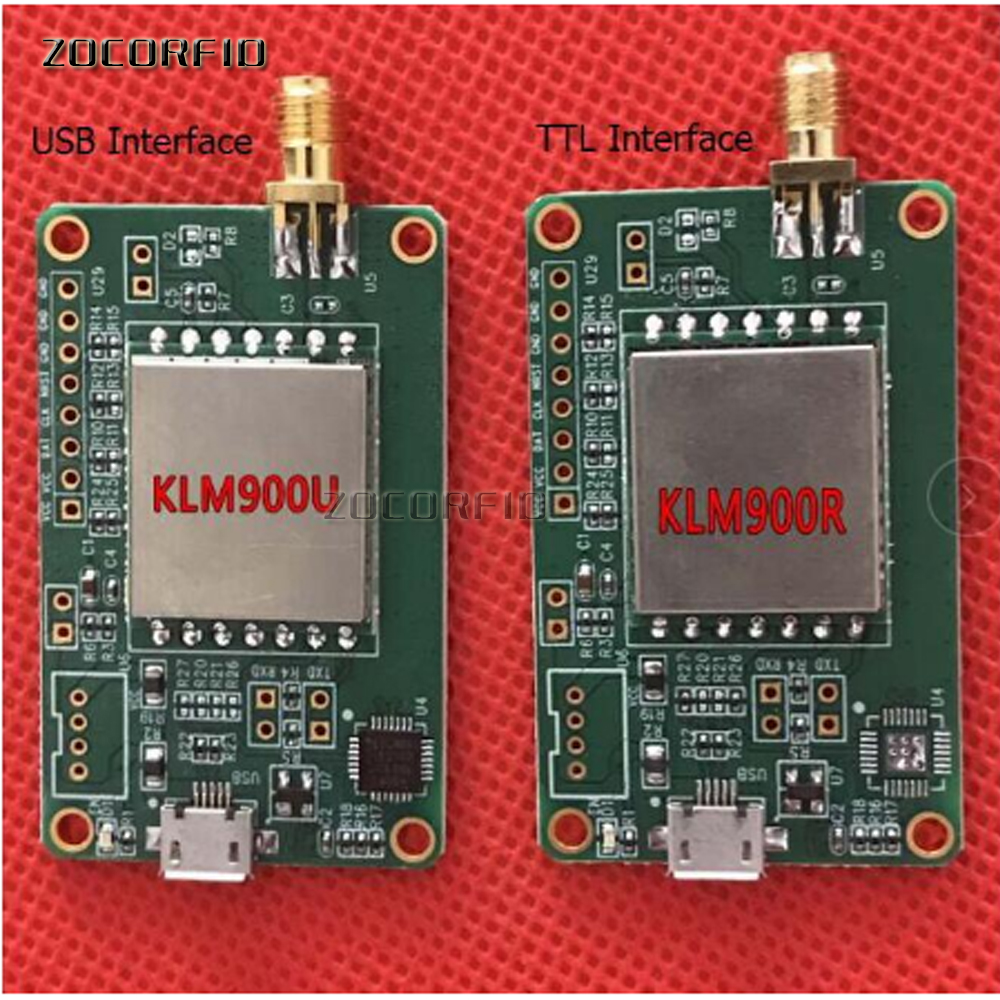

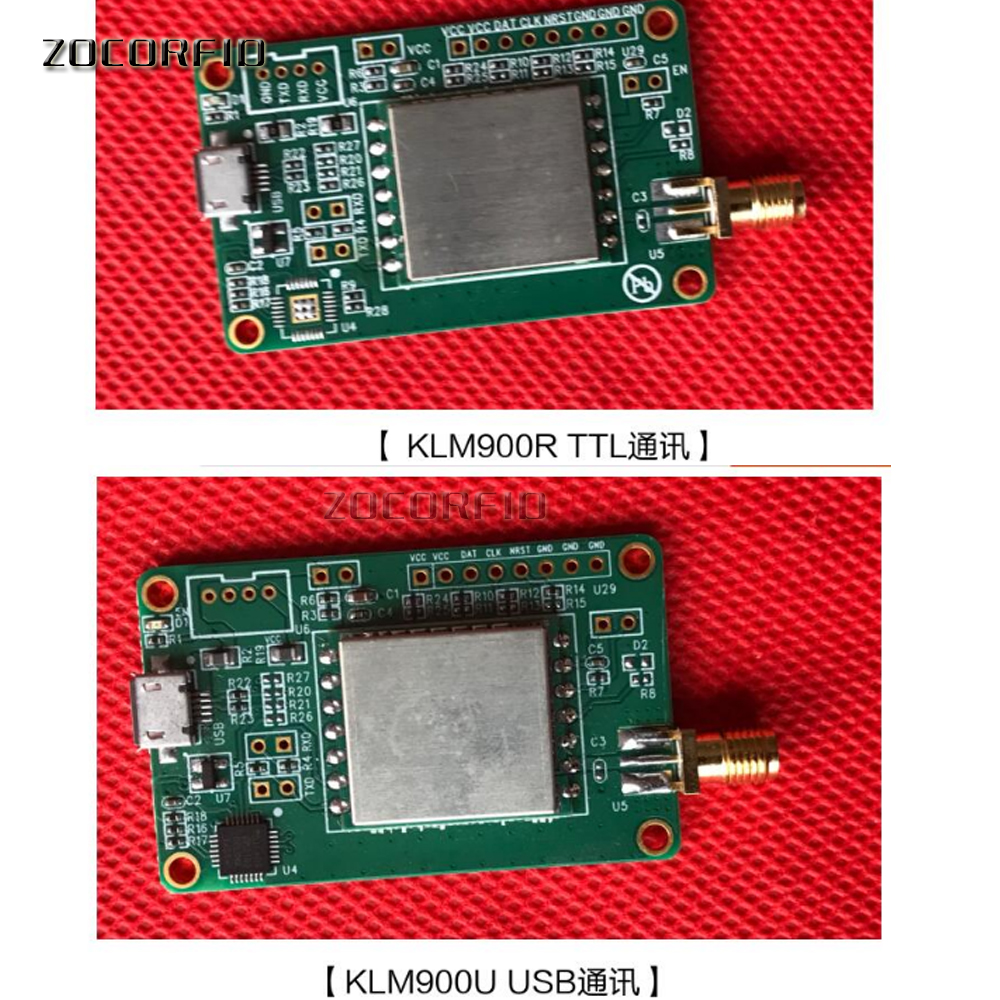

Module No.: KLM900U(USB)
KLM900R（TTL）
The module supports the ISO18000-6C / EPC C1G2 protocol, and the user can communicate with its own device through RS232-TTL pin on its interface. Its wide supply range (DC3.6V ~ 5.5V) and configurable GPIO interface (IO1 ~ IO4, configurable as input / output) give the user more options.
Due to the low power consumption and small size of the module, it is ideal for embedding in handheld mobile devices as well as short-range applications such as short distance handsets, mobile phone accessories, card issuers and so on.
Cooling method：
Air cooling (no external heat sink required)
Size: 19.76 x 22.76 x 1.5 (Unit: mm)

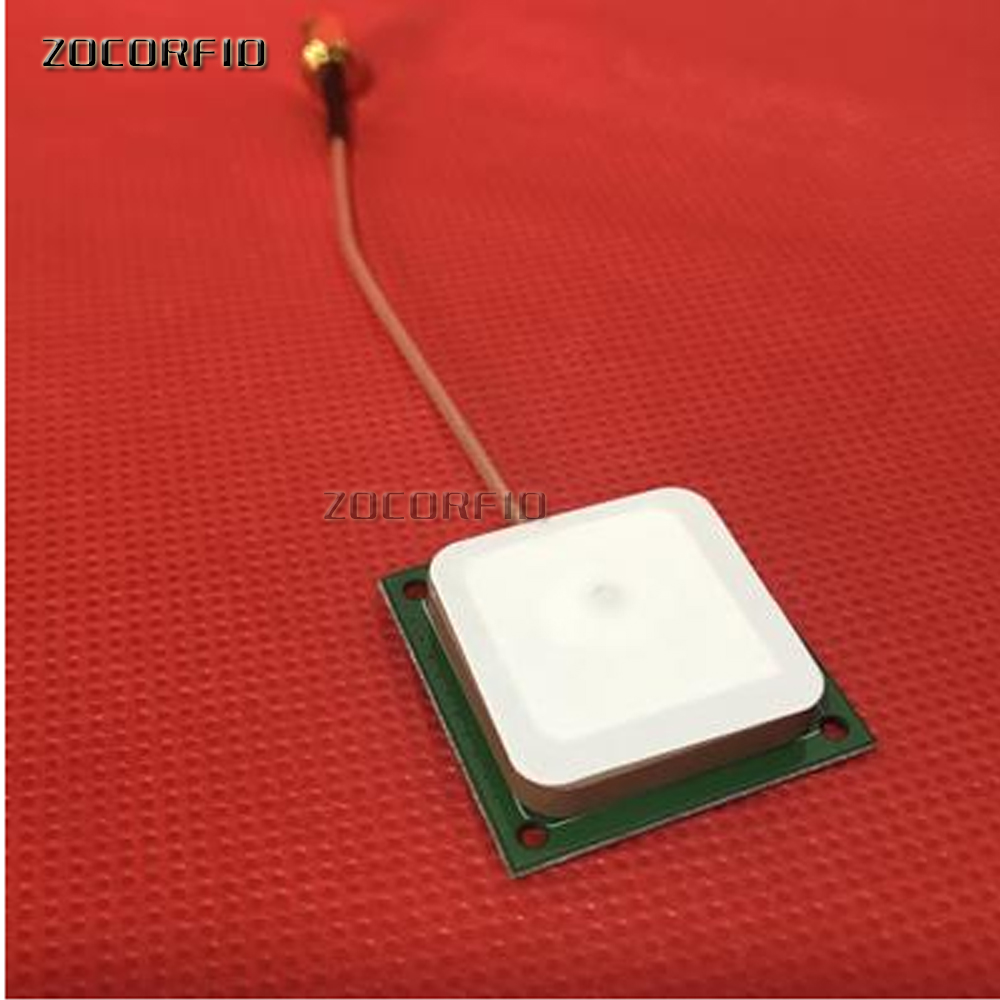

Communication distance: 1 meter (outdoor open) (30mm × 25mm ceramic antenna)
Communication interface: TTL-RS232 (baud rate: 115200bps, data bits: 8, stop bit: 1,
Parity bit: none, flow control bits: none
Support hibernation;
Provide AIP library functions and demo kits;
