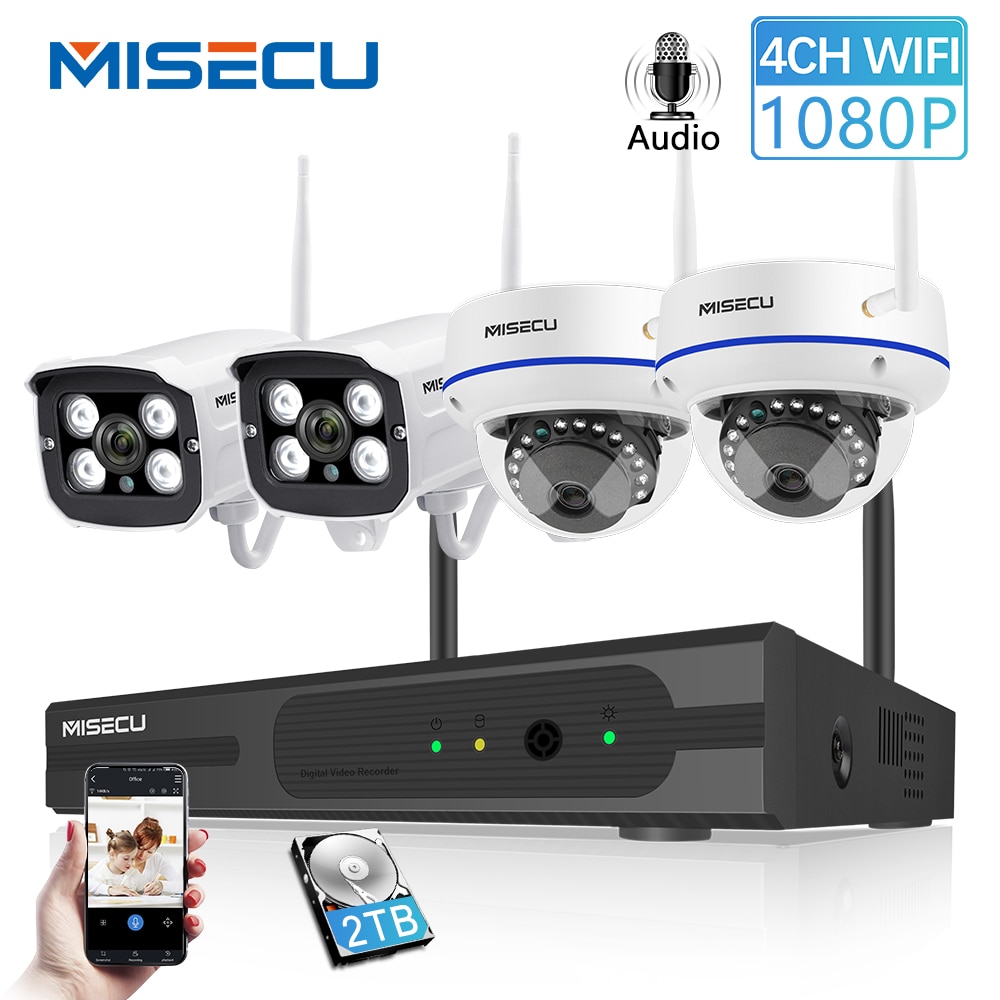

Package include:
1PCS - 4CH WiFi Security NVR
2/4PCS - 720P /960P/1080P WiFi Wireless Audio Camera 3.6mm lens
1PCS - 12V Power Supply for NVR
2/4PCS - 12V Power Supply for CCTV Camera(Cable length:3 meters)
1PCS - Network Cable
1PCS - USB Mouse
1PCS - User\'s Manual
No Hard Disk Or include 1TB HDD (Depends on the product properties you select)
720P/960P/1080P HD

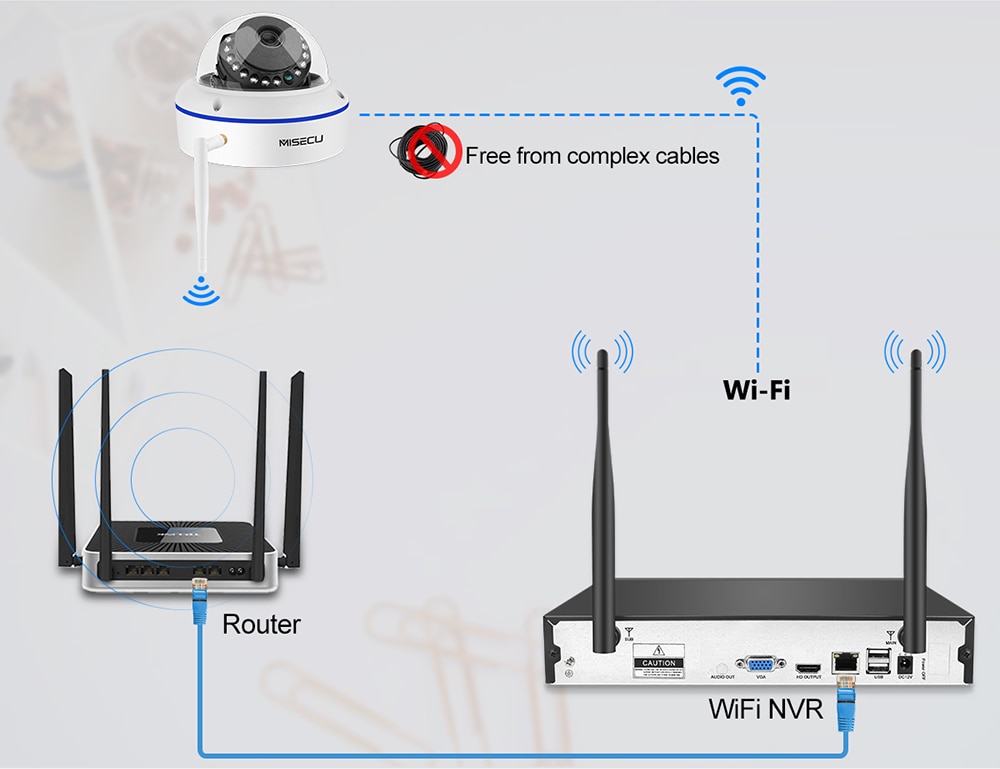

No network needed,without independent network
wifi NVR built in wifi moudle,which equals to a wifi router.This wifi system work itself,no needing wifi router,power camera,and power NVR separetely ,they connect automatically
No need cables,no need ip settings,plug and play
providing a perfect surveillance solution for your home and business, very easy to build up.
Strong signal,long distance transmit,smooth video
Steady transmission 50m in open area,30m across wall
Camera has audio support
WiFi camera system now has audio support. Each camera lets you add microphone without extra power cable needed; the NVR outputs voice through HDMI audio port. Of course, you can hear from App as well.
Advanced Motion Detection Recording
The motion detection recording function: when motion is detected the DVR will save the footage into hard disk without missing any important events.
You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Support Night Vision
the camera provides clear 20meters night vision with uniform luminance, low power consumption and longer service life.
Metal Case Waterproof IP66
IP66 professional security surveillance camera for Outdoor/Indoor use.
Operating Conditions: -20 °C ~ 50 °C, Humidity 95% or less (non-condensing)
Vandalproof
Locate incident Video with Smart Playback
You can freely playback to any specific moment on the timetable of your recordings and enjoy it on a beautiful intuitive interface

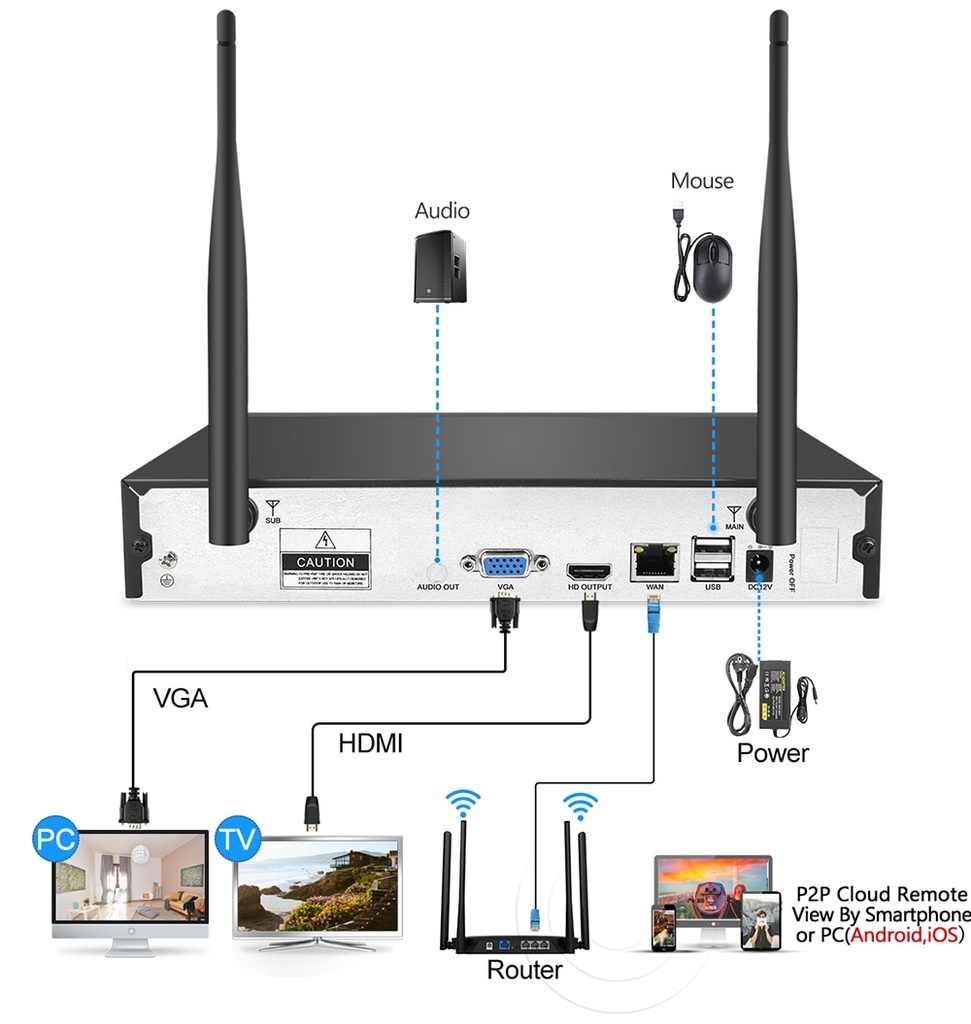

Connection Diagram
Plug & play. Easy to set up and DIY Installation
Connection Ways:
(1) Repeater Feature-Extend WIFI Distance
Repeater feature allows you to run the camera that out of signal range through a camera in range.
thereby improving the signal.
(2) Extension WIFI Antenna-Extend WIFI Distance
When WIFI signal is not strong enough against walls,you can take off the original antenna and
replace a extension WIFI antenna.
click below link to buy a wifi antenna :
|
(3) Wired Connection
If some of the cameras’ mounting spots are of WIFI range,you can use ethemet cable to connect
camera to NVR.

Features of NVR
| NVR |
| Model: |
W4W4S |
| Main Processor: |
Hisilicon 3520 + Realtek RTL8196E + RTL8182ER |
| Operating System: |
Embedded LINUX |
| Preview: |
1/4 |
| Control Device: |
USB Mouse |
| Video & Record |
| Video Compression: |
H.264 |
| Video Input: |
4CH *1086P |
| Video Output: |
VGA / HDMI |
| 1024x768, 1280x1024, 1366x768 |
| 1440x900 1280*960 |
| Video Mode: |
Manual, Time, Motion, Alarm |
| Playback Mode: |
Real time, Routine, Event |
| Playback: |
4CH * 960P |
| Storage & Backup |
| Space Occupation: |
720P: 20-25G/day/ch |
| Video Saved: |
Local HDD |
| Interface |
| Video Output: |
1 * VGA, 1 * HDMI |
| Network Protocol: |
UPnP/ SMTP/ PPPoE/ DHCP, etc… |
| Net Interface: |
RJ-45 2 * WIFI antenna interface |
| USB Interface: |
2 * USB2.0 Port |
| Hard Disk: |
1 * SATA Port (Max 1 x 4T) |
| Other |
| Operating Conditions: |
-10 °C ~ 55 °C |
| Humidity 95% or less (non-condensing) |
| Power Supply: |
12 VDC ± 10% 3A |
| Power Consumption: |
≤ 5W |
| Size: |
257mm*210mm*45mm |
| Weight: |
≤ 2kg (Without HDD) |
Features of Camera
Bullet IP Camera Specification :
Image Sensor:1/4" Progressive Scan Sensor
Resolution : 1920*1080P/1280*720/1280*960 Optional
Lens: Full HD 1080P 3.6mm
IR LEDs Amount:4*Array LEDs with IR-CUT function With Max 25M IR Distance
Material : Aluminum
Dome IP Camera Specification :
Image Sensor:1/4" Progressive Scan Sensor
Resolution : 1920*1080P/1280*720/1280*960 Optional
Lens: Full HD 1080P 3.6mm
IR LEDs Amount:21*IR LED LEDs with IR-CUT function With Max 15M IR Distance
Material : Metal Vandalproof
Important Note :
Multi Bundle Available :)
4CH Version Content : 1*4CH Wifi NVR +2* Dome Cam + 2*bullet cam + complete accessories
2CH Dome Cam Content : 1*4CH Wifi NVR +2* Dome Cam + complete accessories
2CH Bullet Cam Content : 1*4CH Wifi NVR +2*bullet cam + complete accessories
Resolution Information : 1MP = 720P 1.3MP = 960P 2MP = 1080P

|
|
|
|
|
|
|
|
|
|
|
