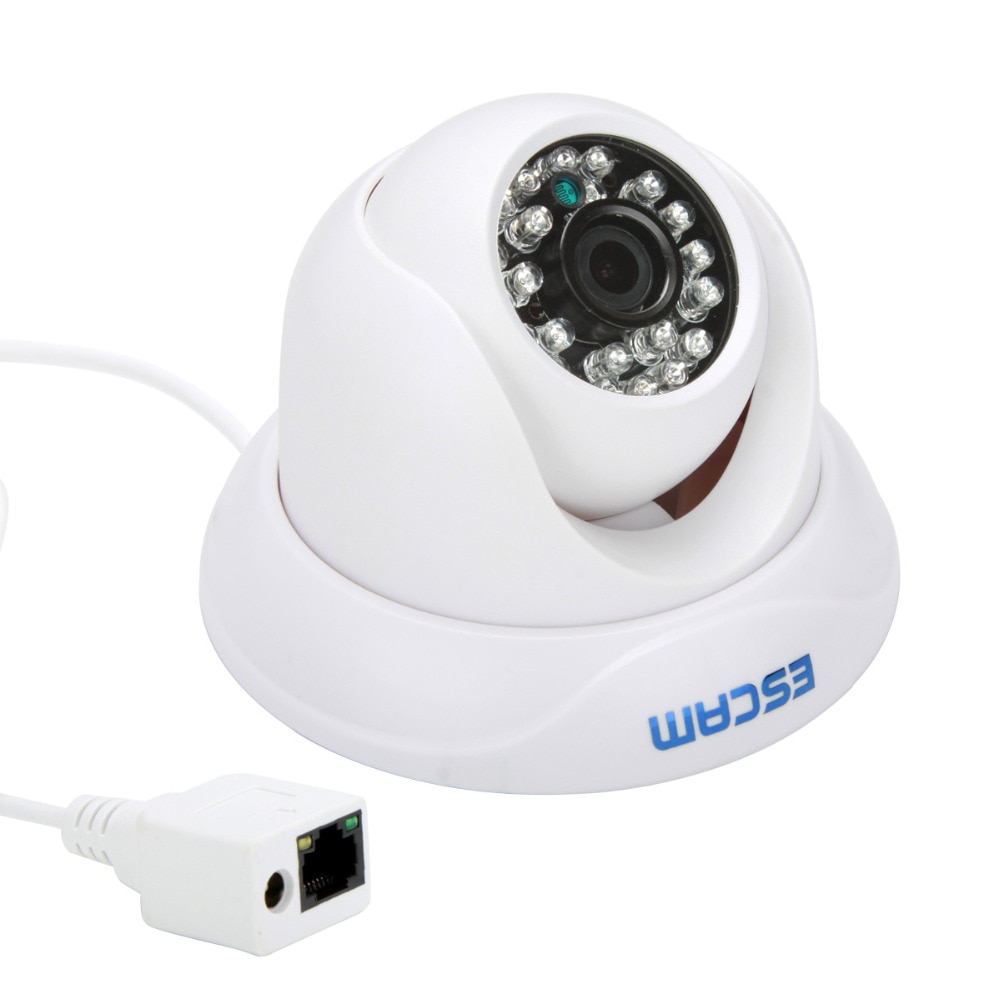

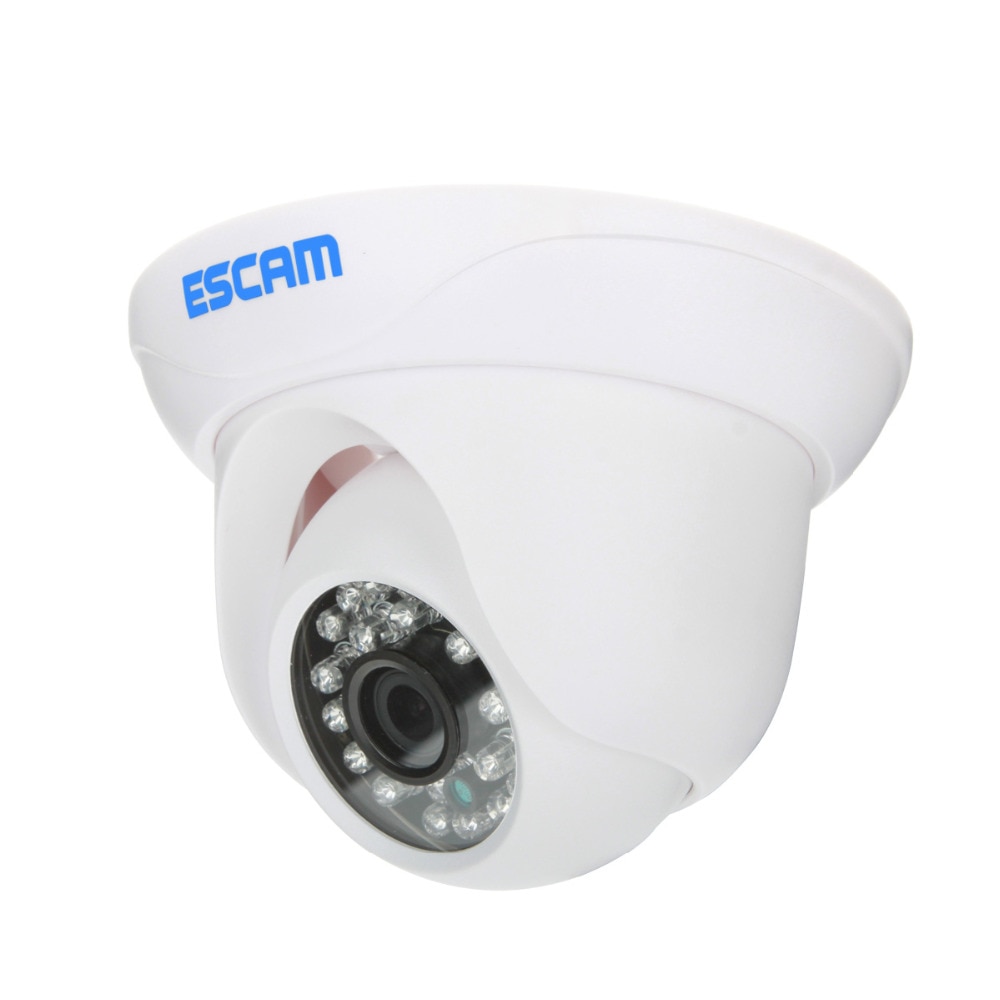

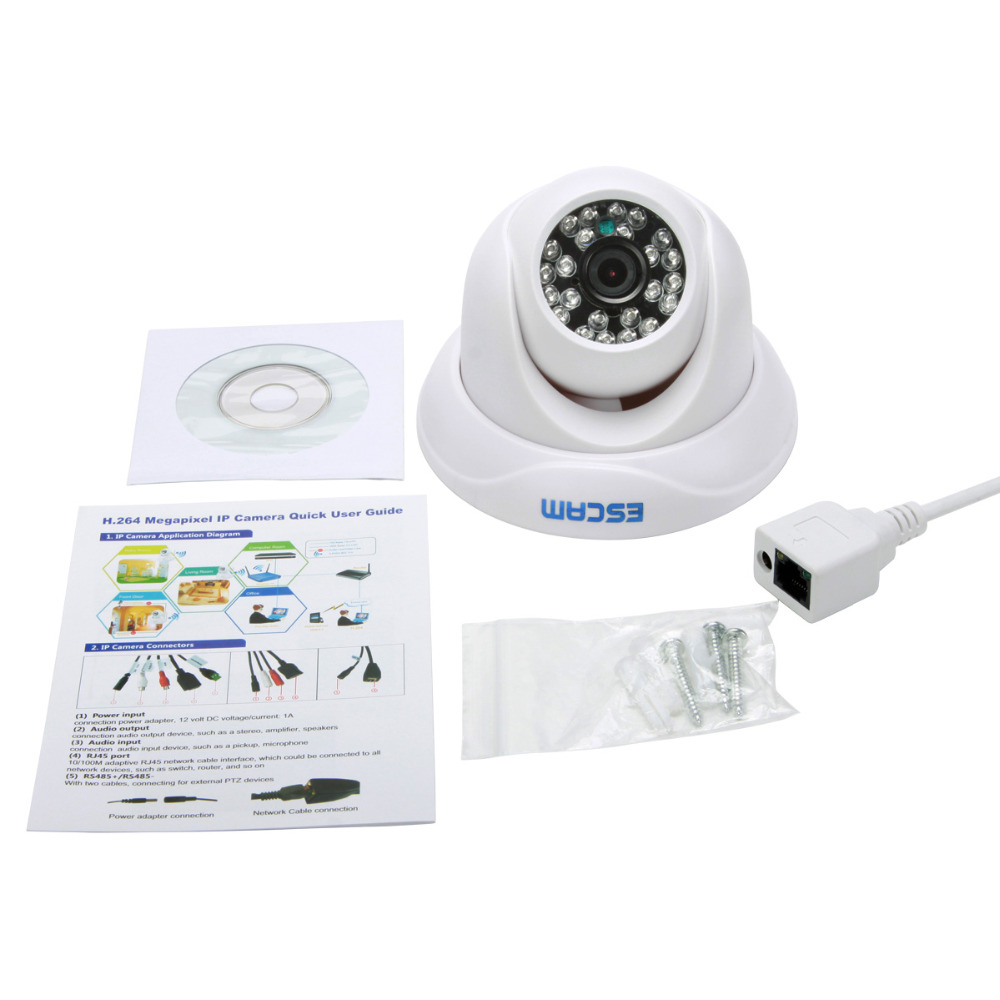

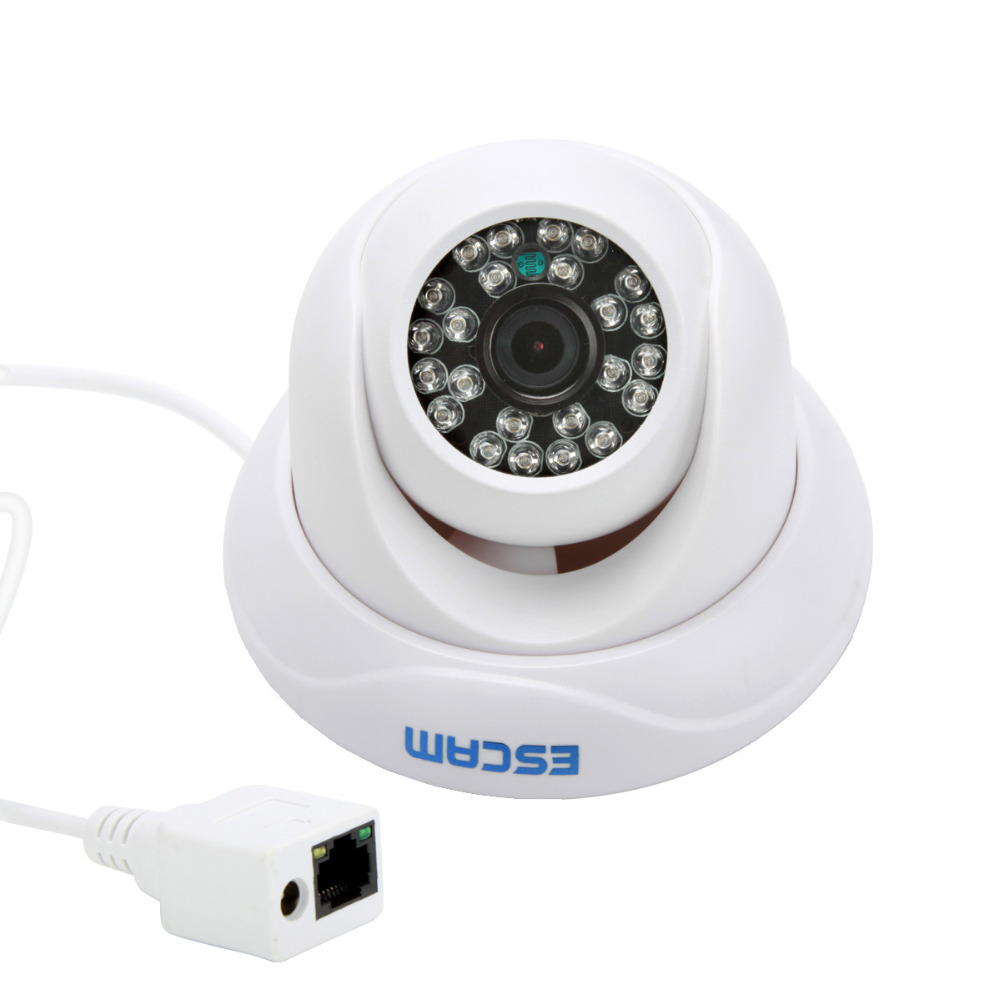

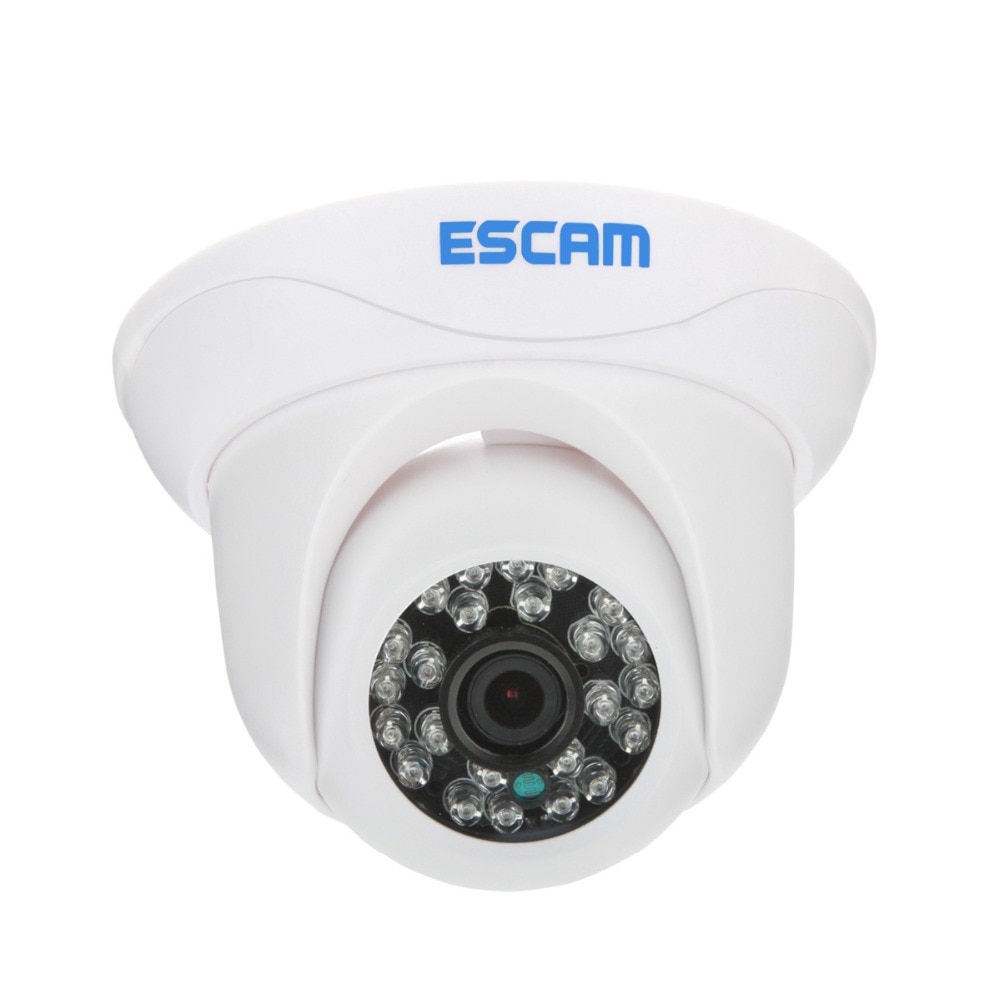

Escam Snail QD500 onvif indoor outdoor camera p2p hd security camera privacy masking
Escam Snail QD500 onvif indoor outdoor camera p2p hd security camera privacy masking and night vision fuction camera...
<
| Camera | |||
| Key Features | |||
| >1/4” 1Megapixel progressive scan CMOS | |||
| >H.264 dual-stream encoding | |||
| >Max 25/30fps@720P(1280×720) | |||
| >DWDR, Day/Night(ICR), 2DNR, AWB, AGC, BLC | |||
| >Multiple network monitoring: Web viewer, CMS | |||
| >3.6mm fixed lens | |||
| >Max. IR LEDs Length 10m | |||
| >DC12V 1A | |||
| Model | QD500 | ||
| Camera | |||
| Image Sensor | 1/4” 1Megapixel progressive scan CMOS | ||
| Effective Pixels | 1280(H)x720(V) | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | Auto/Manual 1/3(4)~1/10000 | ||
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2,0Lux (IR on) | ||
| S/N Ratio | More than 50dB | ||
| Video Output | N/A | ||
| Camera Features | |||
| Max. IR LEDs Length | 10m | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Backlight Compensation | BLC/ HLC/ DWDR | ||
| White Balance | Auto/Manual | ||
| Gain Control | Auto/Manual | ||
| Noise Reduction | 3D | ||
| Privacy Masking | Up to 4 areas | ||
| Lens | |||
| Focal Length | 3.6mm | ||
| Max Aperture | F1.8 | ||
| Focus Control | Manual | ||
| Angle of View | H: 70° | ||
| Lens Type | Fixed lens | ||
| Mount Type | Board-in Type | ||
| Video | |||
| Compression | H.264 | ||
| Resolution | 720P(1280×720)/ D1(704×576/704×480) /CIF(352×288/352×240) | ||
| Frame Rate | Main Stream | 720P(1 ~ 25fps) | |
| Sub Stream | D1/CIF(1 ~ 25fps) | ||
| Bit Rate | H.264: 16K ~ 4096Kbps | ||
| Audio | |||
| Compression | N/A | ||
| Interface | N/A | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Wi-Fi | N/A | ||
| Protocol |
IPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP |
||
| ONVIF | ONVIF Profile S | ||
| Max. User Access | 10 users | ||
| Smart Phone | iPhone, iPad, Android | ||
| P2P | iPhone, Android Mobile App | ||
| Auxiliary Interface | |||
| Memory Slot | N/A | ||
| RS485 | N/A | ||
| Alarm | N/A | ||
| PIR Sensor Range | N/A | ||
| General | |||
| Power Supply | DC12V 1A | ||
| POE | N/A | ||
| Power Consumption | <4W | ||
| Working Environment | -30°C~+60°C, Less than 95%RH | ||
| Ingress Protection | IP66 | ||
| Vandal Resistance | N/A | ||
| Dimensions | Φ123mm x82mm | ||
| Weight | 0.3Kg | ||
| Package Dimensions | 140mm x140mm x110mm | ||
| Package Weight | 0.41Kg | ||
| Approvals | CE FCC RoHS | ||
';
