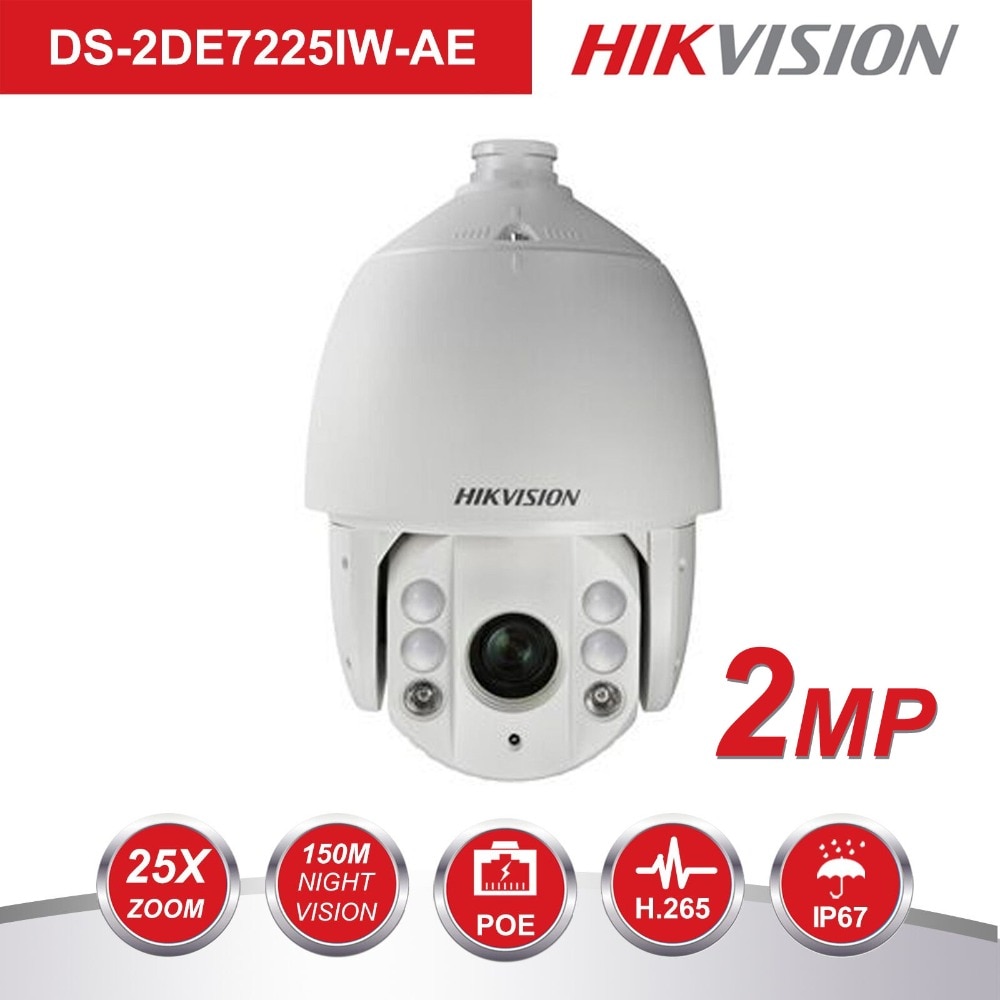

Hikvision PTZ IP Camera Outdoor DS-2DE7225IW-AE 2 Megapixel 25X Optical Zoom IR Speed Dome Camera H.
Hikvision PTZ IP Camera Outdoor DS-2DE7225IW-AE 2 Megapixel 25X Optical Zoom IR Speed Dome Camera H.265+ Auto Tracking Support...
This product has no valid combination.
Hikvision DS-2DE7225IW-AE 2MP 25× Network IR Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25× optical zoom lens, the camera offers more details over expansive areas.
This series of cameras can be widely used for wide ranges of high-definition, such as the rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Camera Module
- Image Sensor 1/2.8" progressive scan CMOS
- Min. Illumination：Color: 0.005 Lux @ (F1.6, AGC ON) B/W: 0.001Lux @ (F1.6, AGC ON); 0 Lux with IR
- White Balance: Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
- Gain: Auto/Manual
- Shutter Time: 50Hz: 1/1 s to 1/30,000 s
- 60Hz: 1/1 s to 1/30,000 s
- Day & Night: IR Cut Filter
- Digital Zoom: 16×
- Privacy Mask: 24 programmable privacy masks
- Focus Mode: Auto/Semi-automatic/Manual
- WDR: 120 dB WDR
Lens
- Focal Length: 4.8 mm to 120 mm, 25× optical zoom
- Zoom Speed: Approx. 3.6 s (optical lens, wide-tele)
- Field of View: Horizontal field of view: 57.6° to 2.5°(Wide-Tele)
- Vertical field of view: 34.4°to 1.4°(Wide-Tele)
- Diagonal field of view: 64.5°to 2.9°(Wide-Tele)
- Working Distance: 10 mm to 1500 mm (wide-tele)
- Aperture Range: F1.6 to F3.5
IR
- IR Distance: 150 m
- Smart IR: Support
PTZ
- Movement Range: (Pan) 360° endless
- Pan Speed: Configurable, from 0.1°/s to 160°/s, Preset speed: 240°/s
- Movement Range (Tilt): From -15° to 90°(auto-flip)
- Tilt Speed Configurable from 0.1°/s to 120°/s, Preset Speed: 200°/s
- Proportional Zoom: Support
- Presets: 300
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Power-off Memory: Support
- Park Action: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
- 3D Positioning: Support
- PTZ Position Display: Support
- Preset Freezing: Support
- Scheduled Task: Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama
- Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
- Video Compression: Main Stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third Stream: H.265/H.264/MJPEG
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.264+: Support
- H.265 Type: Main Profile
- H.265+: Support
- Video Bitrate: 32 Kbps to 16384 Kbps
- Audio Compression: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
- Audio Bitrate: G.711alaw/G.711ulaw: 64 Kbps
- G.722.1/G.726: 16 Kbps
- MP212/PCM: 32 Kbps/64 Kbps/128 Kbps
- SVC: Support
Smart Features
- Basic Event: Motion Detection, Alarm Input, Alarm Output, Video Tampering Detection, Exception
- Smart Event: Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
- Smart Record: ANR (Automatic Network Replenishment), Dual-VCA
- ROI: Main stream, sub-stream, and third stream respectively support four fixed areas.
- Auto-Tracking: Support
- Max. Resolution 1920 * 1080
- Main Stream: 50Hz: 25fps (1920 * 1080, 1280 * 960, 1280 * 720)
- 50fps (1920 * 1080, 1280 * 960, 1280 * 720)
- 60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720)
- 60fps (1920 * 1080, 1280 * 960, 1280 * 720)
- Sub-Stream 50Hz: 25fps (704 * 576, 640 * 480, 352 * 288)
- 60Hz: 30fps (704 * 480, 640 * 480, 352 * 240)
- Third Stream 50Hz: 25fps (1920 * 1080, 1280 * 960, 1280 * 720, 704 * 576, 640 * 480, 352 * 288)
- 60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720, 704 * 480, 640 * 480, 352 * 240)
- Image Enhancement: HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
- Network Storage: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
- Alarm Linkage: Alarm actions, such as Notify Surveillance Center, Upload to FTP, Send Email, Trigger Recording, Recording Linkage, and Alarm Input, etc.
- Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
- API: Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
- Management Platform
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users
- 3 levels: Administrator, Operator and User
- Security Measures: User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
- Client: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
- Web Browser: IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Interface
- Alarm Interface: 2-ch alarm input and 1-ch alarm output
- Audio Interface: 1-ch audio input and 1-ch audio output
- Network Interface: 1 RJ45 10 M/100 M Ethernet, Hi-PoE
General
Power: 24 VAC and Hi-PoE Max.: 40 W (Max. 14 W for IR)
Working Temperature: -30°C to 65°C (-22°F to 149°F)
Working Humidity: ≤ 90%
Protection Level: IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material: ADC 12, PC, PC+10%GF
Dimensions: Φ 220 mm * 353.4 mm (Φ 8.66" * 13.91")
Weight: Approx. 4.5 kg (9.92 lb)
