RFID UHF Wristband Bluetooth Reader Writer EPC

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Description

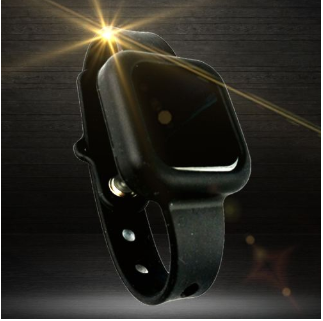

BH04 NFC HF Wristband Bluetooth Reader
Battery capacity: 65mAh
Charging interface: MICRO-USB, 5V-500mA
Charging time: 70 minutes
Standby time: 30 days
Continuous working time: 7 hours (reading nearly 20,000 times)
Q Value: 30 ± 2%
Working Frequency: 13.56MHz
Support card rate: 106kbps, 212kbps, 424kpbs
Support ultra-low power automatic sleep
It has good read and write performance for standard cards and special-shaped cards, and MCU cards
Reading distance can reach 3-125px.

RFID Reader Model Description

User Instruction of BH04 NFC HF Wristband Bluetooth Reader

Communicate with BLE Bluetooth Android mobile phone devices above 4.0. Can communicate with iOS devices above Bluetooth BLE4.0.
The communication speed can meet the business needs of the bus card project. 1k byte data transfer is completed within 1 second.
The distance of open communication is 5m.
There is no loss or error in reading and writing 1k bytes of data at a time.
BLE version connection time is 1 second (scan + connection).
The lamp is completely off during standby. The green light flashes when not connected, and the green light is always on when connected.
When the charging is not completed, the red light is always on, and the red light is off when the charging is completed.
When the card is found or the data is exchanged with the card, the blue light flashes. When the card is activated, the green light is always on.
The lamp blinking period is 1 s. The software version number of the device can be returned via the SDK interface.
