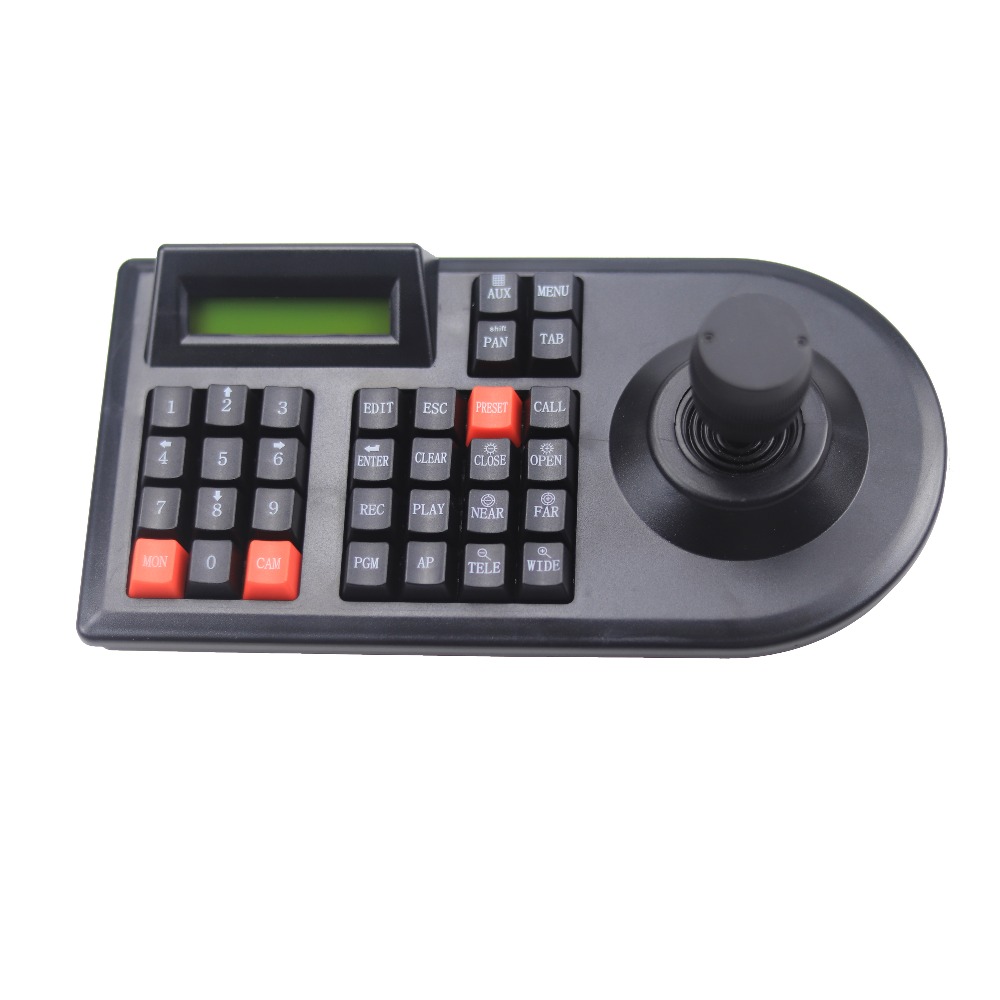

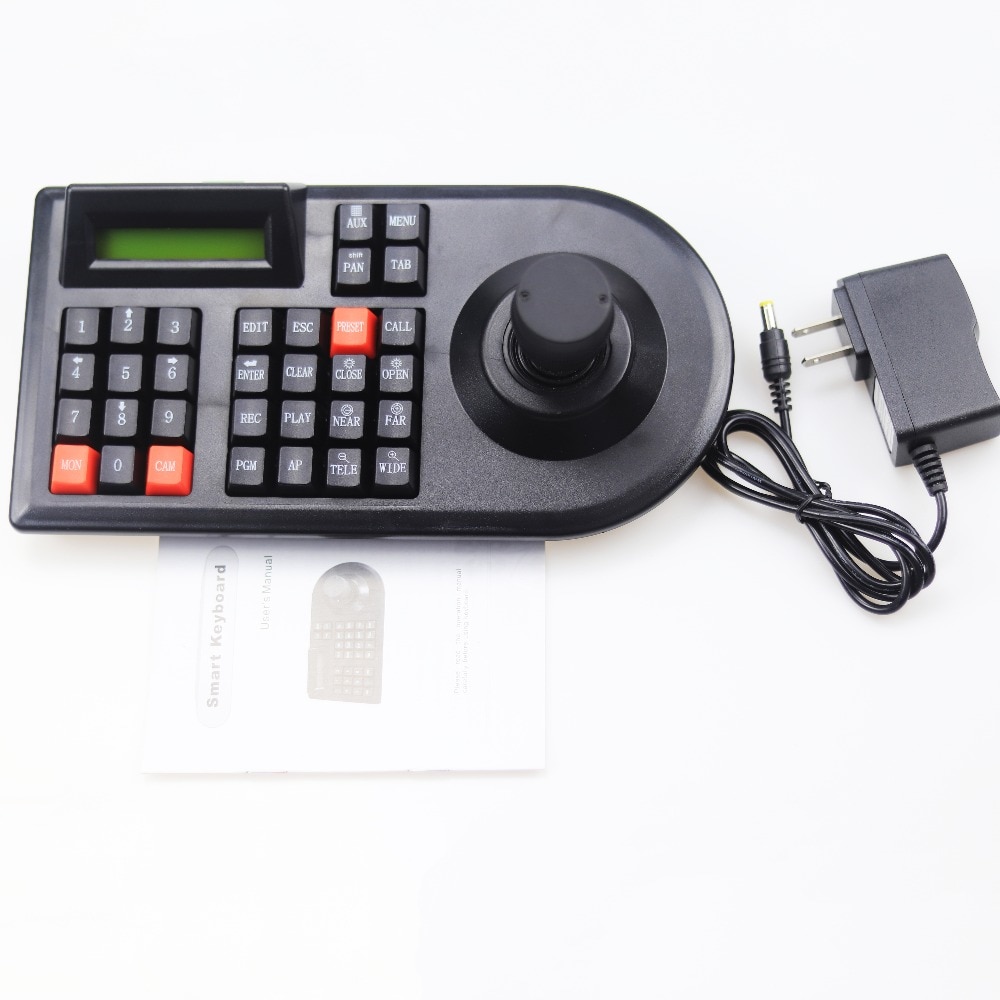

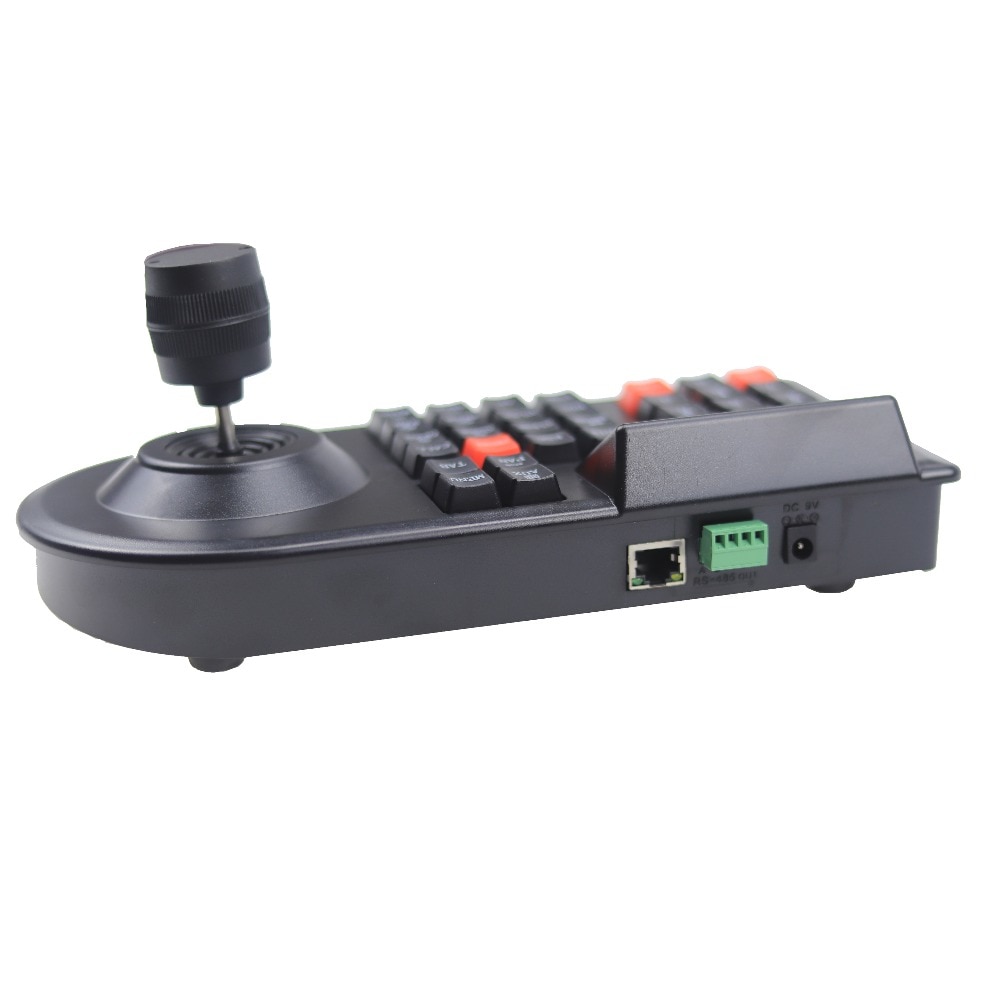

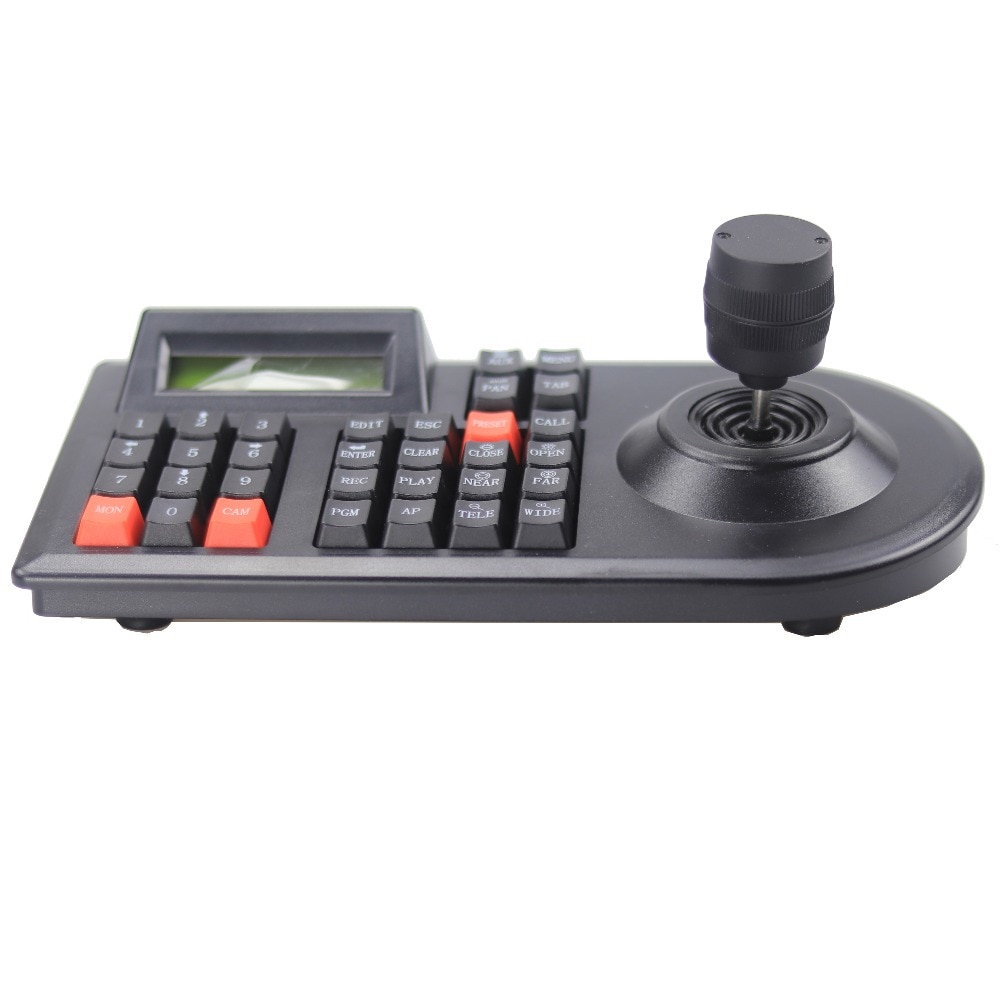

GZGMET 64 Set CCTV Analog Network Camera Handle Joystick DVR PTZ 3D RS485 Speed Dome Pelco-D / P C

Feature

1. The keyboard is DVR, high-speed dome and decoder terminal receiver supporting products

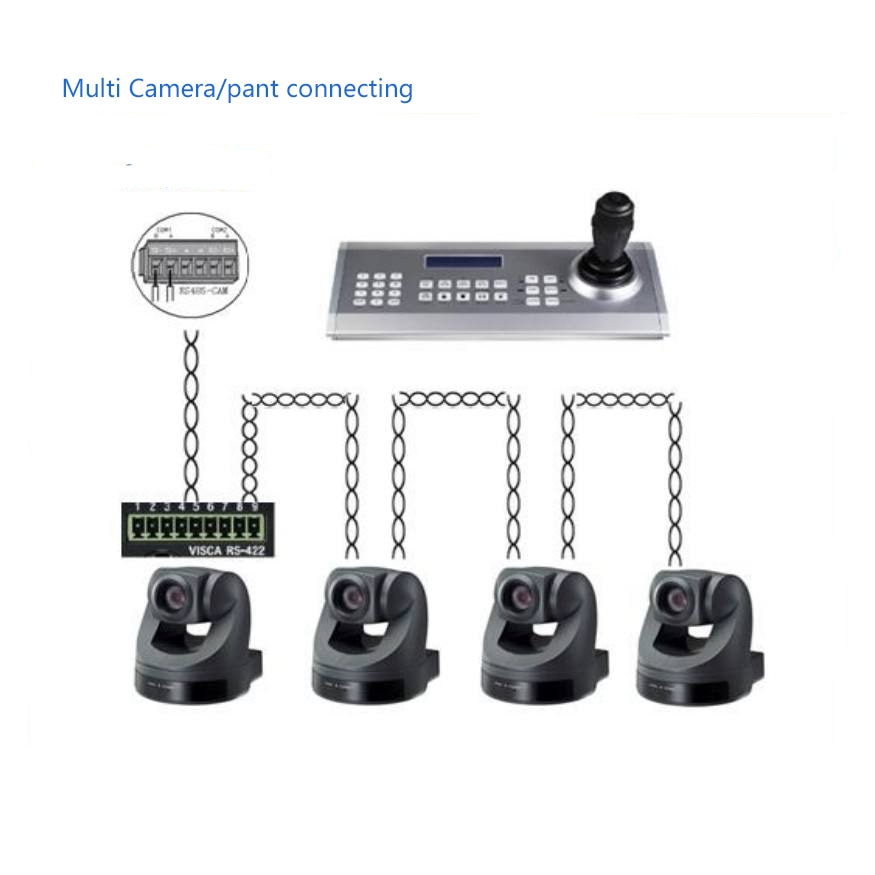

2. Keyboard and receiver adopt the EIA/RS  485 communication interfaces to achieve function control

3. Max can control 16 DVR at the same time

4. Max can control 64 Speed dome and decoder

5. The maximum communication distance of Keyboard and receiver is 1.2 KM

6. Keyboard can realized the control of front-end equipment such as scanner, lens, lights, wiper.

7. Rocker: 3D

8. Baud rate is 1200 / 2400 / 4800 / 9600bps optional

9.Compatibility Protocol: Pelco-D, Pelco-P, Hikvision, Dahua, DVR, NVR, etc

10. Power Consumption: DC9V 3W

11. Weight: 0.6kg

12. Dimension: 262*133W*42mm
