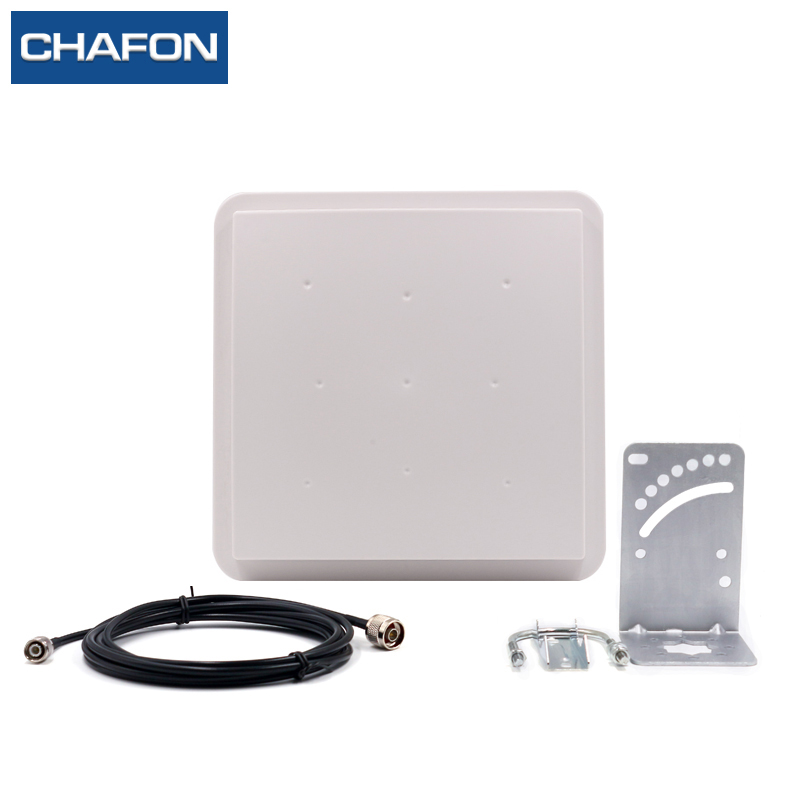

902-928 MHz circular 7dBi gain rfid uhf reader antenna used for parking lots management
902-928 MHz circular 7dBi gain rfid uhf reader antenna used for parking lots management...
902-928 MHz circular 7dBi gain rfid uhf reader antenna used for parking lots management
Product Description
|
Performance Specifications
|
||||
|
Model number
|
CF-RA7001
|
|||
|
Frequency
|
860~868MHz (EU standard)/902~928MHz (US standard) | |||
|
Gain
|
7dbi
|
|||
|
Polarization
|
HCP
|
|||
|
Half-power beam width(°)
|
Hor: 65 Vert:65
|
|||
|
V.S.W.R
|
≤1.4
|
|||
|
Front-to-back ratio(dB)
|
≥20
|
|||
|
Maximum input power(W)
|
100W
|
|||
|
Impedance
|
50 Ω
|
|||
|
Lightning protection way
|
DC Ground
|
|||
|
Mechanical specification
|
||||
|
Cable Connector
|
TNC-male(default)
|
|||
|
Antenna Connector
|
N-female
|
|||
|
Connector position
|
Bottom
|
|||
|
Size(mm)
|
260*260*35mm
|
|||
|
Antenna weight(kg)
|
1.2
|
|||
|
Packing weight(kg)
|
1.35
|
|||
|
Wind loading area(㎡)
|
≤0.2
|
|||
|
Rated wind velocity(m/s)
|
60
|
|||
|
Radome material
|
ABS
|
|||
|
Reflector material
|
Aluminum
|
|||
|
Antenna color
|
White
|
|||
|
Operating temperature(℃)
|
-40～+70
|
|||
|

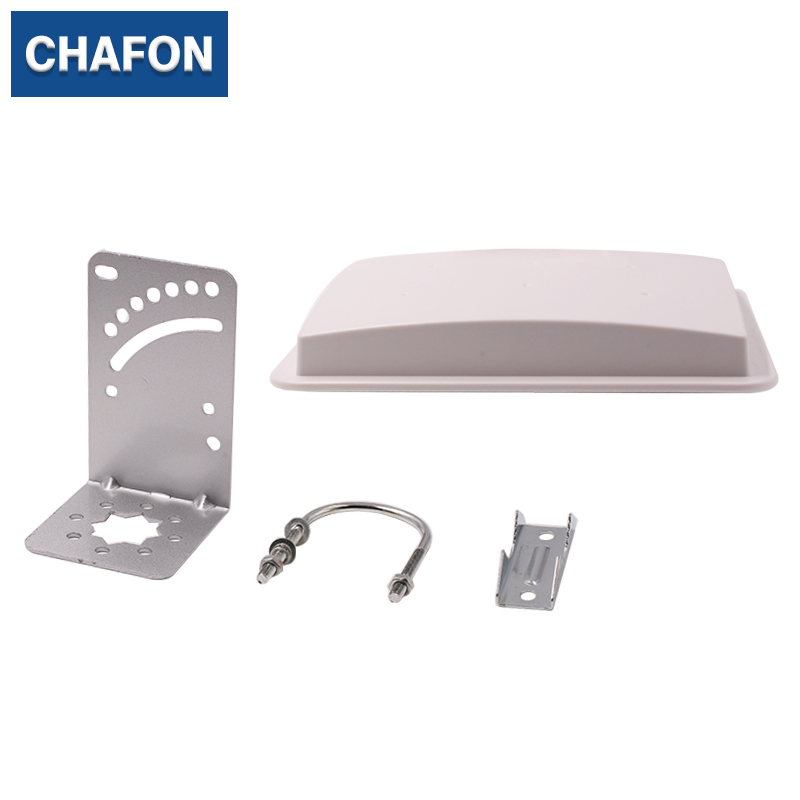

Mounting hardware（mm）
|
Ф40～50
|
|||
