5.5dBi 902~928MHz circular uhf rfid chip and antenna with N-female connector for parking lots
5.5dBi 902~928MHz circular uhf rfid chip and antenna with N-female connector for parking lots...
5.5dBi 902~928MHz circular uhf rfid chip and antenna with N-female connector for parking lots
Product Description
|
Performance Specifications
|
||||
|
Model number
|
CF-RA5003
|
|||
|
Frequency
|
860~868MHz (EU standard)/902~928MHz (US standard) | |||
|
Gain
|
5.5dbi
|
|||
|
Polarization
|
Circular polarization
|
|||
|
Half-power beam width(°)
|
Hor:70° Ver:65°
|
|||
|
V.S.W.R
|
≦1.4
|
|||
|
Front-to-back ratio(dB)
|
≧11
|
|||
|
Maximum input power(W)
|
50W
|
|||
|
Impedance
|
50 Ω
|
|||
|
Lightning protection way
|
DC Ground
|
|||
|
Mechanical specification
|
||||
|

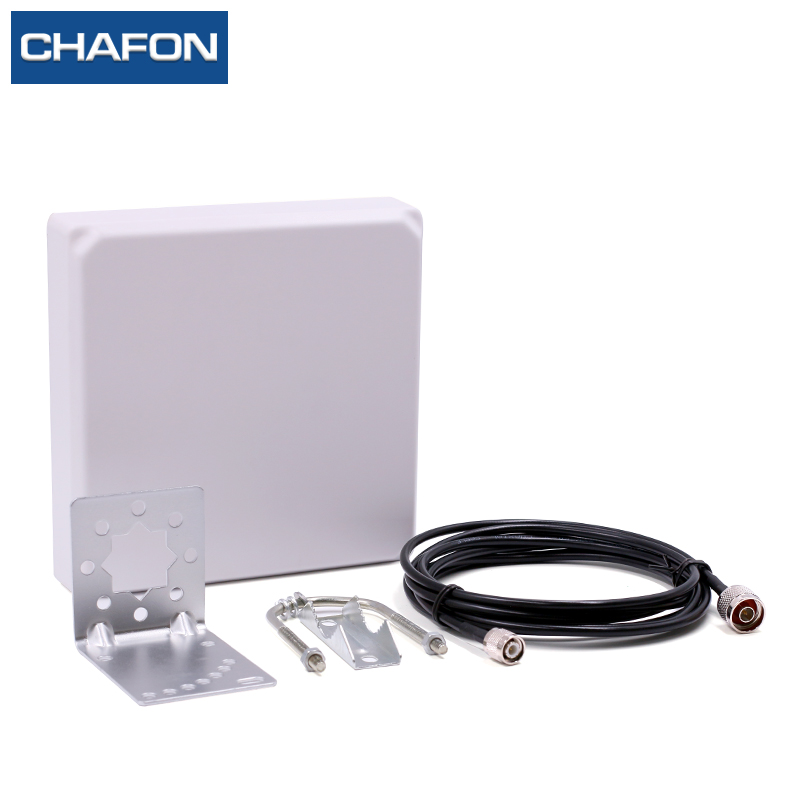

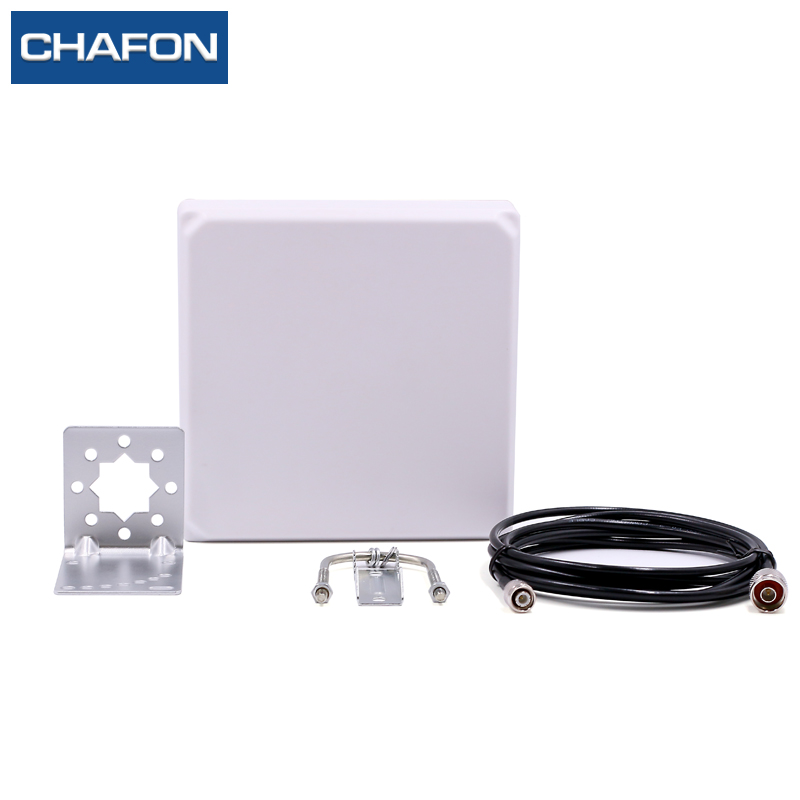

Cable Connector
|
TNC-male(default)
|
|||
|

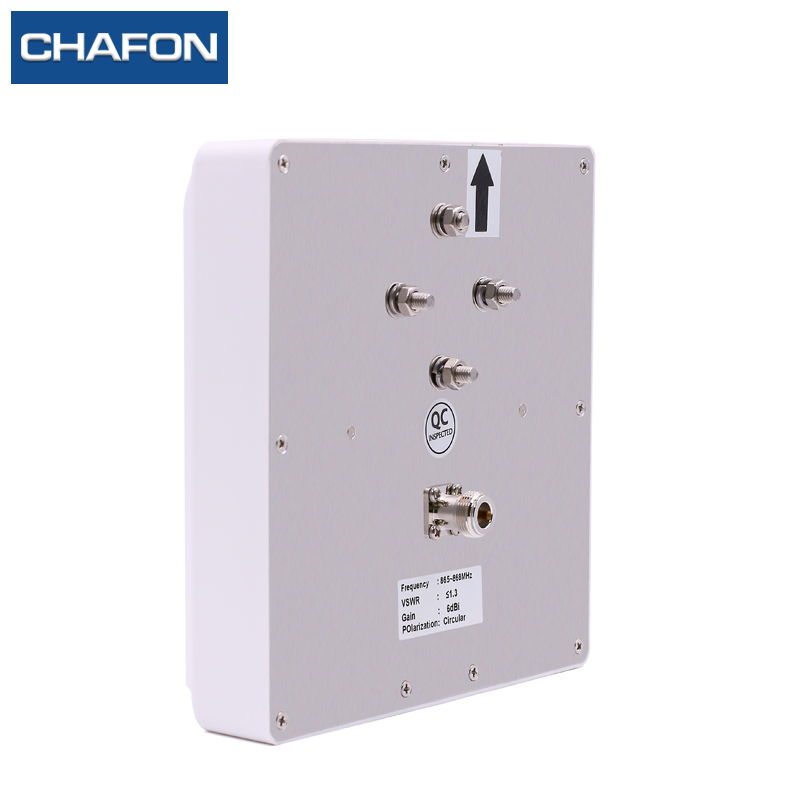

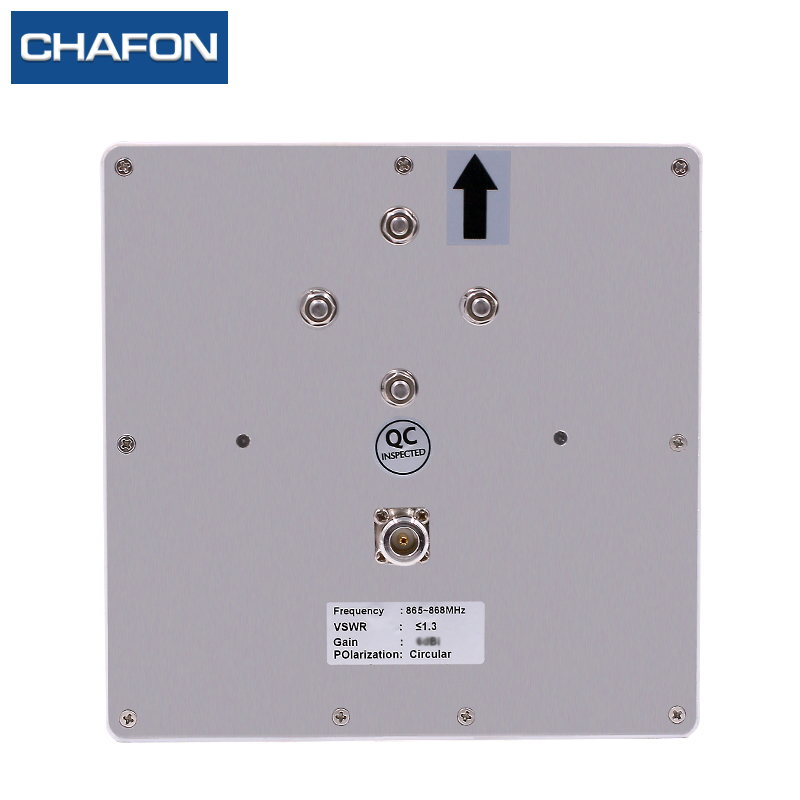

Antenna Connector
|
N-female
|
|||
|
Connector position
|
Bottom
|
|||
|
Size(mm)
|
190*190*35mm
|
|||
|
Antenna weight(kg)
|
0.7kg
|
|||
|
Degree of protection
|
IP55
|
|||
|
Antenna color
|
White
|
|||
|
Wind resistance
|
100 km/h
|
|||
|

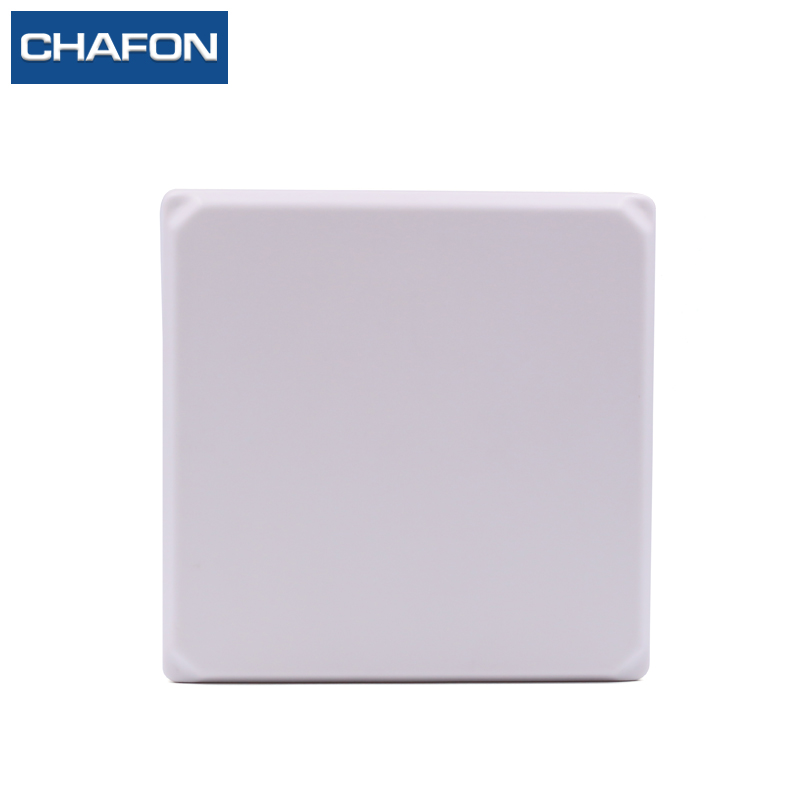

Radome material
|
ABS
|
|||
|
Reflector material
|
Aluminum
|
|||
|
Operating temperature
|
-40～70℃ | |||
