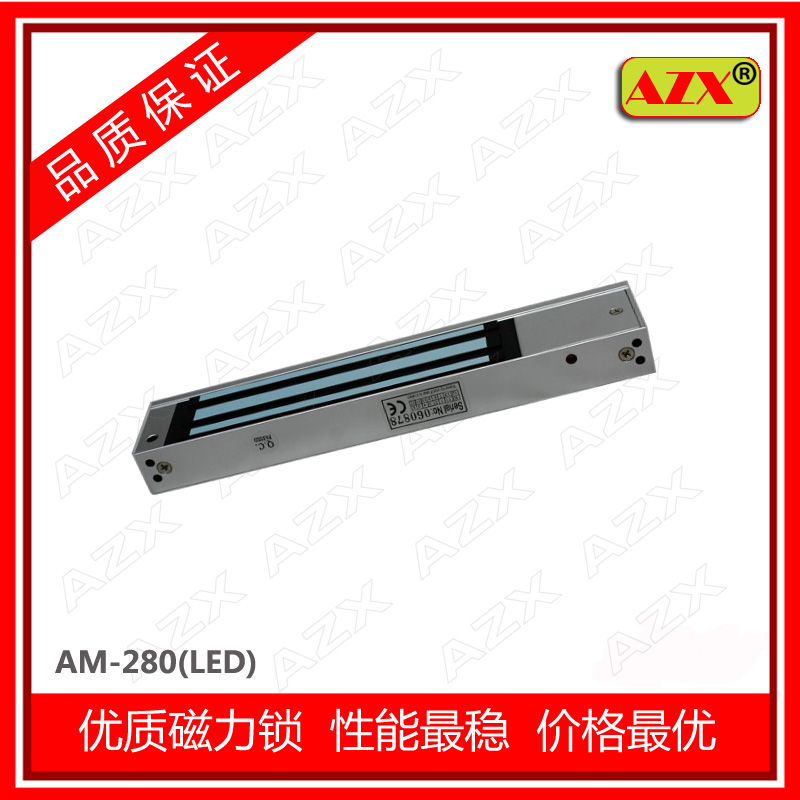

Product Name:280Kg Single Door Magnetic Lock
Usage:Access control system output for external devices , suction force generated by DC12V voltage path and is widely used in all kinds of doors tools, suitable for installation in steel doors, fire doors , doors , etc.
Features:
- 280kg (600Lbs) static linear tension
- Factory set to 12VDC voltage standard
- Built-in reverse current protection device (MOV)
- Suitable for wooden doors, glass doors, metal doors, fire doors
- Anti residual magnetism design, selection of materials imported iron
- The shell is made of high-strength aluminum alloy, Anodized
- Magnetic locks no mechanical failure, complete with electromagnetic suction work
- Increase the electromagnetic suction , professional design, insulated double lock
- Products certified by China MA
Product parameters :
- Lock Size : Length Width 250x height 48x 25 (mm)
- Blister Dimensions: Length Width 180x height 38x 11 (mm)
- Maximum tension : 280kg (600Lbs) straight Rally
- Input voltage : DC12V
- Current : 12V/450mA
- Applicable : Wooden door , glass doors, metal doors, fire doors
- Surface temperature: +20 ° below ambient temperature within
- Temperature : -10 ~ +55 ° (14-131F)
- Suitable Humidity : 0 ~ 95% ( relative humidity )
- Shell: Anodized aluminum
- Lock handle : Environmental plating
- Blister Treatment: environmental plating
- Weight : 2kg
