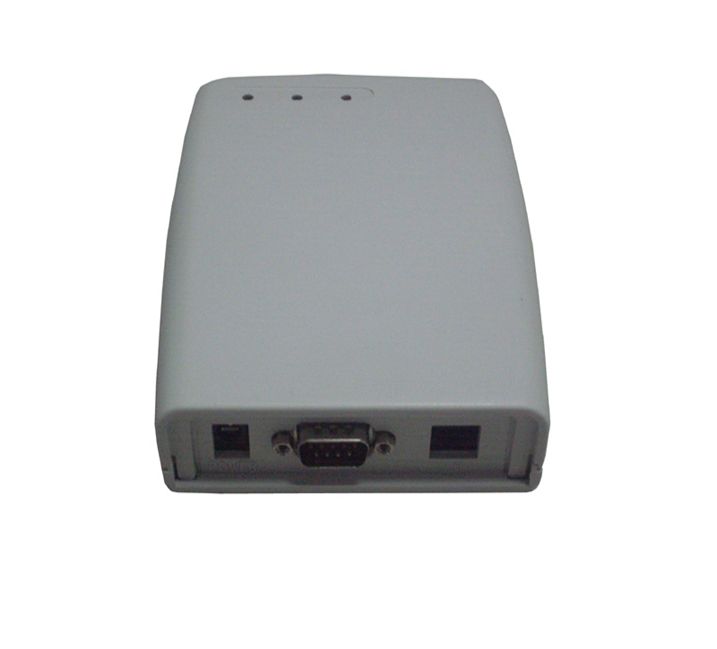

RFID UHF EPC Desktop Reader/Writer RS232
Desktop Passive UHF RFID tag Reader/Writer ZK-RFID106
- Working frequency: 902～928MHz customized
- Read/write distance: read distance 0-300MM, write distance: 0-30MM
- Support Protocol: supports UHF EPC Gen2(ISO18000-6C), ISO18000-6B protocol electronic tags
- Support Interface: supports RS232, Wiegand Interfaces
- Working mode: FHSS or Fixed frenquency transmission.
- Output power: maximum 30dbm(adjustable)
- Provide DLL and Demonstration Software source code to facilitate further development.
- Low power disspation with single +6V DC power supply.
- Support Interactive and Active working mode.
- Output format and parameters can be set under active working mode.
- 123mmx94mmx29mm Net weight: 144g
