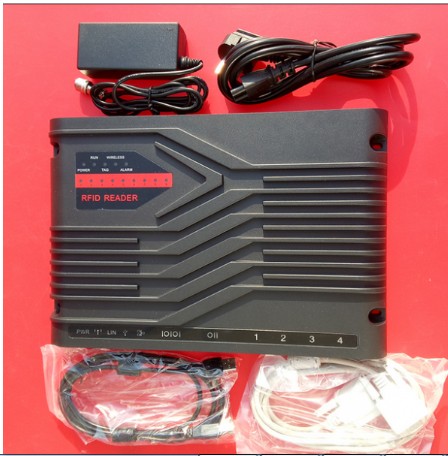

RFID UHF EPC 4 CH Reader Station External Antenna TCP/IP Entry Level Core
Four-channel split reader
- Support tags protocol: EPC CLASS1 G2、ISO18000-6B standards.
- Work frequency:860-928MHz
- Read/write range depends on the antenna read range.
- Four output external TNC antenna port.
- input interfaces:RS232,RS485,RJ45(TCPIP),GPIO ,etc.
- support Monza4QT tags.
- Equipped with indicator Led and buzzer.
- work ways:FHSS or fixed frequency transmission.
- Output power: maximum 30dbm(adjustable)
- work modes : Auto-running mode, interactive mode, trigger-activating, etc.
- Low power disspation with single +9V DC power supply.
- High reliability design to meet extreme work environment conditions.
- internal Sizes: 230x170x40MM N.W: 2300g
