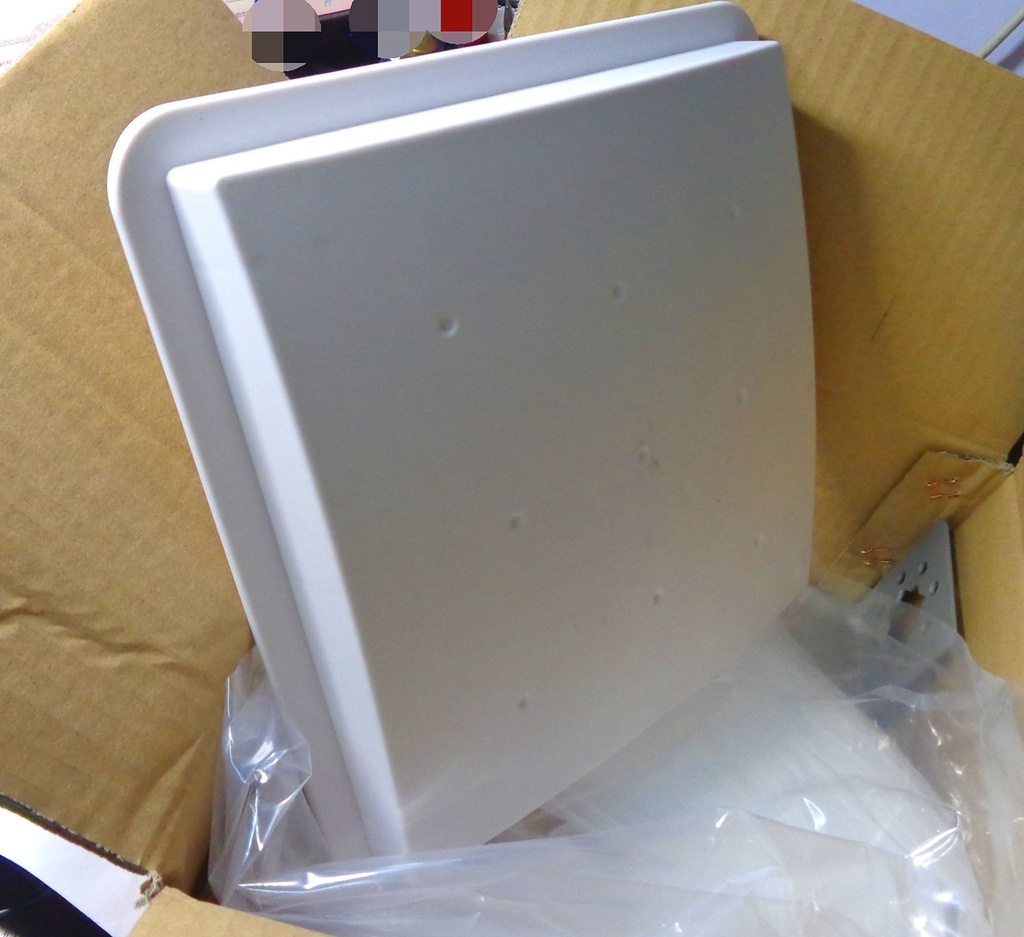

RFID UHF Gain 8dBi Antenna 865-867/902-928 MHz External Antenna 5M N-Female

Parameter：

• Frequency Range ：902-928MHz （Compatible 840-960MHz）
• Gain ：8dBi
• Detection range from 0 - 5 metre
• Horizontal Beamwidth： 68°
• Vertical Beamwidth： 68°
• F/B Ratio：≥20dB
• VSWR：≤1.3
• Nominal Impedance：50Ω
• Polarization ：Circularly polarized
• Maximum Power：50W
• Connector：N (Female)
• Dimensions：225×225×35mm
• Weight ：1.3kg
• Installation ：Embrace rod installation (optional clip code)
• Mounting Mast Diameter ： φ40～50mm
• High performance, high gain, low standing wave;
• Light weight, small volume, low profile;
• Anticorrosive ability

 NOTE：

1. 902MHz~928MHz (USA standard) The antenna application of the UHF RFID system.
2. Compatible with the Europe standard(865~868MHz) and China standard(920~925MHz) ect.
3. Can be applied to passive UHF RFID commercial system such as warehousing, logistics, inventory ect.
4. Can be used with the reader of Impinj R2000, Austriamicrosystems AS3992 or PR9000 ect.
