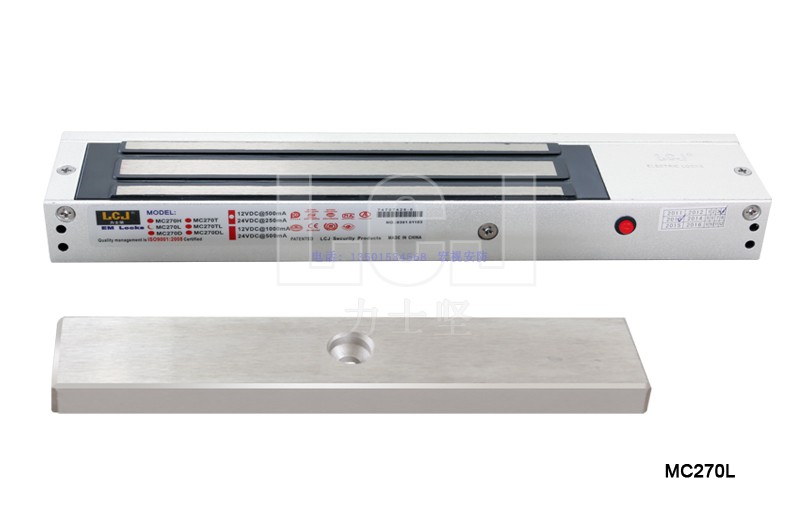

Lixkin LCJ authentic MC270L single door magnetic lock access control electronic lock single door open-mounted type

MC270L product

featu

res A. Product functions: power on and lock, power off and unlock, realize the dual-

color

LED indicator lights for exit and entry and exit permission management of smart buildings, office buildings, communities, etc., realiz

e the

disp

lay of

door opening

and c

losing status. Do

or, lo

ck status NO (normal open), NC (nor

mal cl

osed) signal output

B. Sc

ope of a

pplica

tion: MC270L magn

etic l

ock is widely u

sed in

various gardens and community entra

nces a

nd exits, and is suitable for external doors, internal doors (

with P

LMC270 auxilia

ry bra

ckets and PZMC2

70 aux

iliary brackets) and u

nedged

glass doors (with PU

MC270

auxiliary brack

ets to

achieve 90-degree exter

nal do

ors). Suitable for single-d

oor st

ructure metal doors, woode

n door

s, stainless s

teel d

oors, fire

doors,

fir

e door

s, e

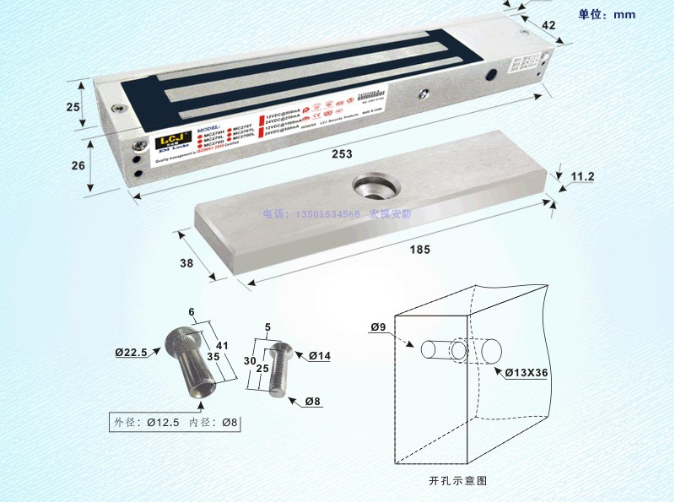

tc.   MC270L technical parameters Working principle: power on and lock, power off and unlock Working voltage: DC12V / DC 24V ±10% (circuit board adjustable) Working current: 500mA / 250mA Power: 6W Working temperature rise: ≤ room temperature +20℃ Side tension resistance: 270 kg Indicator light: with two-color indicator light (red when the door is opened; green when the door is closed and locked) Door lock signal output: with door and lock status signal output (with NO (normally open), NC (normally closed) signal output; the overload of this signal should not exceed DC30V/1.0A Working life: More than 20 years of use Ambient temperature: -20~55℃ Circuit: Built-in reverse current protection device (MOV) Lock body material: silicon steel sheet, copper enameled wire, aluminum alloy Adsorption plate material: Extra-grade electromagnetic pure iron Lock body size: L253×W48×H26(mm) Adsorption plate size: L185×W38×H11.2(mm) Exit hole center position (mm): 55mm from the rightmost end of the lock body Installation type: single door, surface-mounted type Door opening angle: 90 degrees
