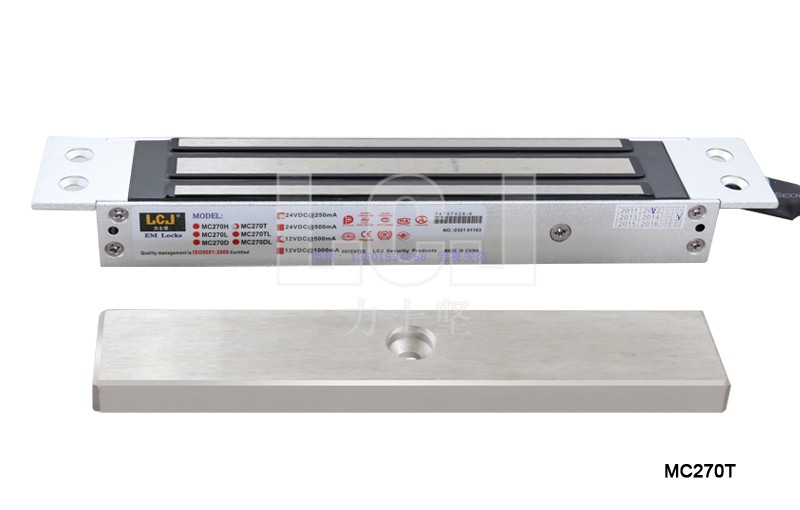

Lixkin LCJ authentic MC270T single door magnetic lock access control electronic lock single door concealed type

MC270T produc

t feat

ures A. Product functions: MC270T magnetic lock is equipped with electr

ical l

ock power supply, access control machine (one card system, access control system, build

ing sy

stem), door o

pening

swi

tch, r

emote control and

other

products to realize entrance and e

xit co

ntrol management.

B. Sco

pe of ap

plicat

ion: MC270T magne

tic lo

ck is widely us

ed in

various

garden

s and commu

nity e

ntrances and e

xits,

and is suitable

for e

xternal and internal d

oors.

MC270T magnetic lock

applic

ation scope: si

ngle-d

oor structure metal doors, wood

en doo

rs, stainless steel doors, firep

roof d

oors, fire doors, etc.

MC270

T technical parameters

Wo

rking principle: powe

r on a

nd lock, power

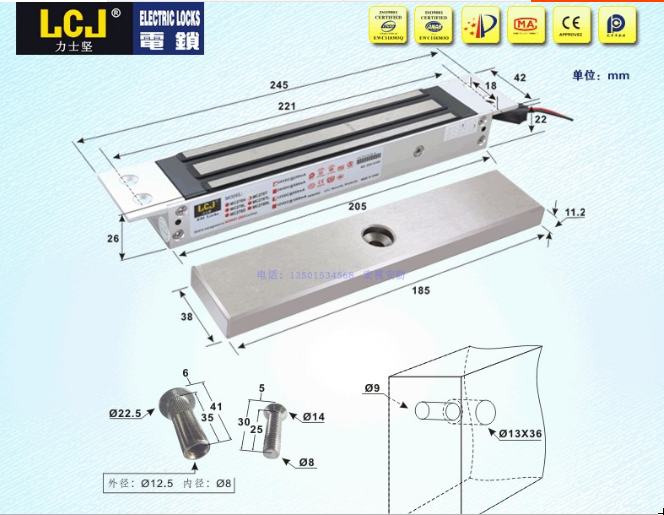

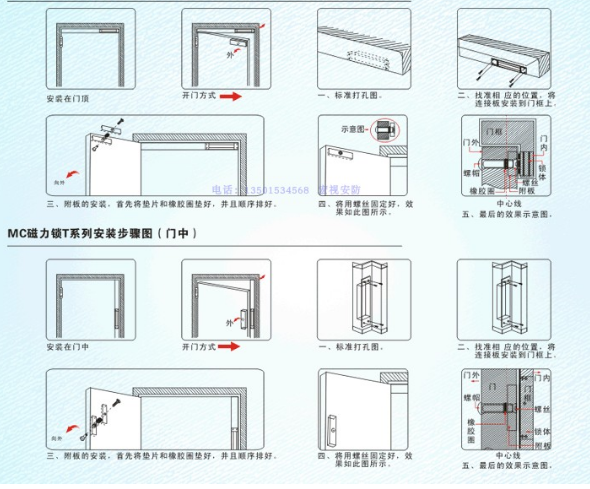

off and unlock Working voltage: DC12V / DC 24V ±10% (circuit board adjustable) Working current: 500mA / 250mA Power: 6W Working temperature rise: ≤ room temperature +20℃ Side tension resistance: 270 kg Indicator light: None Door lock signal output: None Working life: More than 20 years of use Ambient temperature: -20~55℃ Circuit: Built-in reverse current protection device (MOV) Lock body material: silicon steel sheet, copper enameled wire, aluminum alloy Adsorption plate material: Extra-grade electromagnetic pure iron Lock body size (with ears on both sides): L245×W42×H26(mm) Lock body size (without both ears): L205×W42×H26(mm) Adsorption plate size: L185×W38×H12(mm) Exit hole center position (mm): 20mm from the rightmost end of the lock body Installation type: single door, concealed type (embedded installation) Door opening angle: 180 degrees Side opening
