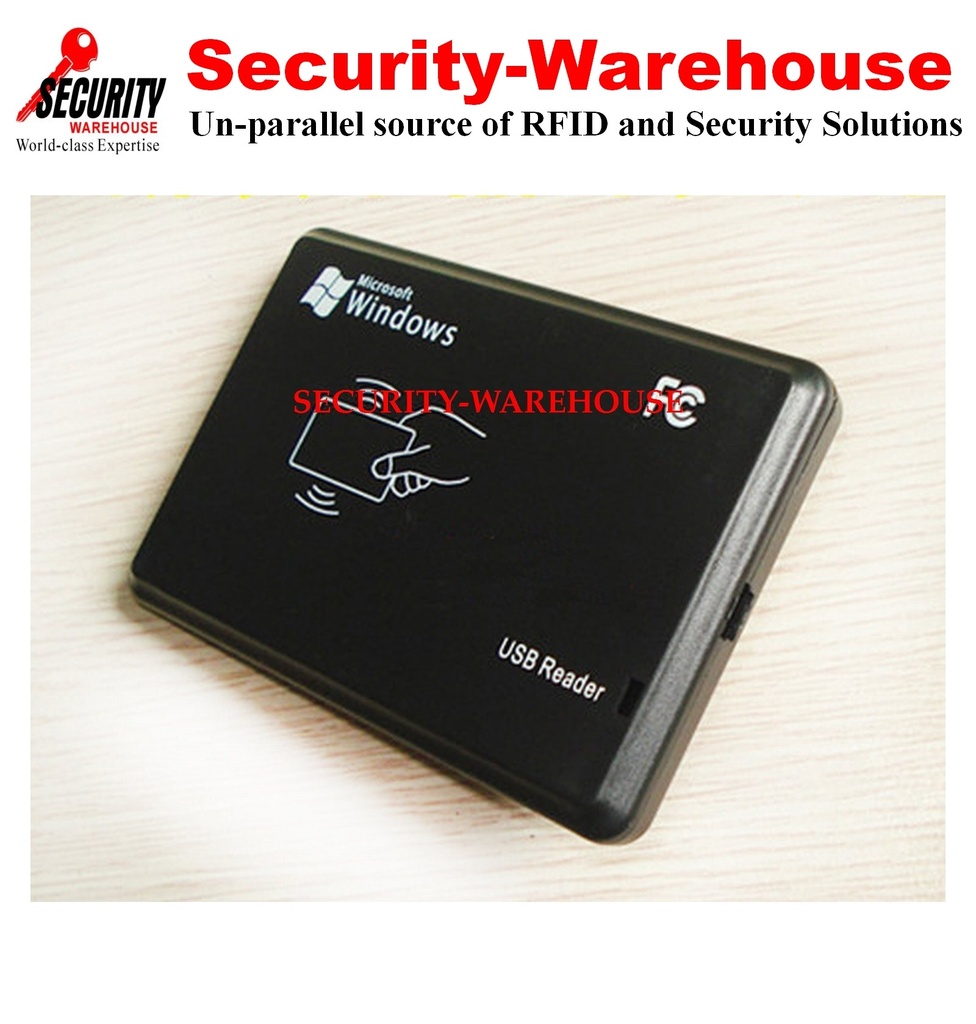

RFID 13.56 MHz ISO 14443A NFC IC NTAG reader writer desktop USB NTAG203/213/216
RFID 13.56 MHz ISO 14443A NFC/IC/NTAG reader writer desktop USB NTAG203/213/216
High performance ARM core processors, professional RF IC, software On the Protocols, algorithms, and so was Carefully Optimum, stable, high-speed read and write operations to complete the card.Connect with USB-interface to PC machine communication, do not need to install the driver, use theConvenient。
Software development of product support, users do not need to understand complex ISO14443A card reader and USB interface communication protocol of agreement, all of which have been packaged into a simple DLL interface function, simply call these functions to achieve card read and write operations. Can easily and quickly bring the reader integrated into existing systems.Secondary development provides a wide range of development languagesSource codeInstance, to help users quickly develop.
Performance parameter:
|
The name |
Characteristic parameters |
|
Interface |
USB |
|
Working frequency |
13.56MHz |
|
RF standard |
ISO14443A |
|
Supported card types |
Fudan University: FM11RF08, and FM11RF32, FM1208, FM1216,FM12CD32 : Classic 1K(S50)、 Classic 4K(S70)、Ultralight、Ultralight C、 DESFire、 ProX、NTAG203、NTAG210,NTAG212,NTAG213,NTAG215,NTAG216
Other compatible card |
|
Sensing distance |
100mm (S50 typical distance, depending on the actual card antenna structure and size) |
|
SDK compatible |
Windows 98/2000/NT/XP/Vista/7/8 |
|
Supported languages |
VC、C#、BC、DELPHI、PB、VB、VB. NET and other |
|
Display |
Red and green bi-color LED |
|
Buzzer |
Have |
|
Power supply |
USB powered, DC5V |
|
Working current |
120mA |
|
Working temperature |
-40 ° c ~ 85 ¡æ |
|
Overall dimensions |
70mm*105mm*12mm (±0.5) |
|
Weight |
Bare-metal 50g |
|
Colour |
Black |
