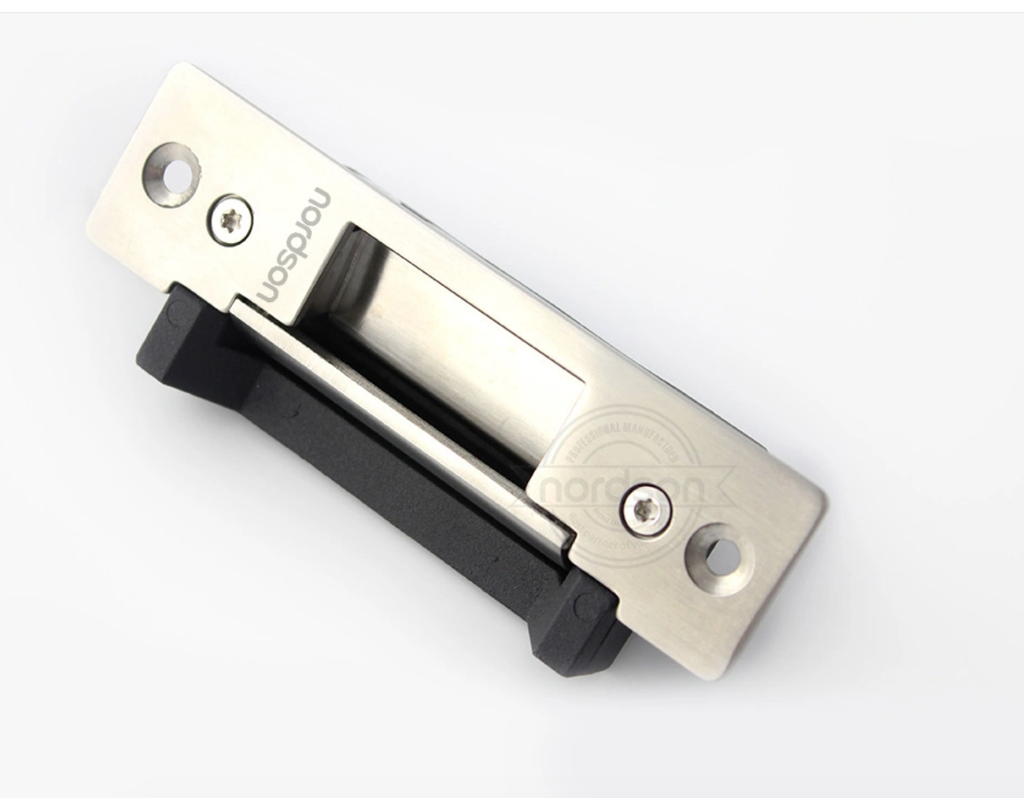

Fail-Secure / Fail-Safe 12VDC Stainless Steel Narrow Mouth ANSI Glass Door Electric Door Strike

Fail-secure / Fail-safe 12VDC Stainless Steel narrow mouth ANSI glass door electric door strike
overview:
NJ-320A is heavy-duty-type ANSI standard electric strike for US market.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
Function:
1.Pass 1600lbs super linear static thrust test
2.Mode option:Fail-unlocked/Fail-locked
3.Suitable for ANSI standard for US Market
4.Direct installation on Wooden,PVC,metal door frame with mounting hole
5.Pass test of high temperature aging 100,000 times
6.Made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation
7.Strike trough 15mm deep,Widely used with all kinds of mechanical lock.
8.CE Certificate & MA Certificate approved
Specification:
Version
NJ-320A:Fail-locked(the strike is locked when the current is off)
NJ-320B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength
1600Lbs(800kg)
Lock Status Sensors
NO
Rated Operating Voltage
DC 12V
Standby Current
220mA
Optional Functions
Lock Status Sensors
Face place material
Stainless Steel
Surface Temp
Low Temperature
Ambient temperature in °C
-10°C - +55°C
Suitable for
Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D)
124Lx32Wx36H(mm)
Weight in kg
0.38kg
CE-mark for building
YES
Rohs-mark for building
YES
Model NO. : NJ-320A-L-S electric door strike
Voltage : 12VDC
Current : 220mA(Nj-320A-L-S) 170mA(Nj-320b-L-S)
Weight : 0.6kg
Transport Package : Neutral Packing
Specification : CE, ROHS, SGS, GMP
Trademark : Nordson
Origin : Guangdong China
HS Code : 123456
Production Capacity : 20000
Version : NJ-320A:Fail-locked(the strike is locked when the current is off)NJ-320B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength : 1600Lbs(800kg)
Lock Status Sensors : NO
Rated Operating Voltage : DC 12V
Standby Current : 220mA
Optional Functions : Lock Status Sensors
Face place material : Stainless Steel
Surface Temp : Low Temperature
Ambient temperature in °C : -10°C - +55°C
Suitable for : Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D) : 124Lx32Wx36H(mm)
Weight in kg : 0.38kg
CE-mark for building : YES
Rohs-mark for building : YES
