DC12V/24V Ultra Low Power Consumption Door Contact Magnetic Wall Mount Door Holder

Wall Mount Door Contact Magnetic Door Holder with Ultra Low Power Consumption
overview:

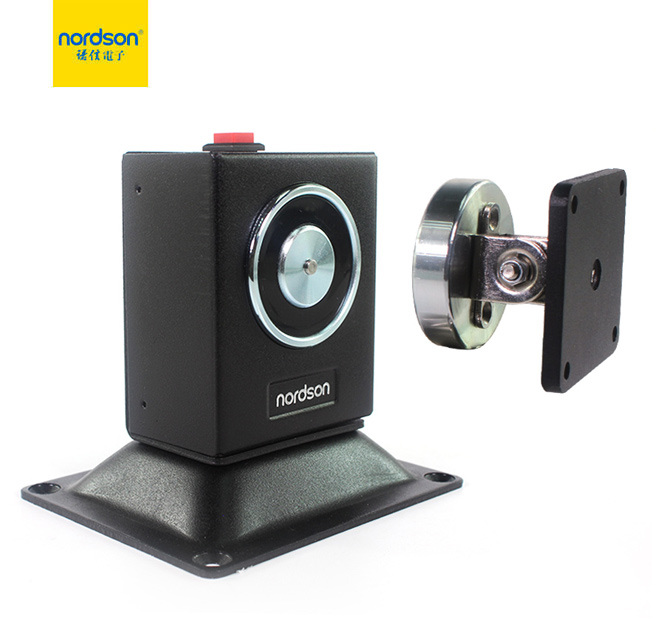

NP-G150 is standard
door holder magnets
with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.
Function:
1.Pass 100Lbs super linear static thrust test
2.Double release modes: Power off & Manual button
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design
5.No residual magnetic design with stable performance
6.Passive switch signal output
7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket
Specification:
Version
Fail-unlocked
Holding Force
50kg(100Lbs)
Standard Functions
Manual door release button
Lock Status Sensors
NO
Rated Operating Voltage
DC 12V or 24V (Adjustable)
Current consumption
12V/180mA 24V/85mA
Surface finish
Paint and Zinc plated
Ambient temperature in °C
-10°C - +55°C
Suitable for
All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D)
118L*93W*112H(mm)
Armature Plate Dimensions(L x W x D)
65L*65W*53H(mm)
Weight in kg
1.4kg
CE-mark for building
YES
Rohs-mark for building
YES
Model NO. : NP-G150
Control : Automatic
Punching : Punching
Usage : Normal Door, Fire Door, Glass Door, Channel Lock, Household Door Locks, Bedroom
Customized : Non-Customized
Version : Fail-Unlocked
Holding Force : 50kg(100lbs)
Standard Functions : Manual Door Release Button
Lock Status Sensors : No
Rated Operating Voltage : DC 12V or 24V (Adjustable)
Current Consumption : 12V/180mA 24V/85mA
Surface Finish : Paint and Zinc Plated
Ambient Temperature in °c : -10 Degree Centigrade - +55 Degree Centigrade
Magnets Dimensions(L X W X D) : 118L*93W*112h(mm)
Armature Plate Dimensions(L X W X D) : 65L*65W*53h(mm)
Transport Package : Standard CTN Box
Specification : 80L*80W*110H(mm)
Trademark : NORDSON
Origin : Guangdong Province, China
HS Code : 8543709990
Production Capacity : 100, 000
Version : Fail-unlocked
Holding Force : 50kg(100Lbs)
Standard Functions : Manual door release button
Lock Status Sensors : NO
Rated Operating Voltage : DC 12V or 24V (Adjustable)
Current consumption : 12V/180mA 24V/85mA
Surface finish : Paint and Zinc plated
Ambient temperature in °C : -10°C - +55°C
Suitable for : All Kind of Single & Double Smokeproof Doors
Magnets Dimensions(L x W x D) : 118L*93W*112H(mm)
Armature Plate Dimensions(L x W x D) : 65L*65W*53H(mm)
Weight in kg : 1.4kg
CE-mark for building : YES
Rohs-mark for building : YES
