390-418 Mhz dual-band wireless remote analyzer support variety chipset decode code scan grabber vibration frequency
The wireless remote control analyzer 390-418 Mhz double-frequency standby at the same time

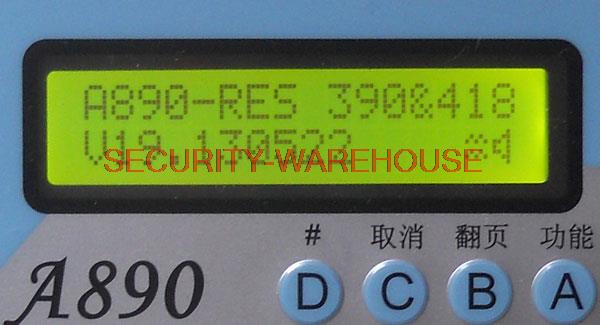

Screen shows the actual frequency, is 390-418 Mhz!
Features:
- Low 390-418 Mhz double-frequency standby (other frequency can be customized)
- Low industrial CPU high stable response quickly
- Automatic identification of low multiple chip (fixed code, learning code, rolling code)
- Low speed automatically, the adaptive chip vibration resistance, vibration resistance and show the actual conversion
- Low for encoding chip level editor (chip, resistance/cycle, address, data code)
- Low frequency of two different voiceMachine without this feature (piracy)

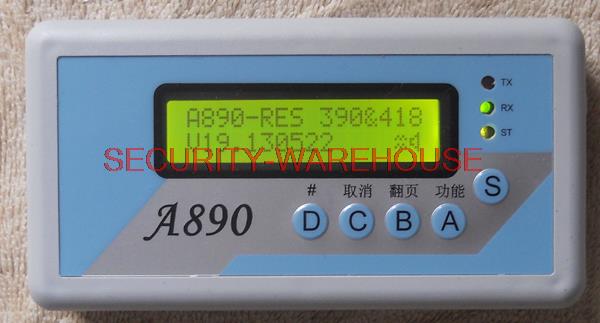

- LCD display, all functions through the menu Settings, operation is simple and intuitive
- 35 group memory automatically saved, large capacity, power is not lost
- Low adjustable backlight model (to be automatic, normally open, often shut)
- Low built-in antenna

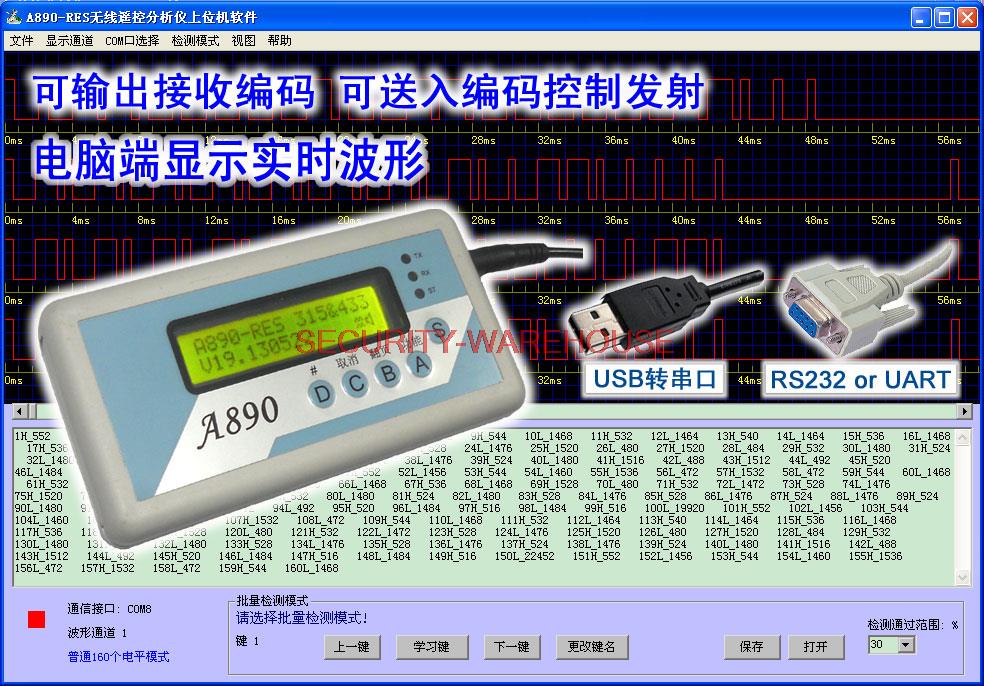

- Low connection computer can display real-time waveform (piracy machine without this feature)
- Double frequency universal relay function, magnification increase remote control distanceMachine without this feature (piracy)
- Low self-check program can be remote fault detection after the machines are soldMachine without this feature (piracy)
Parameters:
Working frequency: 390-418 Mhz (dual-band dual standby, other frequency can be customized)
Support chips (automatic identification) : PT2262, PT2264, SC2260, CS5211, PT2282, eV1527, PT2240, RT1527, FP527, HS527, SCL1527, MC145026, AX5326, VD5026, SMC926, SMC918, PLC168, HCS300, HCS301, HCS201 and their compatible chips (due to different prefix may not be the same, the same part number), native support most of the coding chip on downtown.
- Data interface: a serial port turn USB
- Sensitivity: - 115 DBM
- The adaptive data rate: wide range
- The input voltage: 9 v
- Working current: 18 ma
- Host size: 135 * 70 * 25 mm
