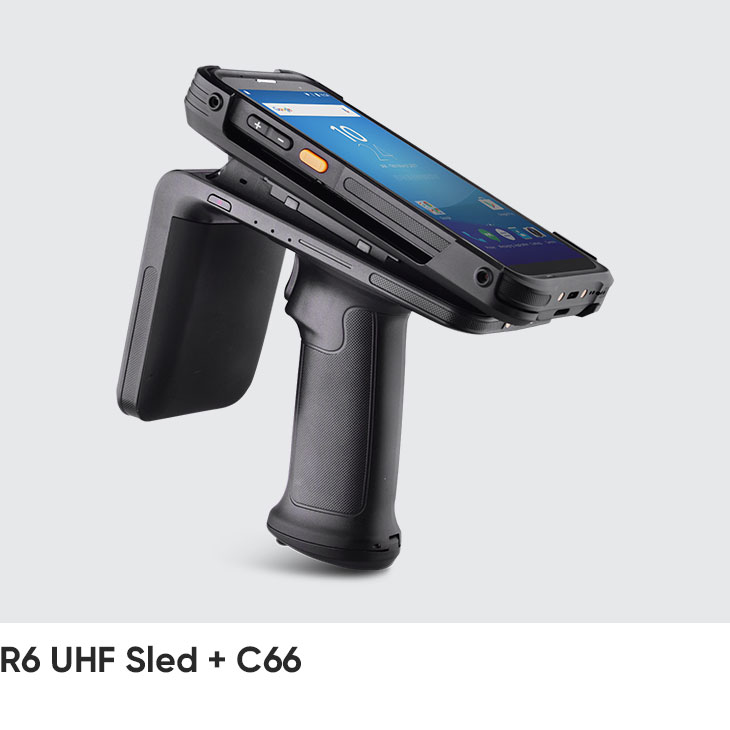

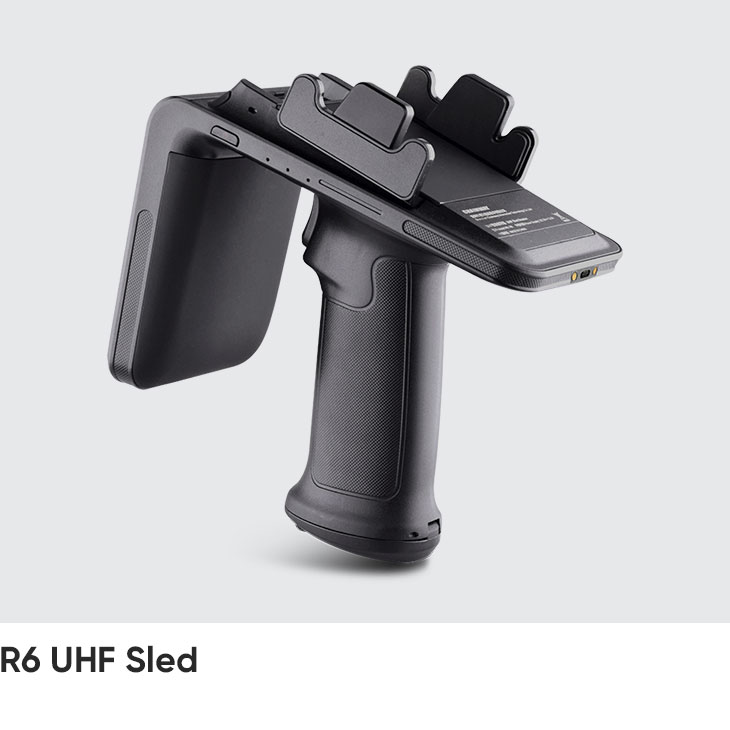

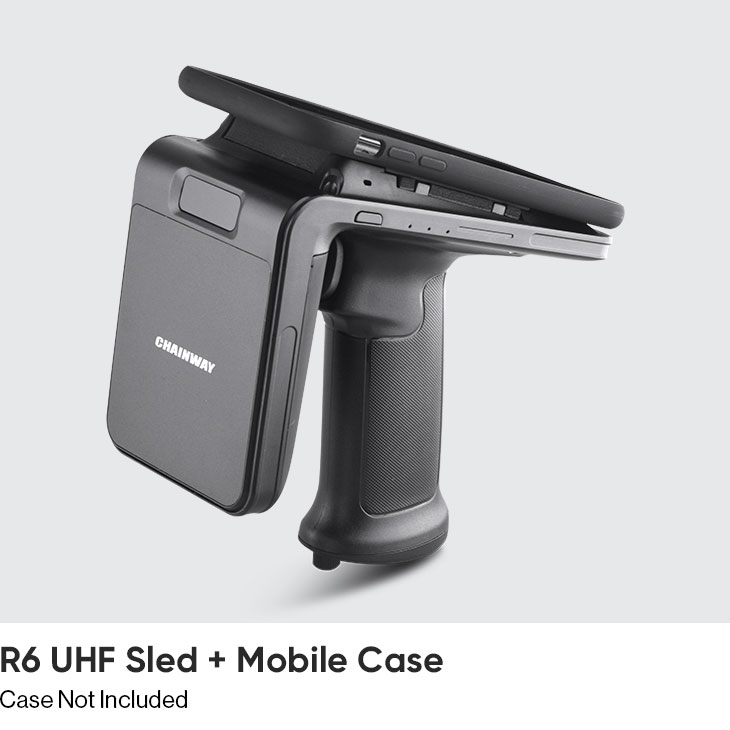

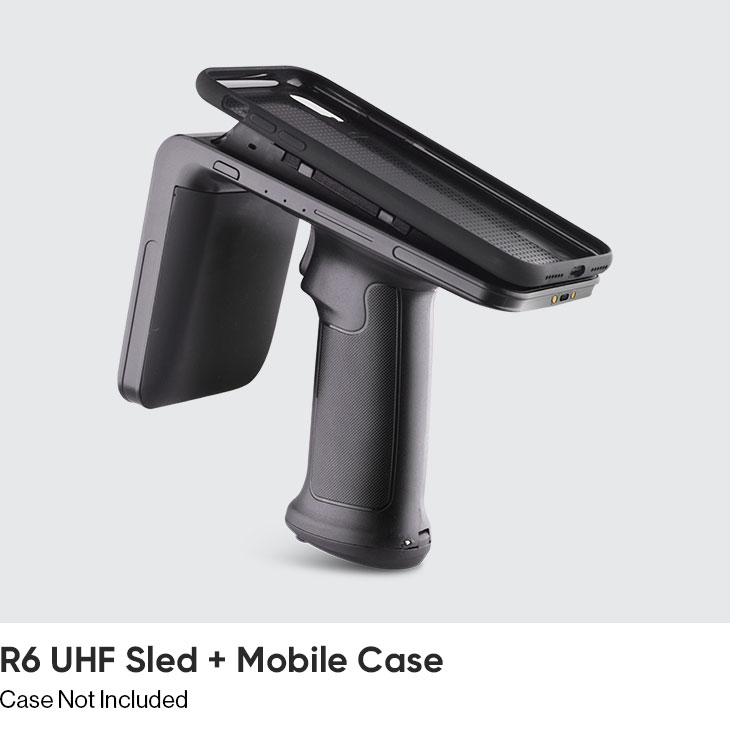

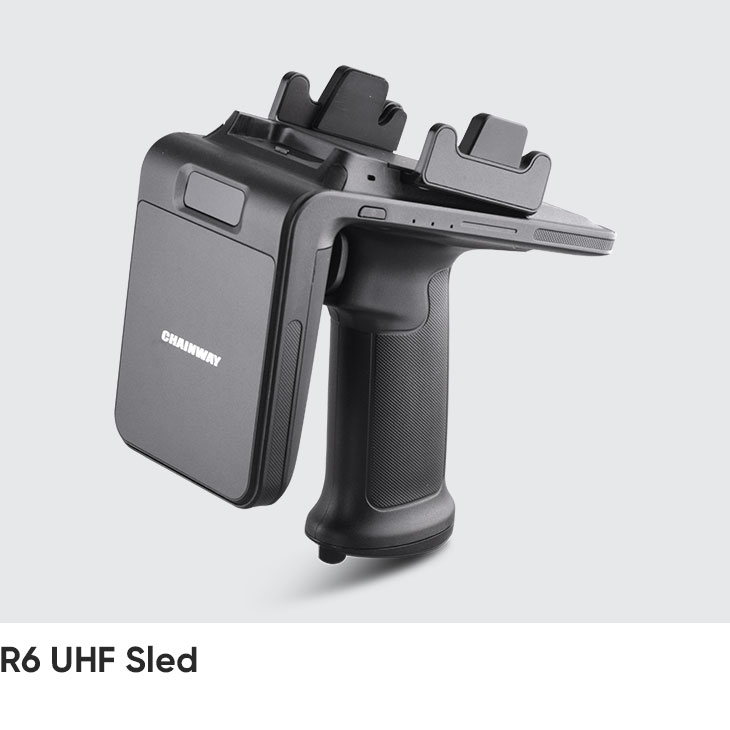

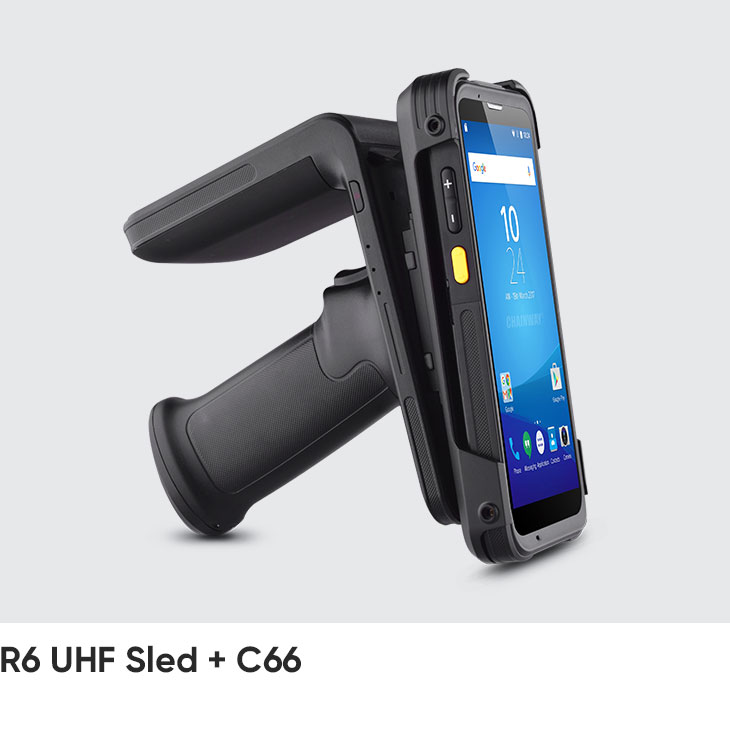

R6 UHF RFID Sled Reader
Powerful UHF Reading and Writing
Chainway R6 is specially designed for a complete one-piece solution with smart phone / PDA. Paired with Android / IOS-based smart phone and terminal, it can be easily transformed into a professional data collection device. Built with Impinj E710 / R2000, it features powerful UHF reading and writing that enables read distance of over 10m outdoors. The RFID reader is comfortable in hand, easily detached, and can fulfill tasks in power patrol inspection, apparel cycle-counting, warehousing, asset management, fleet management, finance, etc.
| Physical Characteristics | |
| Dimensions | 143 x 76 x 140 mm / 5.63 x 2.99 x 5.51 in. |
| Weight | Sled Reader: 483g / 17.04oz. Sled Reader with Mobile Case: 453g / 15.98oz. Sled Reader with Customized Holder: 500g / 17.64oz. |
| Power | Battery specification:5200 mAh Standby: over 70 hours (keeping bluetooth connected) Continuous use: up to 6 hours (UHF reading) Charging time: 3-4 hours (with standard adaptor and USB cable) |
| Buzzer | Support |
| Interfaces | USB 3.0 Type-C |
| Indicator LED | Power, Work, Bluetooth |
| Size of adapted phone | Sled Reader: Width 68~80 mm, thickness ≤ 22 mm Others: Based on phone case or holder |
| Product Material | Plastic |
| Colour | Black |
| Communication | |
| Bluetooth | Bluetooth 4.0, BLE |
| Performance | |
| MCU | Cortex-M3 72MHz |
| Storage | 20000 tags and 400 barcodes (optional) |
| User Environment | |
| Operating Temp. | -20℃~+50℃ |
| Storage Temp. | -40℃~+70℃ |
| Humidity | 5%RH - 95%RH non condensing |
| Drop Specification | Multiple 1.5 m / 4.9 ft. drops to concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5 m / 1.64 ft. falls at room temperature |
| Sealing | IP54 per IEC sealing specifications |
| ESD | ±15 KV air discharge, ±8 KV conductive discharge |
| Barcode Scanning | |
| 2D Imager Scanner | SE2707 |
| 1D Symbologies | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc. |
| 2D Symbologies | PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
| Note | *This function is optional |
| UHF RFID | |
| Engine | CM710-1 module based on Impinj E710 CM2000-1 module based on Impinj Indy R2000 |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Antenna | Circular Polarized Antenna (3dBic) |
| Power | 1W (30dBm, support +5~+30dBm adjustable) 2W Optional (33dBm, for Latin America, etc.) |
| Fastest Read Rate | 900+ tags/sec |
| R/W ranges | Up to 13m(open outdoors, Impinj MR6 tag) |
| Note | Ranges and rates depend on tags and environment |
