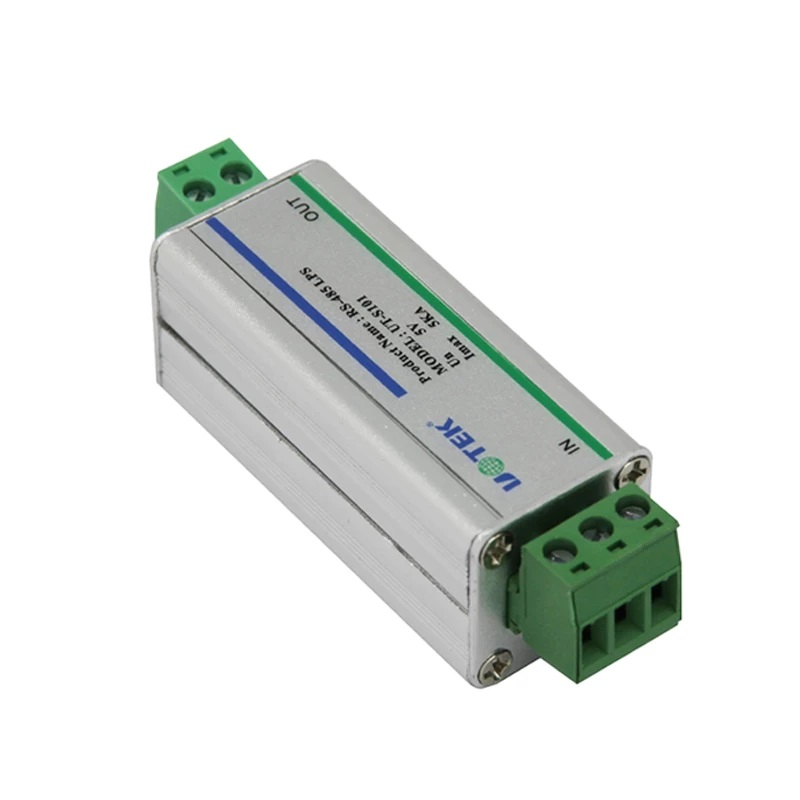

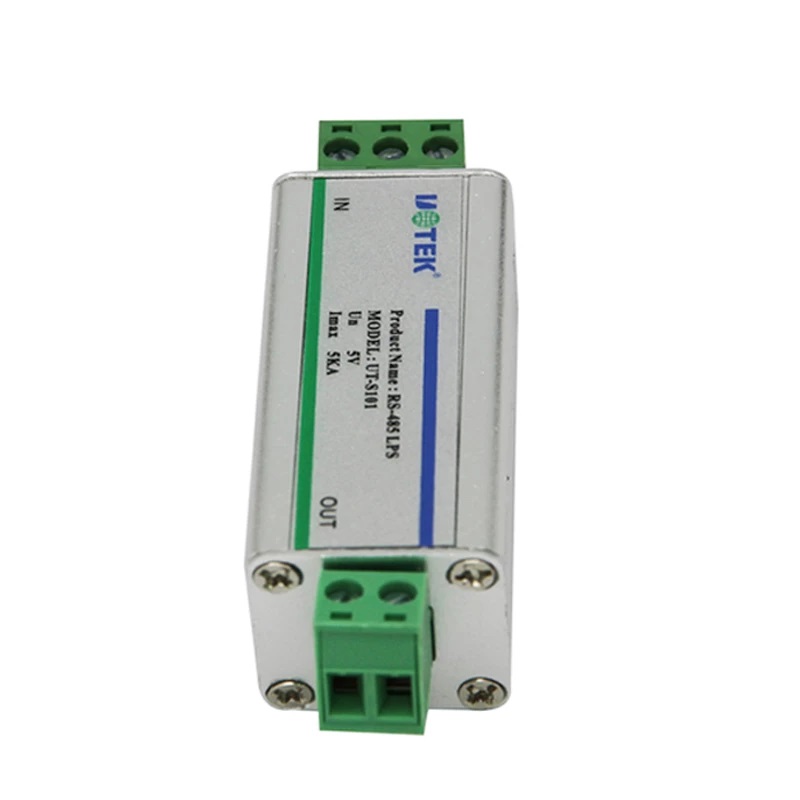

UTEK RS485 Surge Protector Thunder Lightning Arrester Protection Device Protection Device

Rating voltage Un：5V

Operating voltage (Max DC) Uc: 6V

Operating voltage (Max AC) Uc: 4.2V

Current rating: 0.12A

Nominal discharging current（8/20 us）In：3KA

Max discharging current In：5KA

Limiting voltage Upl：≤11V

Inpedance Ro：10 Ohm

Capcitance Cll：≤80pF

Capcitance Cpe：≤140pF

Response time Ta：＜1 ns

Operating temperature: -40℃～85℃

Testing standard: IEC61000-4-5

Testing level: X

Insulation resistance: >1MΩ

Insection loss （dB）：≤0.5 dB

Housing protection: IP30

Dimension: 25 x 25 x 82mm

Material: shielded aluminum

Connect: terminal block (RS-485)

ESD protection level: 4

Transmission rate （BPS）：10M
