GSM 4G SMS alarm Controller used for GSM Access Control System GSM Gate Opener Automatic monitoring valve control
This product has no valid combination.
- 4 digital input: compatibles dry contact and wet contact , support EOL connection
- 2 relay output(240VAC@3A):1 relay output (240VAC@3A) can be switched ON/OFF by sending a SMS text, the other one can be switch on 4minutes if any inputs triggered
- 4G EC25-V module frequency:FDD-LTE: B4/B13, work with USA Verizon SIM card
- Up to 3 user's phone number to receive alarm and daily report SMS and 5 user’s phone number to receive alarm Call
- Embedded 32 bit ARM9 MCU, reliable performance with in-built watchdog
Product description
Style:for Verizon

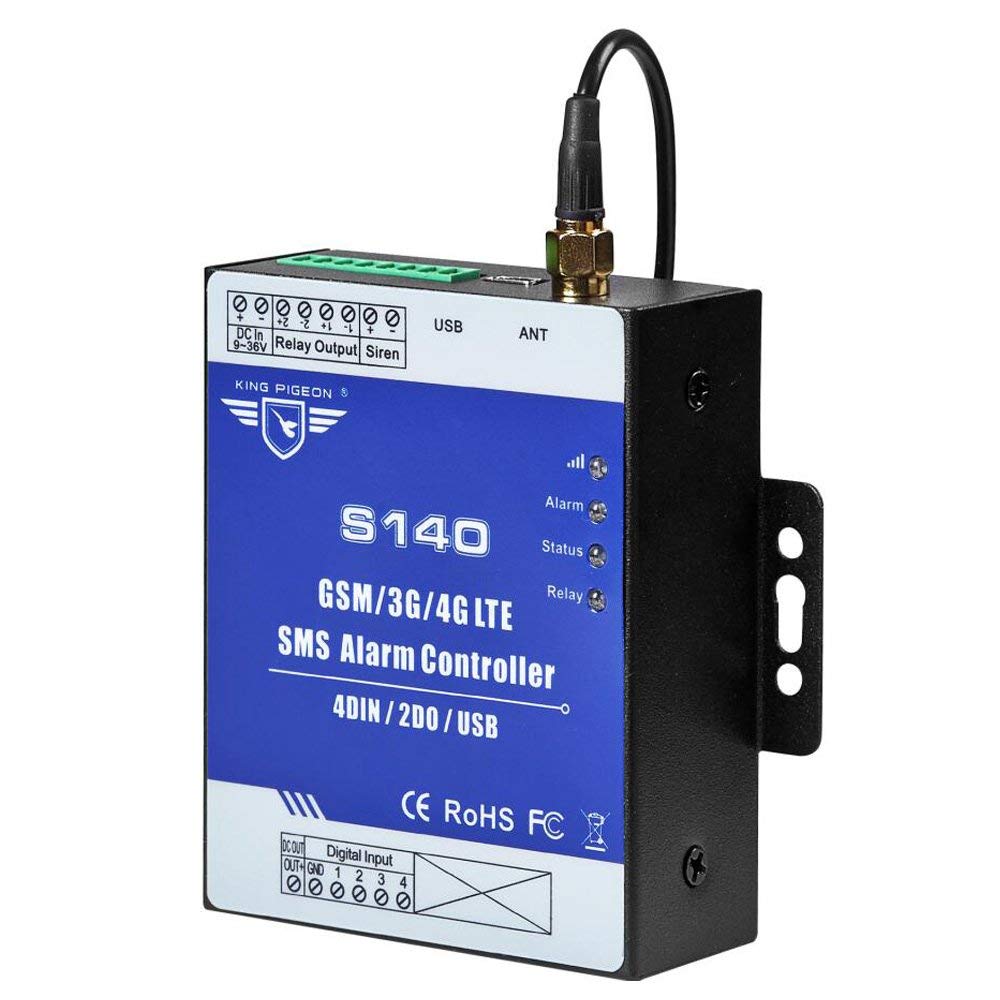

The GSM 4G Remote Controller Alarm is an industrial class, high reliability, high stability Remote Control
and Alarm Unit. It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module,
provides 2 relay outputs, 4 digital inputs and USB Serial Port.
The 4G Remote Controller Alarm allows you to monitor and control an alarm by SMS (Short Message Service) .
When any input triggered or recovery, will switch on the relay automatically, and send SMS immediately.
This is very useful if you need protect your assets with low cost solution. It is design for working in the harsh
industrial application environment, widely used in a variety of industrial automation, security monitoring system,
automatically measurement and control system.
and Alarm Unit. It embedded 32-Bit High Performance Microprocessor MCU, inbuilt industrial Cellular module,
provides 2 relay outputs, 4 digital inputs and USB Serial Port.
The 4G Remote Controller Alarm allows you to monitor and control an alarm by SMS (Short Message Service) .
When any input triggered or recovery, will switch on the relay automatically, and send SMS immediately.
This is very useful if you need protect your assets with low cost solution. It is design for working in the harsh
industrial application environment, widely used in a variety of industrial automation, security monitoring system,
automatically measurement and control system.
|
Item Weight |
12.3 ounces |
|
Product Dimensions |
2.7 x 3.4 x 1.1 inches |
|
Item model number |
S140L |
|
Batteries |
1 Lithium ion batteries required. (included) |
|
Style |
for Verizon |
|
Material |
Metal |
|
Shape |
Square |
|
Power Source |
DC |
|
Included Components |
Power adaptor |
|
Batteries Included |
Yes |
|
Batteries Required |
Yes |
|
Battery Cell Type |
Lithium Polymer |
