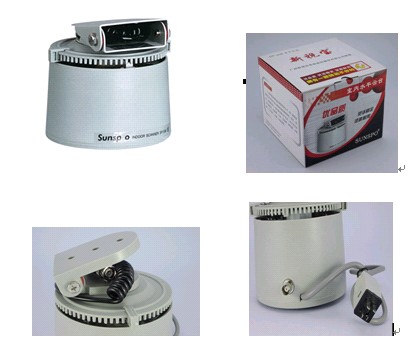

CCTV PTZ Pan-tilt Unit Indoor 24V Indoor Two-Dimension Autoscan with Stops
Putian indoor levels as the PTS-306 24V or 220V Indoor PTZ PTZ rotation monitoring
Type:PTS-306
Chinese Name: PTZ indoor levels
Product Details Features / parameters
- PTS-306L, PTS-306S, PTS-306 PTZ indoor levels is to install a fixed camera support equipment .
- It is installed inside an electric motor installed on the head in a horizontal adjust the camera after the camera tilt angle of the monitor to achieve the best effect of the motor can be accepted after the signal from the controller to run precise positioning .
- Under the action of the control signal , the level of PTZ cameras can automatically scan the surveillance area , but also in the monitoring center staff on duty under the control of tracking and monitoring objects
PTS-306
- Input Voltage：AC 24V 50/60HZ, 110V/60HZ, 220V 50/60HZ
- Dimensions：Ф119mm * 115mm ( height )
- Weight：0.9Kg
- Materials：ABS high strength injection molding
- Rotation：Horizontal Max : 350o, Vertical ± 90o adjustable
- Rotation speed：4o / sec

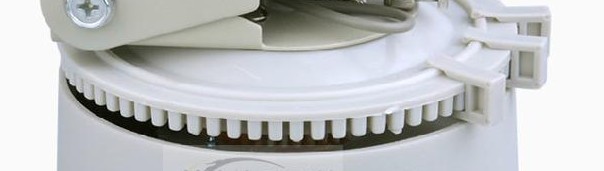

- Rotary limit：Externally adjustable limit cards
- Load：7Kg

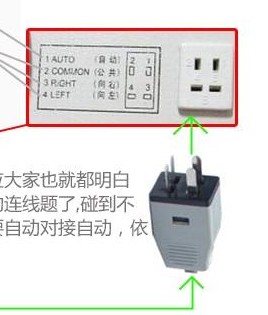

- Function input plug：10 Automatic , 2 left , 3 right , 4. Public
- Operating Temperature：-10 ° ~ +55 °
- Recommended mounting bracket：PTS-5001, PTS-5002, PTS-5003
