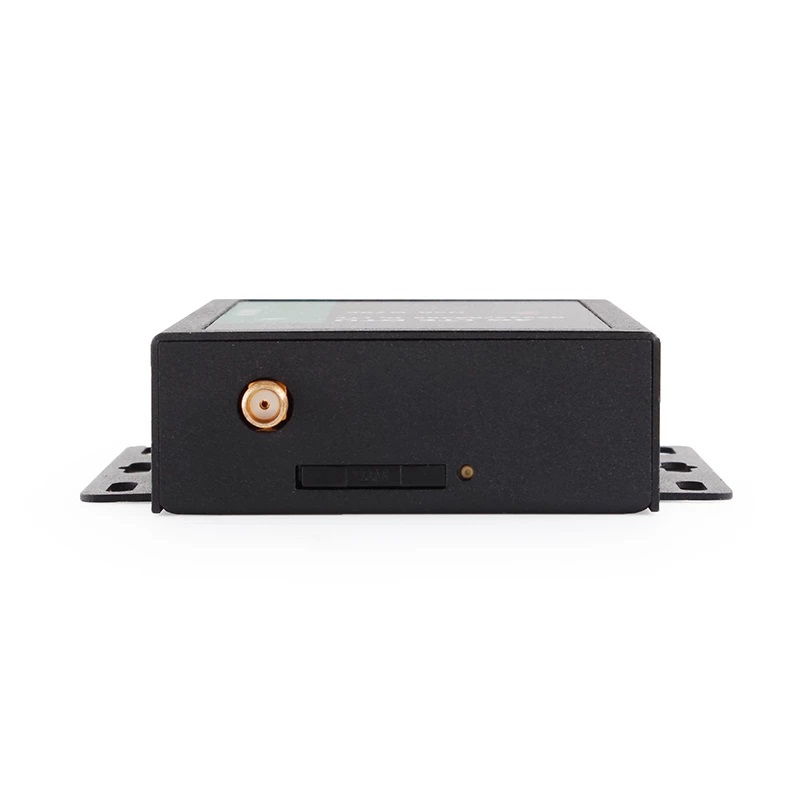

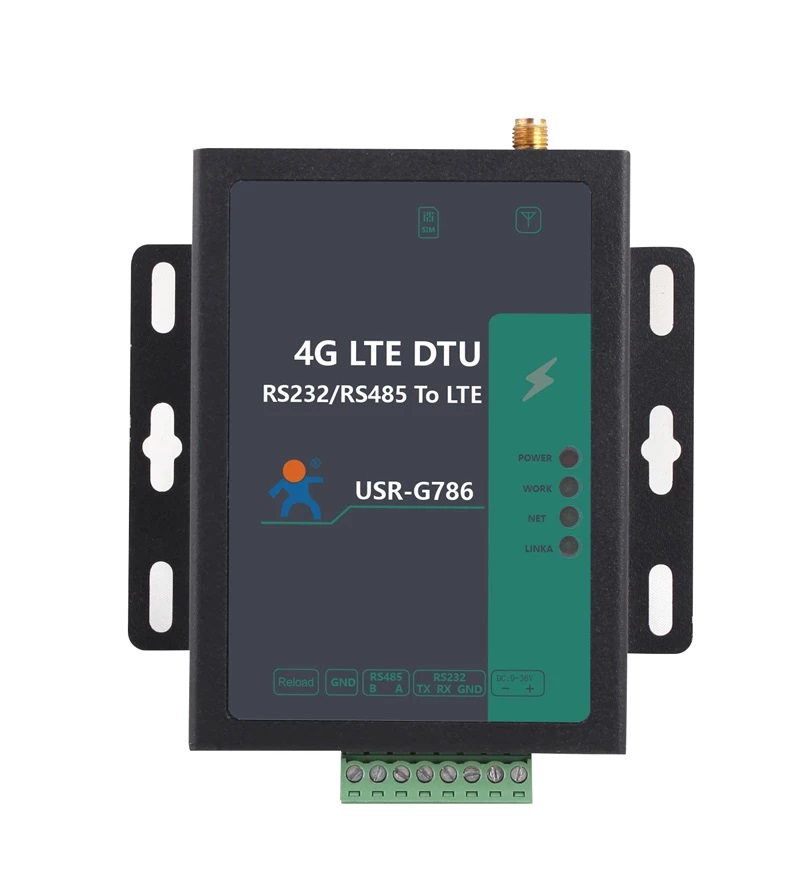

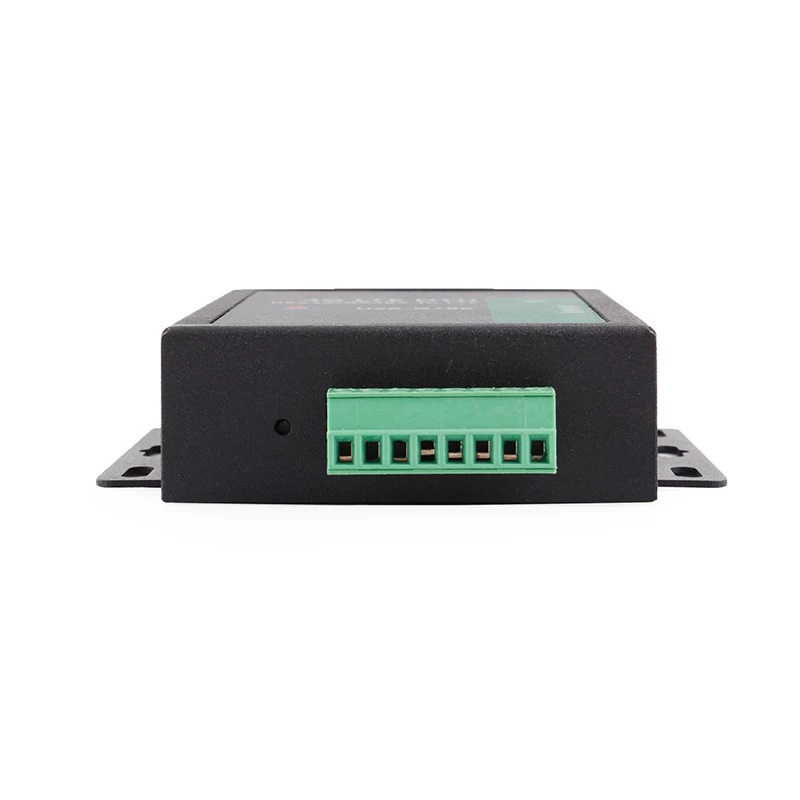

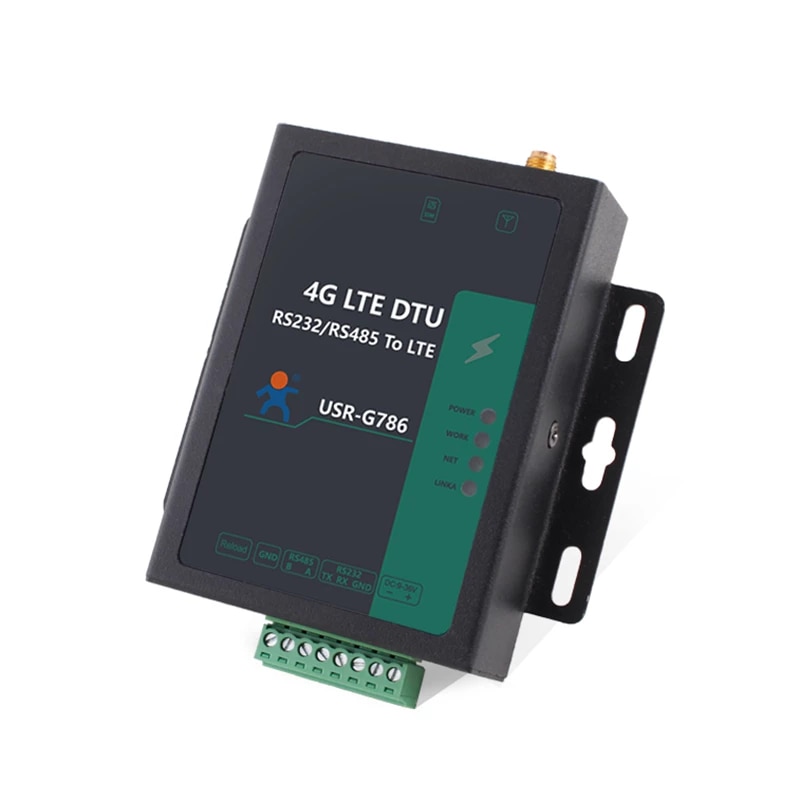

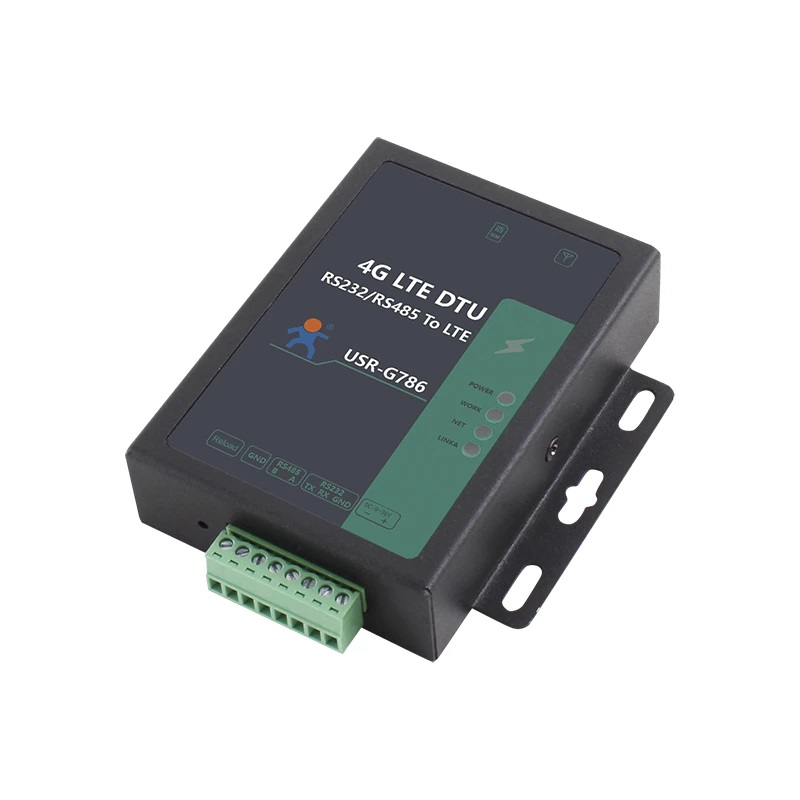

4G DTU USR-G786 Serial Port RS232 RS485 To 4G LTE Server Converter IOT Device

USR-G786
4G Cellular Modems with Global Bands , M2M Cellular Modems

USR-G786-G is a RS485 Electrical Isolation Protection 4G cellular modem which has perfect functions and covers most of the conventional application scenarios. User can use the cellular modem USR-G786-G to realize data transmission between RS232 / RS485 and 4G network through simple configuration.

Reliable Serial to 4G Cellular Communication. With RS232 or RS485 interfaces, full network coverage, wide temperature and wide voltage, multi center transmission. Provides wireless data communications between field serial devices and the central control system to enable remote control of industrial field sites.G786-G is ideal for M2M and IoT applications including distribution automation, smart metering, water & wastewater, heating, street light monitoring and etc.

● Global Bands, Covering Global Regions

● RS485 Electrical Isolation

● High Reliability, High Rate, Low Latency

● FOTA Remote Upgrade

Models		USR-DR504-G	USR-G786-G	USR-DR504-EUX	USR-G786-EUX
LTE Category		LTE Cat.4	LTE Cat.4	LTE Cat.4	LTE Cat.4
Frequency Bands	LTE FDD	B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28	B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28	B1/B3/B7/B8/B20/B28A	B1/B3/B7/B8/B20/B28A
	LTE TDD	B38/B39/B40/B41	B38/B39/B40/B41	B38/B40/B41	B38/B40/B41
	WCDMA	B1/B2/B4/B5/B6/B8/B19	B1/B2/B4/B5/B6/B8/B19	B1/B8	B1/B8
	GSM	B2/B3/B5/B8	B2/B3/B5/B8	B3/B8	B3/B8
Transmission Speed	LTE-FDD	150Mbps(DL)/50Mbps(UL)	150Mbps(DL)/50Mbps(UL)	150Mbps(DL)/50Mbps(UL)	150Mbps(DL)/50Mbps(UL)
	LTE-TDD	130Mbps(DL)/30Mbps(UL)	130Mbps(DL)/30Mbps(UL)	130Mbps(DL)/30Mbps(UL)	130Mbps(DL)/30Mbps(UL)
	DC-HSDPA	42Mbps (DL)	42Mbps (DL)	42Mbps (DL)	42Mbps (DL)
	HSUPA	5.76Mbps (UL)	5.76Mbps (UL)	5.76Mbps (UL)	5.76Mbps (UL)
	WCDMA	384Kbps(DL)/ 384Kbps(UL)	384Kbps(DL)/ 384Kbps(UL)	384Kbps(DL)/ 384Kbps(UL)	384Kbps(DL)/ 384Kbps(UL)
	GSM(EDGE)	296Kbps (DL)/ 236.8Kbps (UL)	296Kbps (DL)/ 236.8Kbps (UL)	296Kbps (DL)/ 236.8Kbps (UL)	296Kbps (DL)/ 236.8Kbps (UL)
	GSM (GPRS)	107Kbps (DL)/ 85.6Kbps (UL)	107Kbps (DL)/ 85.6Kbps (UL)	107Kbps (DL)/ 85.6Kbps (UL)	107Kbps (DL)/ 85.6Kbps (UL)
Serial Parameters	Serial Port	RS485(Terminal)*1	RS485(Termianl)1 RS232(Termianl)1	RS485(Terminal)*1	RS485(Termianl)1 RS232(Termianl)1
	Data Bits	8	8	8	8
	Stop Bits	1,2	1,2	1,2	1,2
	Parity Bits	NONE,ODD,EVEN	NONE,ODD,EVEN	NONE,ODD,EVEN	NONE,ODD,EVEN
	Baud Rate	2400～230400	2400～230400	2400～230400	2400～230400
Physical Interfaces	SIM/USIM card	1.8V/3V	1.8V/3V	1.8V/3V	1.8V/3V
	Antenna	SMA Female	SMA Female	SMA Female	SMA Female
	USB	USB 2.0	-	USB 2.0	-
	Indicators	POWER,WORK,NET,LINK,RSSI	POWER,WORK,NET,LINK	POWER,WORK,NET,LINK,RSSI	POWER,WORK,NET,LINK
	Reload	Button	Button	Button	Button
	Reset	/	/	/	/
Hardware Characteristics	Input Voltage	9V～36V	9V～36V	9V～36V	9V～36V
	Connector	Terminal	Terminal	Terminal	Terminal
	Housing material	ABS Plastic	Metal	ABS Plastic	Metal
	Dimensions(mm)	44.5×31.8×13.94 (LWH)	111.51×94×28 (LWH)	44.5×31.8×13.94 (LWH)	111.51×94×28 (LWH)
	Operating temperature	-30℃～+75℃	-35℃～+75℃	-30℃～+75℃	-35℃～+75℃
	Storage Temperature	-40℃～+85℃	-40℃～+90℃	-40℃～+85℃	-40℃～+90℃
	Operating humidity	5%～95%	5%～95%	5%～95%	5%～95%
	Storage humidity	5%～95%	5%～95%	5%～95%	5%～95%
Software	Protocol	TCP/UDP/DNS/HTTP/FTP	TCP/UDP/DNS/HTTP/FTP	TCP/UDP/DNS/HTTP/FTP	TCP/UDP/DNS/HTTP/FTP
	Serial to network	2 sockets, default A	2 sockets, default A	2 sockets, default A	2 sockets, default A
	SMS	PDU/TEXT	PDU/TEXT	PDU/TEXT	PDU/TEXT
	Configuration	Serial,Net,SMS AT commands	Serial,Net,SMS AT commands	Serial,Net,SMS AT commands	Serial,Net,SMS AT commands
	Cache	5 packets	5 packets	5 packets	5 packets
Packaging mechanism	Packaging time(ms)	100~60000,default100	100~60000,default100	100~60000,default100	100~60000,default100
Packaging mechanism	Packaging length(byte)	100～1000,default 1000	100～1000,default 1000	100～1000,default 1000	100～1000,default 1000
Others	Tool	USR-Cat 4Configuration Utility	USR-Cat 4Configuration Utility	USR-Cat 4Configuration Utility	USR-Cat 4Configuration Utility
Others	Certifications	CE,ROSH	CE,ROSH	CE,ROSH	CE,ROSH

4G DTU USR-G786 Serial Port RS232 RS485 To 4G LTE Server Converter IOT Device

$ 114.30 114.3 HKD $ 114.30

Not Available For Sale
