UTEK UT-216 RS-232 to RS-485/RS-422 converter with 600w lightning protection active RS232 to RS485/RS422 Interface Converter

Product name： RS-232 to RS-485/422 Converter

Specification model： UT-216

● Standards: RS-232C, RS-485/RS-422 TIA/EIA
● Connector: RS-232 DB9 female input, RS-422/RS485 DB9 male output, RJ-45
● Protection: RS-422/RS-485 each line 600W surge , lightning protection
● Working mode: asynchronous half-duplex or full-duplex
● LEDs for indicating PWR TXD, and RXD activity
● Transmission media: twisted-pair or shielded cable
● Transmission distance: 115.2Kbps to 300m
                             38.4Kbps to 600m
                             9600bps to 1.200Km

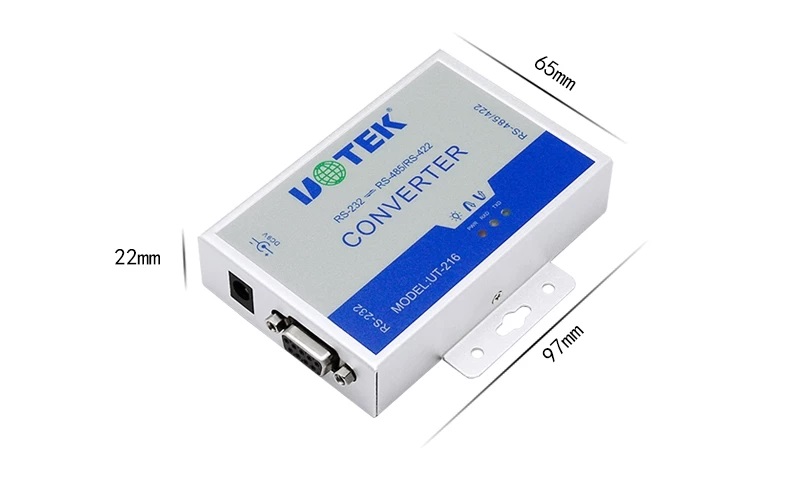

● Dimension：97mm×65mm×22mm
● Operating temperature: -25℃ to 70℃

● Relative humidity: 5% to 95%

User manual Link:

http://www.uotek.com/Uploads/file/20170801/20170801163118_60965.pdf
