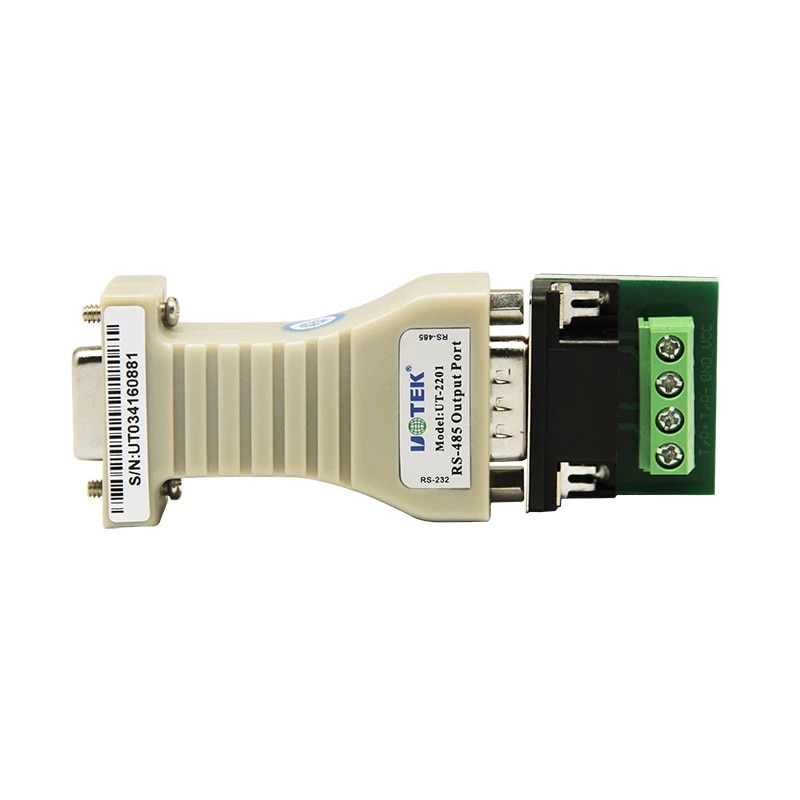

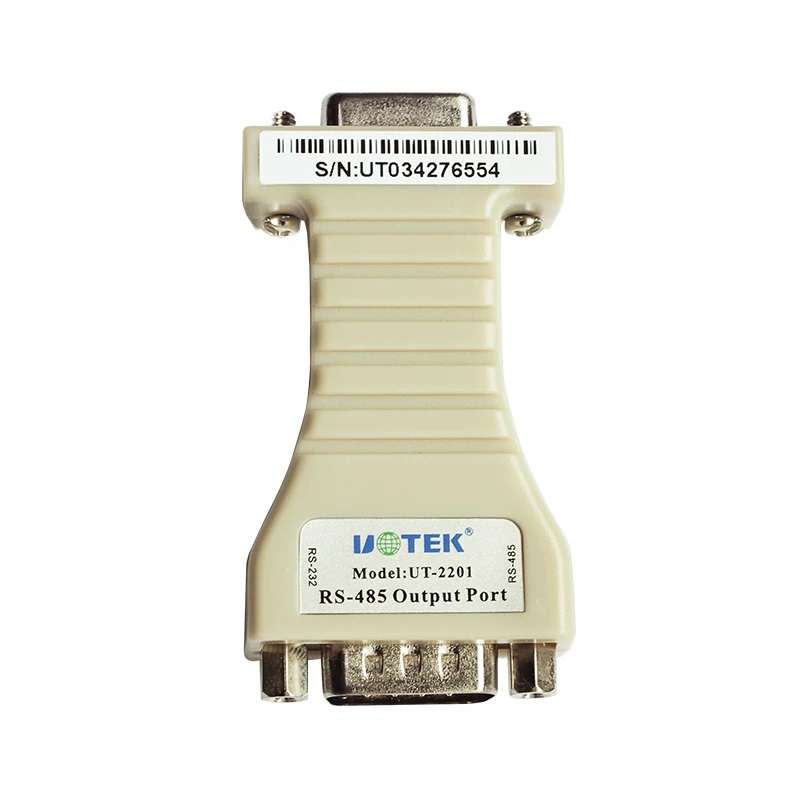

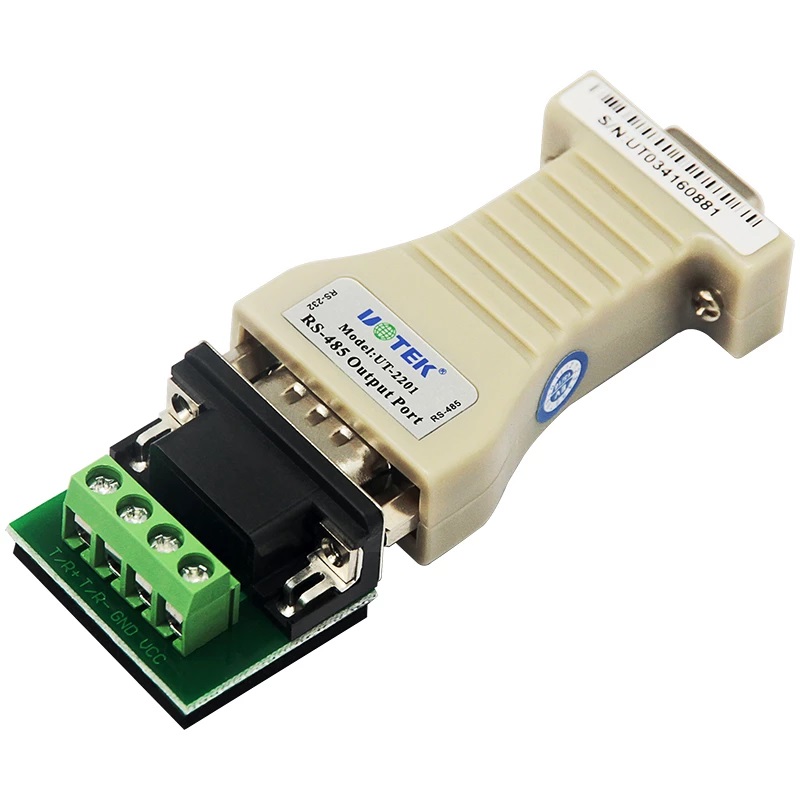

UTEK UT-2201 RS485 to RS232 to RS485 Passive Interface Converter Adapter Data Communication

Product parameter：

Item number: UT-2201

Interface features: interfaces compatible with EIA/TIA, RS-232C, and RS485 standards

Electrical interface: RS-232 end DB9 pass connector, RS-485 end DB9 pin connector, with terminal

How to operate: asynchronous half duplex differential transmission

Transmission medium: twisted pair or shielded wire

Transmission rate: 300BPS-115.2KBPS

Transmission distance: 1200M RS-485 terminal, RS-232 side 5M

Size: 63*33*17mm

Use environment: -25-70 ℃, relative humidity is 5%-95%
