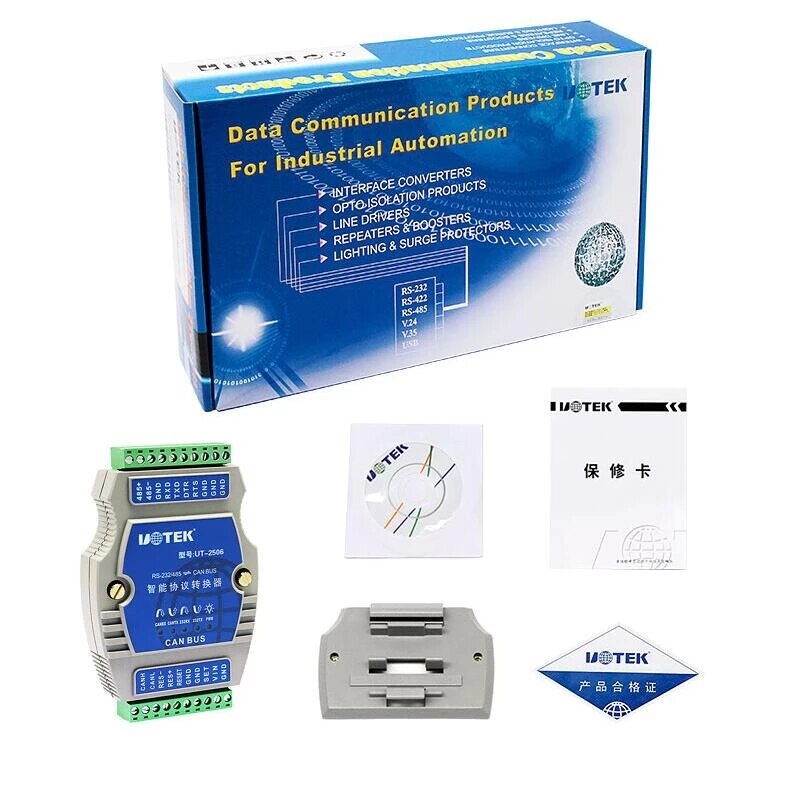

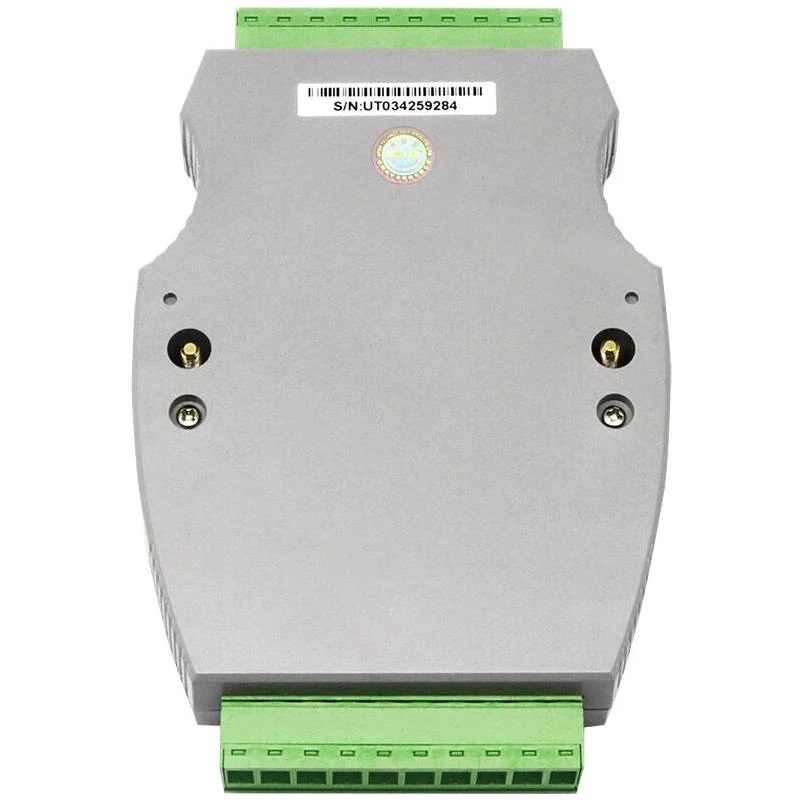

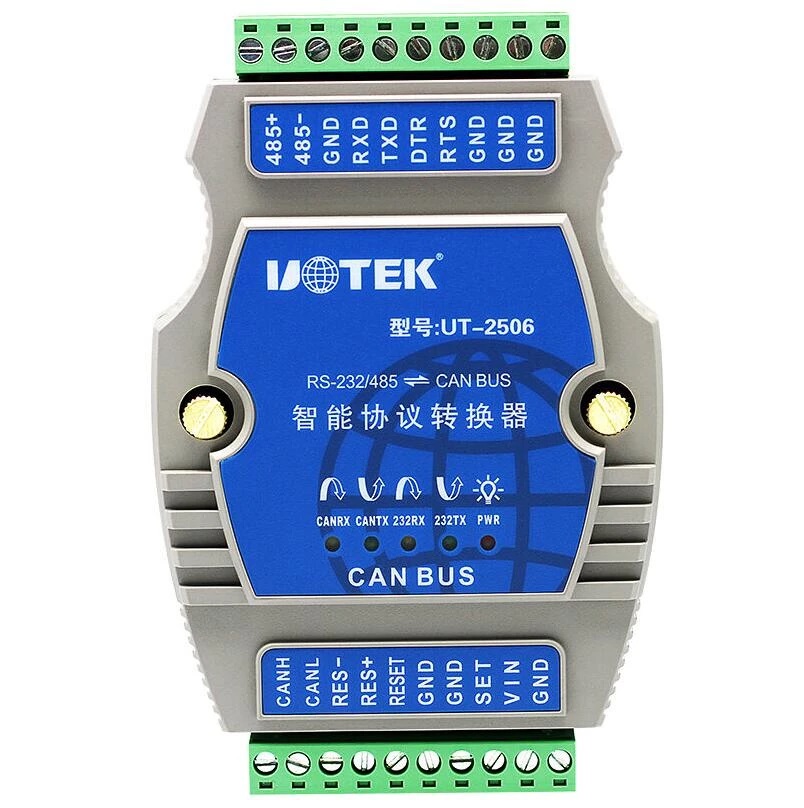

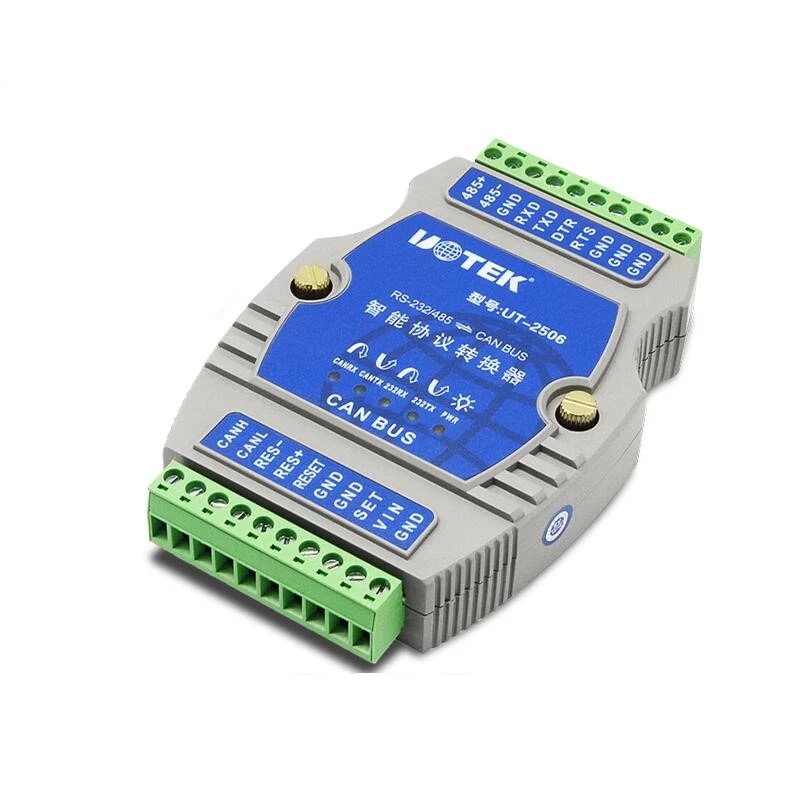

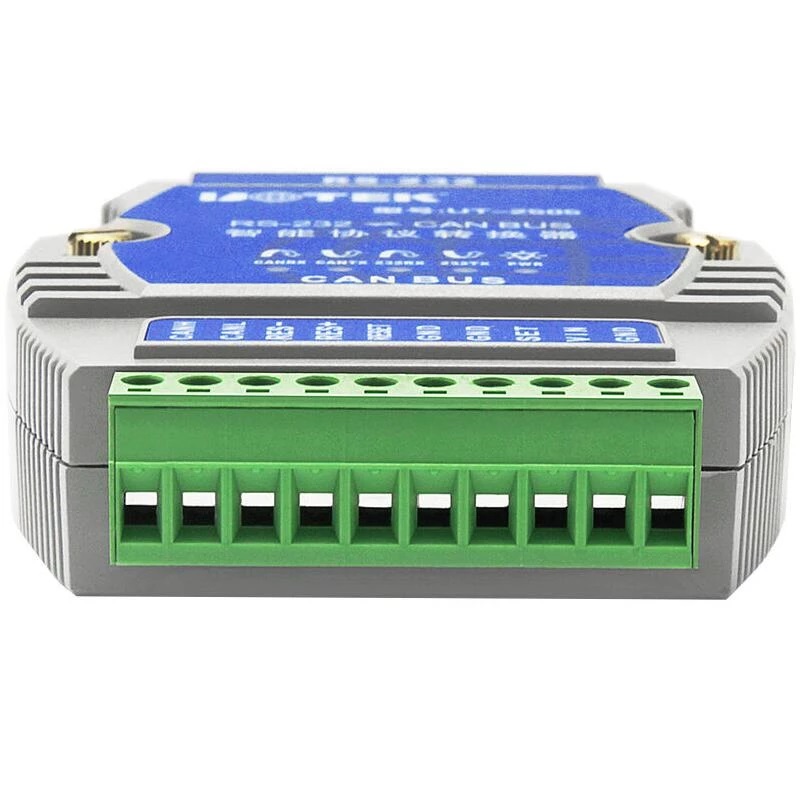

Product name： RS-232/485 to CAN BUS Converter

Specification model： UT-2506

●Supports bidirectional communication between CAN-bus & RS-232/RS-485

● Supports CAN2.0A & CAN2.0B protocol, complied with ISO/DIS 11898 standard

● Integrates with 1 channel CAN-bus communication interface, supports baudrate user-defined

● Integrates with 1 channel RS-232/485 interface, baudrate is between 1,200~115,200bps

● Data Transformation Mode: Transparent mode, transparent with identification mode, Modbus mode

● Operating Temperature: -40℃ ～ 85℃

UT-2506 User manual link

http://www.uotek.com/Uploads/file/20170802/20170802105608_24157.pdf

UT-2506 driver：

http://www.uotek.com/Uploads/file/20171205/20171205100911_28817.rar
