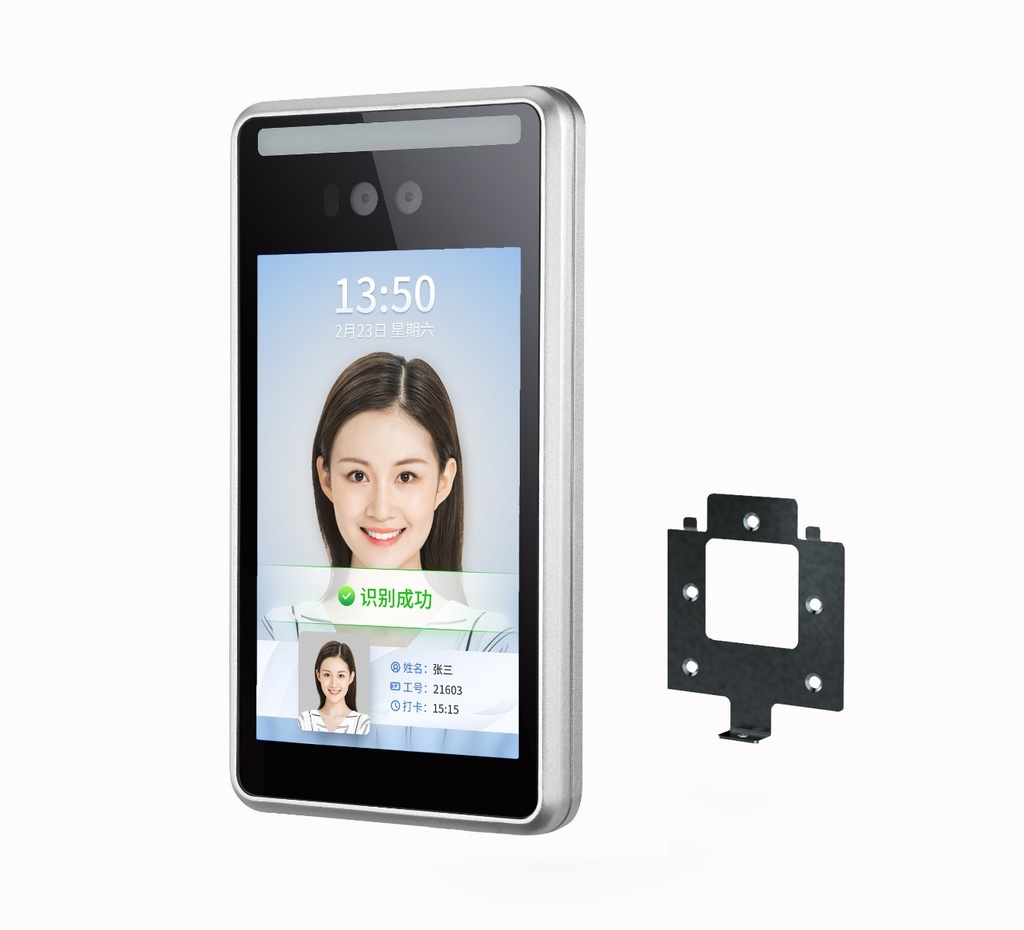

8 Inch IPS Display Touch Screen Ai Face Recognition Access Control Time Attendance Terminal System
8 Inch IPS Display Touch Screen Ai Face Recognition Access Control Time Attendance Terminal System
8 Inch IPS Display Touch Screen AI Face Recognition Access Control Time Attendance Terminal System
Product Advantage:
Support Real Time Human Body Detection .
Using Linux operating system, better system stability.
Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.8s.
From -30 ° C to + 60 ° C environment for long-term stable operation.
Outdoor IP65 waterproof and dustproof.
Mean time between failures MTBF>50000 H.
Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.
Support 24000+ face matching library and 160,000 face recognition records.
Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.
Support tracking of personnel movements under strong backlight conditions.
The device supports connect to an external access control host or Wiegand reader through the international standard Wiegand protocol (WG26/WG34)
Model
B2002FR-8I-TS-WM
Hardware
Hi3516D CPU+1G memory+16G flash
Processor
Dual
Core Processor
(
Hi3516D V300
)
+ 1G memory + 16G flash
Operating system
Linux Operating system
Viewing angle
Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor
1/2.8" Progressive Scan CMOS
Lens
6mm
4G module
Optional customization functions (not by default)
Wifi module
802.11 b/g/noptional (not by default)
Touch screen
Support capacitive single touch screen
Speaker
voice playback content can be customized
Performance
Recognition height
1.2~2.2 meters, angle adjustable
Recognition distance
0.5~1.5 meters, depends on lens
Recognition time
Less than 0.5 second
Storage capacity
160,000+ capture records
Face capacity
24000pcs
Screen brightness
≥400 cd/m2
Switching output
1 way switch output, other GPIO port can be customized
Model NO. : B2002FR-8I-TS-WM
Transport Package : Paper Box
Specification : 2KG
Trademark : Beward
Origin : China
Production Capacity : 50000/Month
Model : B2002FR-8I-TS-WM
Hardware : Hi3516D CPU+1G memory+16G flash
Processor : Dual Core Processor(Hi3516D V300)+ 1G memory + 16G flash
Operating system : Linux Operating system
Viewing angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 6mm
4G module : Optional customization functions (not by default)
Wifi module : 802.11 b/g/noptional (not by default)
Touch screen : Support capacitive single touch screen
Speaker : voice playback content can be customized
Performance :
Recognition height : 1.2~2.2 meters, angle adjustable
Recognition distance : 0.5~1.5 meters, depends on lens
Recognition time : Less than 0.5 second
Storage capacity : 160,000+ capture records
Face capacity : 24000pcs
Screen brightness : ≥400 cd/m2
Switching output : 1 way switch output, other GPIO port can be customized
