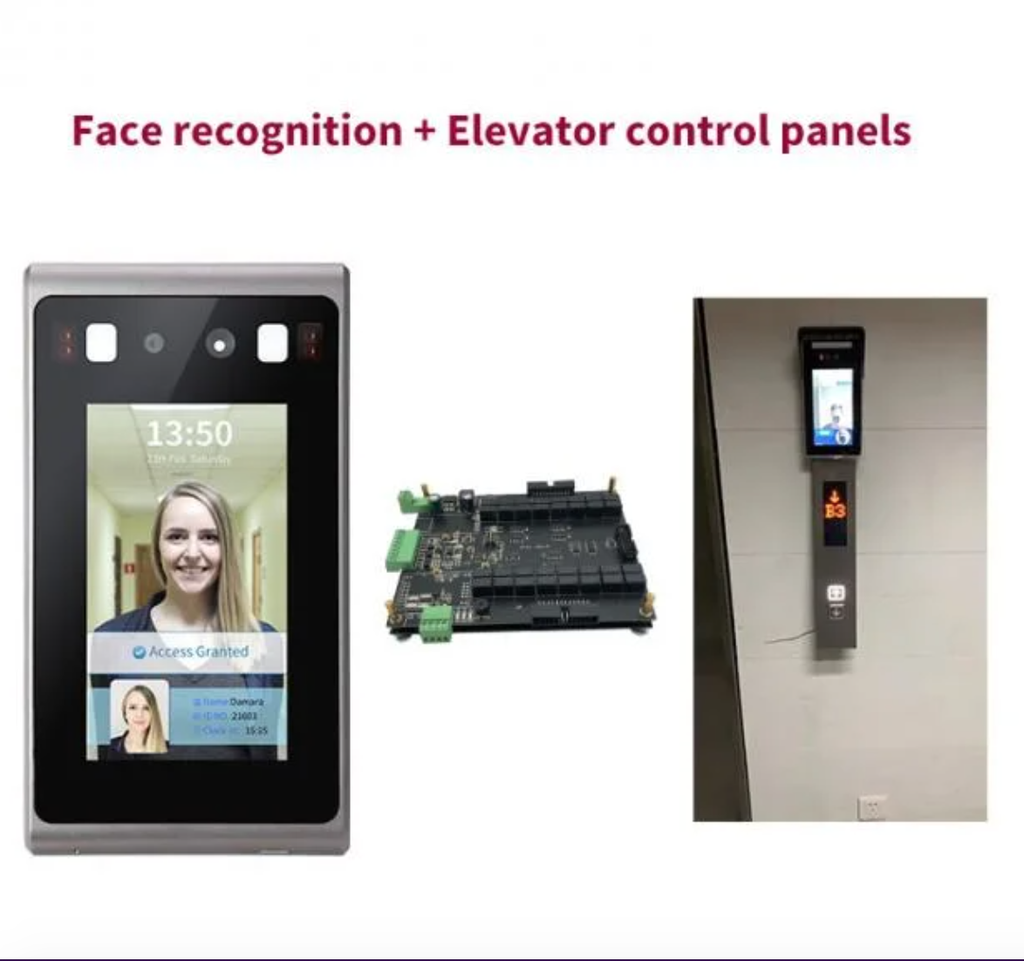

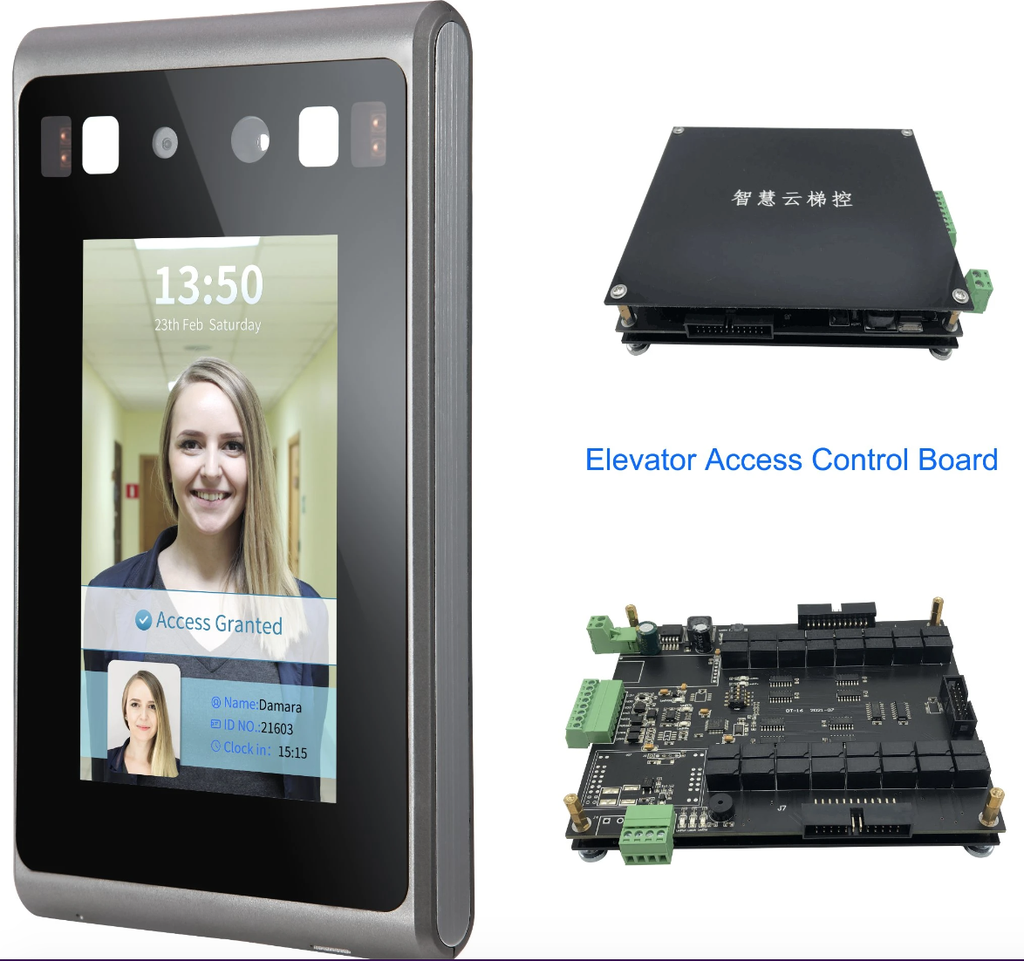

Wireless RFID Facial Recognition Elevator Entry System with Elevator Access Control Panel
Our advantages:
1.Make the reliable IP security surveillance cameras used for a professional surveillance project
2.Strong and experienced R&D engineer team, offer SDK&API for you, meanwhile, we can help and support you to develop, revise and integrate into your own system
3.As a developer of professional software and web applications for managing video surveillance systems, we developing competitive and reliable products that meet the requirement of our customers.
Model NO. : B2002FR-4I-RF-WF-WM-E
Touch Screen : 4.3 Inch
WiFi : Support
RFID : 13.56MHz
Power : DC12V 1A
Sdk/API : Mqtt/HTTP
Installation : Wall Bracket
Transport Package : Carton Box
Specification : 0.5kg
Trademark : OEM
Origin : China
HS Code : 8543709990
Production Capacity : 5000PCS
Model : B2002FR-4I-UTS-RF-WM (Wifi)
Hardware :
Processor : Dual-Core ARM Cortex-A7, @1.0GHz
Operating system : Linux Operating system
Sensor : 1/2.8" Progressive Scan CMOS
Lens : 4.5mm
Card swiping module(Optional) : Support reading 13.56MHz, 125KHz, 915MHz frequency band signals, the type of card reading includes Mifare, CPU card
WiFi module : IEEE 802.11b/g/n standard, support 2.4GHz frequency band, speed range 1Mbps-150Mbps
Touch screen : Support, capacitance multi-touch screen
Speaker : Voice playback content can be customized
Performance :
Recognition height : 1.2~2.2 meters, angle adjustable
Recognition distance : 0.3~1.5 meters
Viewing angle : Vertical viewing angle: 30°, horizontal viewing angle: 30°
Recognition time : Less than 0.5 seconds
Storage capacity : 60,000 capture records
Face capacity : 24,000pcs
Interface :
Power out : DC12V/2A
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
Alarm interface : 1ch alarm interface
Door senor interface : 1ch magnetic interface
Open interface : 1ch open door interface
Doorbell interface : 1ch doorbell interface
Lock interface : 1ch lock interface
Communication interface : 1ch RS485 interface
Camera :
Camera : Dual cameras
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
Screen resolution : 480*272
Regular :
Operating temperature : -20ºC - +55ºC
Working humidity : 0~90% relative humidity, no condensation
Salt spray : Level Rp6 or above
Antistatic : Contact ±6KV, air ±8KV
Power : DC12V/2A
Waterproof : IP42
Power : 10W(MAX)
Equipment size : 160(L) * 88 (W) * 17(T) mm
Screen size : 4.3-inch capacitance multi-touch screen
