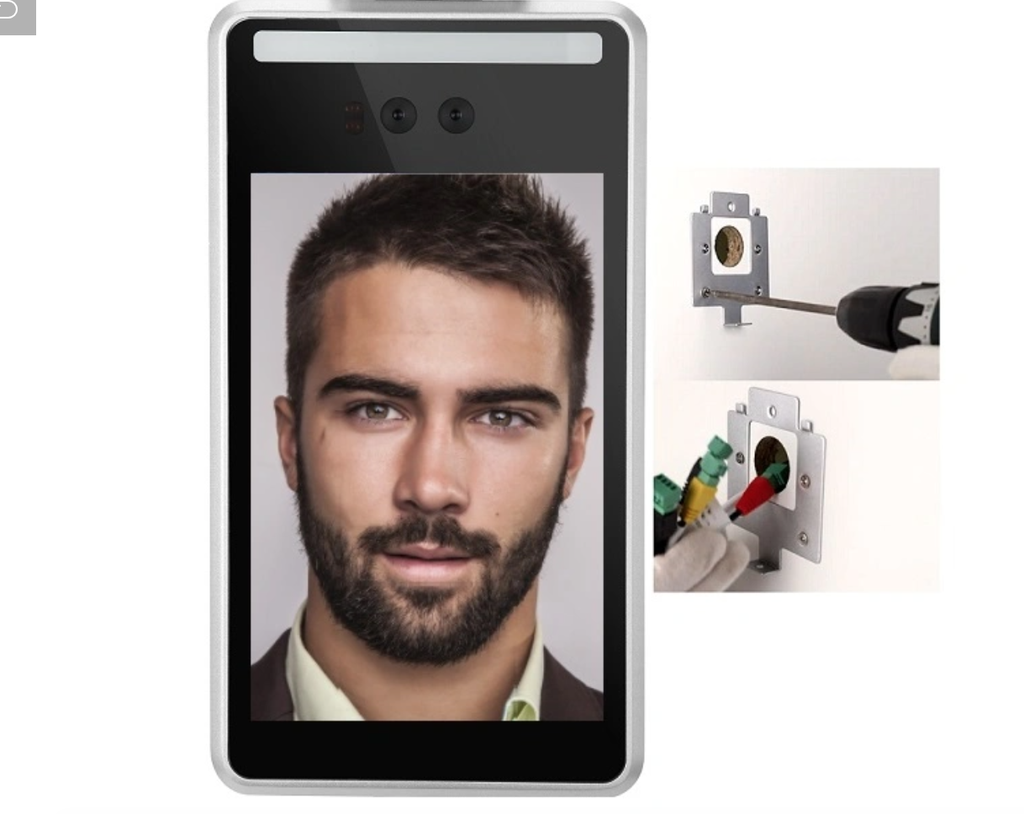

Human Head Non-Contact Entrance Guard Infrared Head Temperature Mask Detection Scan Time Attendance Access Control Terminal

Automatic Human Head Non-Contact Entrance Guard Infrared Head Temperature Mask Detection Scan Time Attendance Access Control Terminal

Model NO. : B2002FR-8I-CM-BTH-L06
Transport Package : Paper Box
Specification : 2KG
Trademark : Beward
Origin : China
HS Code : 8525801390
Production Capacity : 50000/Month
Model : B2002FR-8I-CM-BTH-L06
Hardware :
Processor :Dual Core Processor(Hi3516D V300)+ 1G memory + 8G flash
Operating system : Linux Operating system
Storage : Support TF card storage in the future ( only hardware interface reserved)
Viewing angle : Vertical viewing angle: 30°; Horizontal viewing angle: 30°
Sensor : 1/2.8" Progressive Scan CMOS(IMX307)
Lens : 6mm
Speaker : voice playback content can be customized
Measurement Environment : 16ºC - 40ºC (Indoor without wind, please refer to the end of the file)
Temperature measurementLens : European original lens
Sensors type : European imported sensors
Measurement accuracy : ±0.3ºC
Temperature resolution : 0.1ºC
Temperature measurement distance : ≤40cm
Measurement response time : 300ms
Performance :
Recognition height : 1.2~2.2 meters, angle adjustable
Recognition distance : 0.3~1.5 meters, depends on lens
Recognition time : Less than 0.5 seconds
Storage capacity : 80,000 capture records
Face capacity : 10000pcs
Screen brightness : ≥400 cd/m2
Interface :
Switching output : 1 way switch output, other GPIO port can be customized
Network interface : 1 RJ45 10M / 100M adaptive Ethernet port, Gigabit Ethernet port can be customized
Wiegand interface : 1ch Wiegand interface input/output
RS485 : There is an RS485 interface on the PCB board, but no lead
USB interface : 1ch USB interface
Camera :
Camera : Dual cameras
Effective pixels : 2MP, 1920*1080
Min Illumination : Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR)
SNR : ≥50db(AGC OFF)
WDR : 120db, ISP algorithm face partial exposure
Resolution : Main Stream: 50HZ: 25fps (1920*1080,1280*720)            60HZ: 30fps (1950*1080,1280*720)
Function :
Web side configuration : support
remote upgrade : support
Regular :
Working humidity : 0~90% relative humidity, no condensation
Salt spray : level Rp6 or above
Antistatic : contact ±6KV, air ±8KV
Powered : DC12V/2A
Device power : 20W(MAX)
Column aperture : 36mm
Equipment size : 252 (L) * 136 (W) * 26 (T) mm
Screen size : 8 inches IPS HD screen
Weight : 1.7 kg
