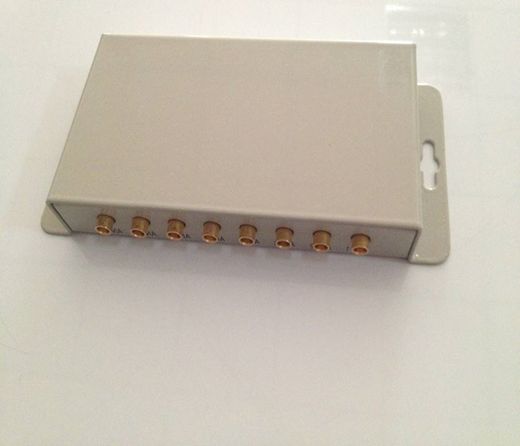

RFID UHF 860-960 MHz Intelligent Slave Multiplexer Splitter for 8 Antenna
UHF Intelligent Slave Multiplexer
- Work frequency:902～928MHz(can be customized as per countries and regions.)
- Simple physical wire connection,no extra power cable needed for slave,only RF co-axial cable to realise power supply,communication with master.
- Automatically search and check the connection status for slaves and antennae with power on,also support dynamic update on the current connection situation.support antenna scanning for its network topology and plug-and-play.
- 8MCX output port,each port support 4 level slave cascading,also directly be connected with antenna.Maximum 8 antennae can be connected into each slave,then one output port can connect up to 32 antennae.
- Total 256 antennae supported,antenna switching speed less than 100ms.
- Line length between the RF input side and the antenna side up to 10m or above.
- Low power dissipation design with single +9VDC supply.Low insertion loss.
- Support RS232,TCPIP network interfaces,etc. 125*59*17MM
