Ultra HD H.265 8MP IR 100M IP Camera 4K PTZ Heavy Duty 30x Auto Zoom Starlight Motion detection onvif Pelco-D/p Protocol

Details

Ultra HD H.265 8MP IR 100M IP Camera 4K PTZ Heavy Duty 30x Auto Zoom Starlight Motion detection onvif Pelco-D/p Protocol IP88R-4K30 1360905

Shipping notes:

1)All free shipping products, The Seller shall be responsible for shipping cost from shenzhen china to destination place. China tariffs, relates to handle fees, export declaration fees or customs clearance fees is for seller \'s account.

2)But the arrival of the goods at the destination, Buyer import tariffs, relates to the operation fees, customs fees or customs clearance fees is at buyer\'s cost. if there are special requirements, please specify in the order message, we will do declaration invoice according to the special needs of buyers.

interested2

30X Optical Zoom 4K HD Ultra IP PTZ Camera Onvif 8MP Night vision 100M Security Surveillance with Pelco-D/P RS485 ControlUSD 2094.60/piece

Sony CMOS 1/2.5 Heavy duty mobile vehicle ptz ip camera 4k 8mp 30x optical zoom night vision 550M DC12V IP66 OutdoorUSD 2431.80/piece

4MP 20X Optical Zoom PTZ Camera Audio 7" CMOS IP Pan Tilt Video High Speed Dome Security Camera Onvif Support Laser IR Distance USD 532.30/piece

Ultra HD 30x Auto Zoom 4K 8mp marine Farm border ip camera ptz rugged Video Audio PTZ IP 3840x2160 IR 550M Night VisionUSD 2710.70/piece

8MP Ultra HD Night vision 100m Vehicle Mounted Ptz IP Camera 4k 360 Degrees Rotation Camera For Buses And Cars SecurityUSD 1975.90/piece

H.265 HD Network IP 4MP PTZ Camera with audio wiper 20X optical zoom IR 150m Security cctv ip camera system Support Onvif NVRUSD 498.50/piece

Ultra HD H.265 8MP IR 100M IP Camera 4K PTZ Heavy Duty 30x Auto Zoom Starlight Motion detection onvif Pelco-D/p ProtocolUSD 1913.80/piece

UltraHD 4K (8MP) Outdoor Security Heavy Duty Video Audio PTZ IP Camera 3840x2160 Laser IR 500M Night Vision 30X Auto ZoomUSD 2476.40/piece

Main Features:

Sony 1/2.5"CMOS, 8.51M Pixels, Optical 30X Zoom, 3840x2160/P30, SSNR

Day/Night 0.004/0.0004Lux, f=6.0-180mm.

Night-vision distance 100-120M,light angle proportionable camera view

Integrated IP Encoder, Hi3516 HD 1080/P30/P60, H.265, SD storage, RTSP, VLC protocol

Two-way Audio In/Out, CMS.

HD IP version, Basic PT configuration

Aluminum shell and fast installation; pan 360°tilt -90~90°, pan speed 0.4-80°/s, tilt speed 0.4-60°/s; accuracy ±0.025°.OSD menu,

Support three-grades lightning-proof, alarm function, internal temperature display and etc.

support Pelco-P/D and other kinds of protocols etc.

Optional accessory: 49g anti-shocking pedestal

Technical Parameter:

Model	IP88R-4K30
Camera module
Sensor	Diagonal 7.20 mm ,Sony 1/2.5 CMOS
Sensor	8.51 Pixel Color CMOS Image Sensor
effective pixels	8.51M pixels
Aspect ratio	16:9 (4K 3840x2160)
Visual lens	HD 30X Zoom Lens
Focal length (mm)	6~180mm
Zoom value	30X
effective pixels	4K
Iris	F1.64~4.6
Wide View of angle (WxH)	59°
Tele View of angle (WxH)	2.4°
Infrared confocal	Yes
Auto-focus	Yes
Back focal length (mm)	1
Minimum object distance (m)	0.1m(Wide) ~ 1m(Tele)
Pan Tilt Parameter
Rotation Range	Pan 360°continuously;Tilt 180°(with auto-flip)
Pan Speed	0.4°~80°/S
Tilt Speed	0.4°~60°/S
Preset Speed	Pan 160°/S, Tilt 120°/S
3D Location	/
Zoom/Speed Proportion	Auto-speed proportionate to the length of focus
Position Accuracy	±0.025°
Preset	128, titles can be edited
Auto Flip	Tilt down to 90°, camera will auto run auto flip 180°
Auto Scan	355°programmable, 4 scan
Patterned Scan	4, each record time is not less than 180S
Display Zone	8 with titles,(support automatic scanning in zone)
Baud rate(Rs485)	2400/4800/9600/19200bps
ID Range	1~254
Alarm	Support
Decoder	Build-in
Power loss recovery	Support
PTZ position display	ON/OFF
Preset video freeze	Support (need camera module support)
OSD	Support
Temperature display	Survey the temperature inside of the PTZ
Park action	Preset/Pattern/Tour/Auto Scan
Timing task	Preset/Pattern/Tour/Auto Scan
Remote Controlling	RS485, Mancheaster, BI-PHASE, RJ45
IP Parameter
IP Encoder	High Definition-IP
Video Compression	H.264/H.265，Baseline/Main Profile/High Profile；H.265 Main Profile; MJPEG
Main Stream	19201080, 1-60（default 30）frame/S; 1280720, 1-60（default 30）frame/S;
Sub Stream	D1, 1-25 (30)frame/S; 640480, 1-25 (30)frame/S; 320240, 1-25 (30)frame/S
Video Bitrate	30~16384Kb/S continuously adjustable, CBR/VBR support
Information Display	Dome Title, Preset, Pattern, Scan, Zone, Zoom, Alarm, Date/Time
Data Storage	TFCard Support,up to 128GB
Storage Mechanism	Manual，Auto（Loop，Timing，Alarm，Motion Detection）
Alarm In	IO Detection，Motion Detection
Alarm Out	E-mail,FTP,ONVIF,GPIO
Internet Protocol	TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DHCP, FTP, NTP, SMTP
ONVIF support	Standard ONVIF2.4
Web browser	IE6.0 or Later,Support 10 users access simultaneously(MAX)
NVR support	HIKVISION, DAHUA, TVT, XM technology and etc.
Platform support	Milestone, NUUO, AXXON, Digifort Avigilon, Aimetis
SDK support	Windows&Linux
General
IR View Range	100-120M
Electrical Protection grade	Built-in TVS4000V,lightning-proof,surge-proof and wave-proof
Woking temperature & humidity	-40℃~+60℃；0~90%(non-condensation)
Ingress Protection	IP 66
Power consumption	Neutral product consumption≤40W；With extra freezing-proof consumption≤100W
Rate Votage	AC24V
Dimensions	411mm×210mm×269mm
Horizontal Turning redius	240mm
Net Weight	6.3 Kg
Gross Weight	7.8kg
Installation type	Up, Up-side down
Packed Dimension	53x43x28CM

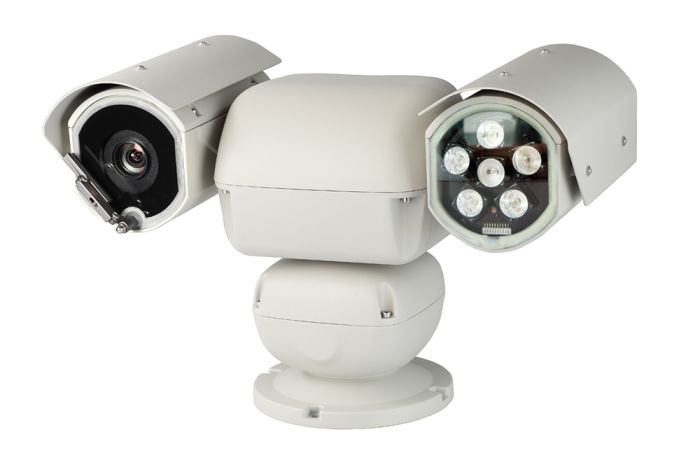

Product Photos:

How to connect Hikvision NVR, Pls see the below detail:
