RFID 13.56MHz 14443A Self-Adhesive Sticker Label Soft F08

$1.00
In stock
  • Buy 100 for $0.73 each and save 27.5%
  • Buy 1000 for $0.65 each and save 35%
  • Buy 5000 for $0.50 each and save 50%
Overview

RFID 13.56MHz 14443A Self-Adhesive Sticker Label Soft 40 x 25mm

Specification:
  • Frequency:13.56MHz
  • Standard:ISO14443A
  • Self-adhesive
  • Chipset: F08 (Mifare One S50 or compatible )

We specialized in RFID and EAS security solutions, we have many kinds of tags provided and could be customized to your need. Please contact us for design and discussion.

Property
Article
Name
Call

13.56 Mhz series adhesive paper tag (13.56 Mhz series sticker tag )

SUMMARY
State

● We have a HF / UHF antenna design , full automatic production line label , customers have tasted UHF antenna design , according to customer requirements using paper / PET / PVC / ABS / stickers and other package leaflet electronic label rolls or finished .
● Self-adhesive paper tag with adhesive ( with wet Inlay production ) ; paper tag without gum ( with Dry Inlay production ) .

Property
Article
Between
Introduce

Foot
Inch
Selected
Choose
Product Number CMMF1 CMMF2 CMMF3 CMMF4 CMMF5 CMMF6 CMMF7 CMMF8 CMMF9
Label size mm 86x54 73x23 55x17 50x50 40x25 35x35 30x15 Φ45 Φ25
Antenna size mm 75X45 52X15 52X15 45X45 38X22 32X32 23X11 Φ42 Φ22
Mark
Sign
Simple
Condition
● Antenna material Aluminum
● PET substrate material
● Antenna thickness of 0.03mm
● Substrate thickness 0.03mm
● induction frequency 14.0 + /-0.5MHz
● Reading distance 0-10CM
Core
Sheet
Ginseng
Number
● Meet ISO14443A standard
● Chip Optional : 14443A/FM1108/etc.
● Working frequency : 13.56MHz;
● Resonant Frequency : 14.0MHz + /-0.5MHz
● Typical activation field strength ( read ): 94dBuA / m #
● Typical activation field strength ( W ): 97dBuA / m #
● Endurance : 100,000 times ;
● Data retention time : 10 years ;
● Communication speed : 106 K bits / s
Ring
Border
Ginseng
Number
● ideal storage environment : +15 ° ~ +25 °, 20% RH ~ 45% RH
● tolerant storage environment : -25 ° ~ +50 °, 20% RH ~ 90% RH
● tolerate working environment : -25 ° ~ +65 °, 20% RH ~ 90% RH
● pressure capacity : ≦ 5N / m ㎡
● resistance to bending capacity : ≧ φ20mm
Package
Dress
Square
Formula
● roll / leaflets / Full Page
● Size : 3 inch paper core diameter
● Quantity : 1000pcs / volume ( or 500pcs / roll )
● Packaging : Thermal plastic , moisture-proof packaging , neutral label
● Typical Packing : 1000pcs / box ; 3000pcs / box ; 5000pcs / box ; 10000pcs / box .

Should
Use
Field
Close

● Self-adhesive labels are widely used in electronic goods supply management , parcel and postal services , logistics, warehouse management system , library and rental services, airline luggage tags , product certification , brand security protection , the usual identification systems, pressure vessels labels non-metallic materials logistics sticker.

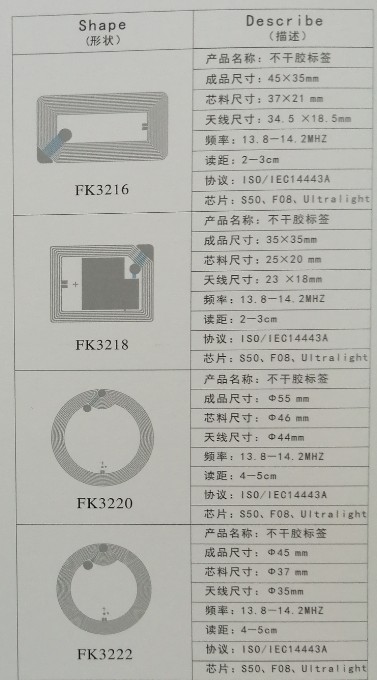

Below a table of model for reference.



More Information
SKU HFLABELF08
Weight 0.001000
selling_potential 4
With Built-in Battery No
Condition New
