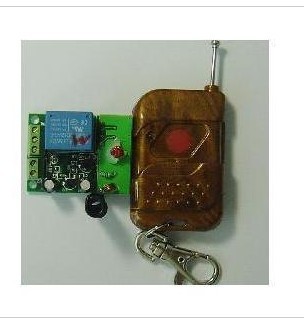

wireless remote control remote for open access control one channel 5Lot

remote control 56mm* 40mm* 12mm

Antenna length 68mm


I. Product Overview
This product is a multifunctional way wireless intelligent remote control switch, receiver board is a relay output switch signal , the wireless receiver controller, a high-security , stable performance , low power consumption of the features , and easy to use . Printed circuit board relay contact output wiring diagram , can be easily and quickly wiring.

Second, the technical parameters
1, the working voltage: DC12V
2 , Working current : ≤ 6mA
3 , Operating frequency : 315/433 MHz
4 Receiver sensitivity :-105Db
5, the output type: Independent normally open and normally closed contacts
6 , Contact capacity : ≤ 3A
7 ,Barrier-free remote control distance up to 100M, through the wall
8 , the remote control can operate on battery power for 2 years


Third, use:
A total of five pin numbers

Receive the board itself needs to 12V DC Operating Another group of five independent relay output terminal
Suitable for all access control systems
