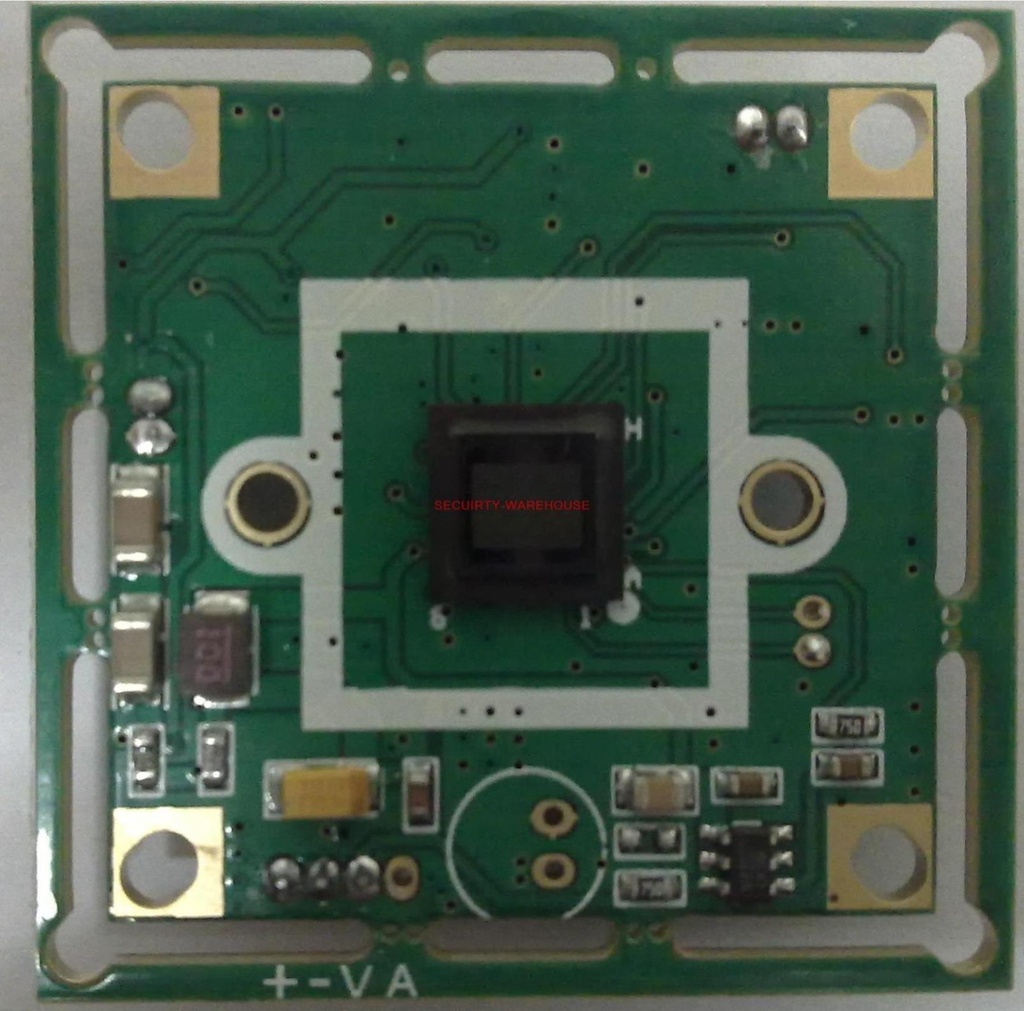

Product Physical Description:
Description: This program , including DSP, pictures for reference only , according to customer requirements, with the size of IR-CU
Product Features
1 machine with excellent performance , clear picture quality bright , CCD board layout nice
(2) Wide power supply design , you can work in a wide voltage range
3 green products, low current , low power consumption , energy saving
4 video lightning protection, anti -static dry flex circuit design - effectively resist outside pressure lightning , power surges and electrostatic
5 humanized board design - installed more flexible and convenient ( 38 * 38 32 * 32 rpm )
6 feature-rich interface, easy to build different types of cameras
7 quality sheet - PCB board selected Grade A sheet, thickness 1.6MM, durable
8 Each product through strict aging test, international brands of materials , creating product consistency , stability
Product Readme
|
Product Name
|
1/4 CMOS 700TVL CCD
Motherboard
|
||
|
Master
DSP
|
FH8510B
|
||
|
Signal System
Signal System
|
PAL
Standard
|
NTSC
Standard
|
|
|
Image sensor
|
Micron
ASX340/MT9V139
|
||
|
Horizontal resolution
|
700
Line
|
||
|
Minimum illumination
|
0.01LUX
|
||
|
Clear pixel sensor
|
728 (H)
×
520 (V)
|
||
|
Effective Pixels
|
PAL
:
720 (H)
×
576 (V)
|
NTSC
:
720 (H)
×
487 (V)
|
|
|
Effective pixel region
|
4.077mm
×
3.136mm
|
||
|
Frame rate
|
50 /60
Field
/
Second
|
||
|
Scan Mode
|
Progressive Scan
|
||
|
Automatic function
|
Exposure, white balance , black level offset correction , flicker detection and avoidance , color saturation control
Fast defect correction , aperture correction
|
||
|
Color filters
|
RGB
|
||
|
Shutter Type
|
Electronic rolling shutter
(ERS)
|
||
|
Analog gain range
|
0.5-16X
|
||
|
ADC
|
10
Position
|
||
|
Output Interface
|
Analog composite video output
|
||
|
Output Data Format
|
Digital, original
Bayer 8 -
,
10 -
Bit ,
CCIR656
,
565RGB
,
555RGB
,
444RGB
|
||
|
Data transfer rate
|
Parallel
: 27 MB / s
|
||
|
NTSC: 60
Field
/
Second
|
|||
|
PAL
:
50
Field
/
Second
|
|||
|
Input Clock
PLL
|
6 MHz
|
||
|
SPI
Clock frequency
|
1.6875 - 18MHz,
Programmable
|
||
|
Supply Voltage
|
Simulation
: DC12V
±
5%
|
||
|
Power consumption
|
Analog output: full resolution
60 fps: 236 mW
|
||
|
Digital output: full resolution
60 fps: 234 mW
|
|||
|
S / N
|
46 dB
|
||
|
Pixel dynamic range
|
74.8 dB
|
||
|
Operating Temperature
|
-20
~
+70
°
|
||
|
Storage Temperature
|
-50
~
+150
°
|
||
|
Dimensions
|
32 * 38 mm
|
||
