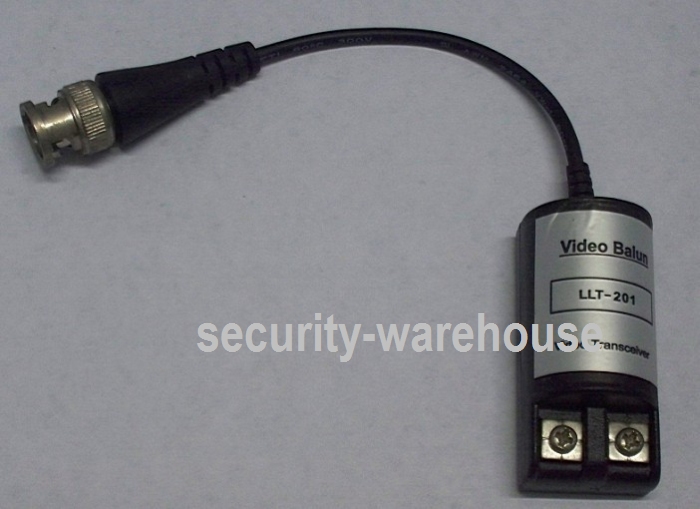

High quality 201 Passive 300 meters twisted pair Video Video Balun CCTV accessories twisted-pair Passive Video Balun
High quality 201 Passive 300 meters twisted pair Video Video Balun CCTV accessories twisted-pair Passive Video Balun
This product has no valid combination.
Twisted-pair cable is adopted to improve the image transmission, twisted pair cheap, soft, installation is convenient, save the project cost.LLT201 video is passive video image transmission, using twisted-pair to cosco distance real-time black and white/color image transmission installation is convenient, the maximum transmission distance is 600 m, with LLT - 301 / LLT401 / LLT1610 can transfer 1.6 KM.
| Specifications of the Spec | 1 ch Passive |
| Video Video | Frequency respons: DC - 6 MHZ Conmmon - mode/Differential - mode Rejection: 15 KHZ 6 MHZ 60 db typ |
| Audio data/Audio/data | no |
| Power supply Power | no |
| Input/output Impedance Impedance | Coax, male BNC: 75 Ω UTP (Screwless Terminal Block or UTP RJ45 Data Connector: 100 Ω |
| Line Wire type | 24-16 awg One Unshielded Twisted Pair (0.5 1.31 mm) Per video signal: DC Loop to hold 52 ohms Per 1000 ft (18 ohms Per 100 m) |
| Impact resistant Surge suppression | -- -- -- -- -- -- -- -- -- -- -- -- -- -- -- |
| Control of the Control | no |
| UTP Port | Terminal Block |
| Size Dimensions (mm) | 70 * 25 * 22 |
| Weigth in weight (g) | 28 |
| Using the Environment Environment | Temperature: - 10 ~ + 50 ° Humidity: 0 ~ 95% |
