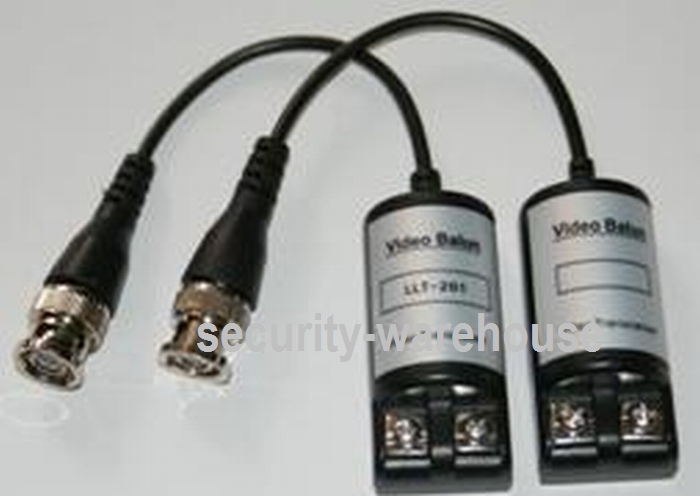

CCTV Passive Video Balun Passive twisted pair Video Balun 300 meters twisted pair Video Balun Video

https://www.security-warehouse.com/web/image/product.template/15412/image_1920?unique=62190e8

CCTV Passive Video Balun Passive twisted pair Video Balun 300 meters twisted pair Video Balun Video

This product has no valid combination.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

Product features:

Twisted-pair cable is adopted to improve the image transmission, twisted pair cheap, soft, installation is convenient, save the project cost.LLT201 video is passive video image transmission, using twisted-pair to cosco distance real-time black and white/color image transmission installation is convenient, the maximum transmission distance is 600 m, with LLT - 301 / LLT401 / LLT1610 can transfer 1.6 KM.

Product specifications:

Specifications of the Spec 1 ch Passive
Video Video Frequency respons: DC - 6 MHZ Conmmon - mode/Differential - mode Rejection: 15 KHZ 6 MHZ 60 db typ
Audio data/Audio/data no
Power supply Power no
Input/output Impedance Impedance Coax, male BNC: 75 Ω UTP (Screwless Terminal Block or UTP RJ45 Data Connector: 100 Ω
Line Wire type 24-16 awg One Unshielded Twisted Pair (0.5 1.31 mm) Per video signal: DC Loop to hold 52 ohms Per 1000 ft (18 ohms Per 100 m)
Impact resistant Surge suppression -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
Control of the Control no
UTP Port Terminal Block
Size Dimensions (mm) 70 * 25 * 22
Weigth in weight (g) 28
Using the Environment Environment Temperature: - 10 ~ + 50 ° Humidity: 0 ~ 95%
